Wiring diagram for Start/Stop engine - PE15.00-P-2103-97EAA

Code: Designation: Position:
A0 Color code key 88L
F25/1 Additional battery relay circuit 30 additional fuse 23L
F32 Front electrical prefuse box 3L
F32 Front electrical prefuse box 52L
F32 Front electrical prefuse box 60L
F32f152 Prefuse 152 1K
F32f156 Prefuse 156 2K
F32k1 Decoupling relay 51K
F63 Pyrofuse 48L
F97 Rear SAM control unit with fuse and relay module circuit 30 fuse 39L
G1 On-board electrical system battery 64L
G1/13 ECO start/stop function additional battery 26L
K114 ECO start/stop function additional battery relay 32L
K114 ECO start/stop function additional battery relay 36L
K57/2 Additional battery relay 29L
N10/1 Front SAM control unit with fuse and relay module 4A
N10/1 Front SAM control unit with fuse and relay module 11A
N10/1 Front SAM control unit with fuse and relay module 28A
N10/1 Front SAM control unit with fuse and relay module 20A
N10/1 Front SAM control unit with fuse and relay module 36A
N10/1 Front SAM control unit with fuse and relay module 52A
N10/1 Front SAM control unit with fuse and relay module 67A
N10/1 Front SAM control unit with fuse and relay module 79A
N10/1 Front SAM control unit with fuse and relay module 44A
N10/1 Front SAM control unit with fuse and relay module 60A
N10/1f18 Fuse 18 75A
N10/1kQ Oil cooler fan motor relay 77A
N10/2 Rear SAM control unit with fuse and relay module 44L
N10/2 Rear SAM control unit with fuse and relay module 75L
N3/10 ME-SFI [ME] control unit 8L
N3/10 ME-SFI [ME] control unit 15L
N3/9 CDI control unit 11L
N89 Transmission oil auxiliary pump control unit 79L
S62/42 Right engine hood contact switch 67L
S62/43 Left engine hood contact switch 69L
S62/43 Left engine hood contact switch 71L
U1018 Valid for gasoline engine 276 6G
U1019 Valid for gasoline engine 278 6H
U12 Valid for left-hand drive vehicles 24J
U12 Valid for left-hand drive vehicles 65G
U12 Valid for left-hand drive vehicles 67G
U13 Valid for right-hand drive vehicles 24J
U13 Valid for right-hand drive vehicles 71G
U13 Valid for right-hand drive vehicles 68G
U13 Valid for right-hand drive vehicles 65G
U23 Valid for convertibles 34H
U23 Valid for convertibles 57J
U23 Valid for convertibles 20H
U24 Valid for manual transmission 30H
U24 Valid for manual transmission 27H
U24 Valid for manual transmission 54J
U24 Valid for manual transmission 50J
U25 Valid for automatic transmission 73A
U25 Valid for automatic transmission 34H
U25 Valid for automatic transmission 57K
U362 Valid for gasoline engine 274 13G
U611 Valid for Coupe 17G
U611 Valid for Coupe 30H
U611 Valid for Coupe 27H
U611 Valid for Coupe 34H
U611 Valid for Coupe 57J
U611 Valid for Coupe 54K
U611 Valid for Coupe 50K
U611 Valid for Coupe 20G
U739 Valid for gasoline engine 271 DE 6G
U880 Valid for diesel engine 642 10G
U948 Valid for diesel engine 651 10G
V19 ECO start/stop function diode 58K
V19 ECO start/stop function diode 55K
W15/15 Left front end backup battery ground point 24L
W15/16 Right front end backup battery ground point 24L
W15/5 Left front footwell ground point 71H
W15/5 Left front footwell ground point 69H
W16/3 Left major assembly compartment ground point 66L
W16/4 Right wheelhouse ground point 66L
W16/4 Right wheelhouse ground point 67H
W7 Right wheelhouse trunk ground point 28H
W7 Right wheelhouse trunk ground point 32H
W7 Right wheelhouse trunk ground point 36H
W7/7 Right spare wheel well ground point 36H
X18 Vehicle interior and harness for taillamp electrical connector 75H
X225 Additional battery relay fuse electrical connector 18J

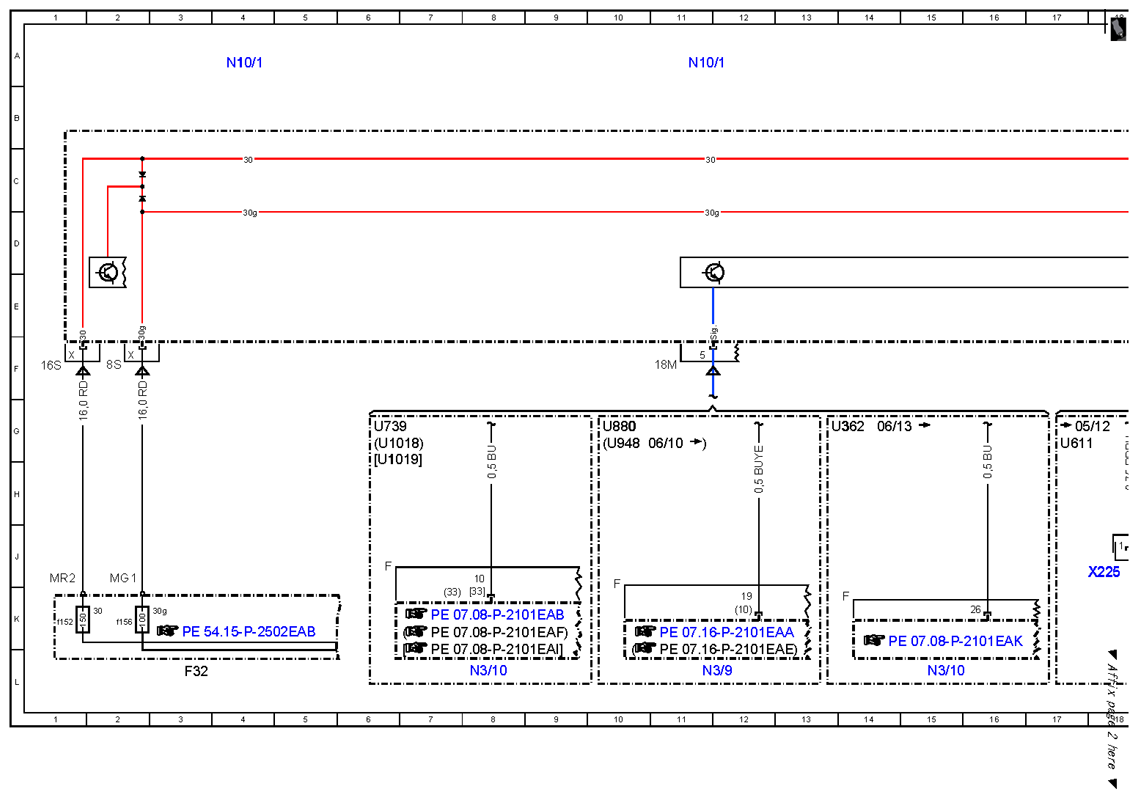

Fig 1: Start/Stop Engine - Wiring Diagram (1 Of 6)
G10082280Courtesy of MERCEDES-BENZ USA

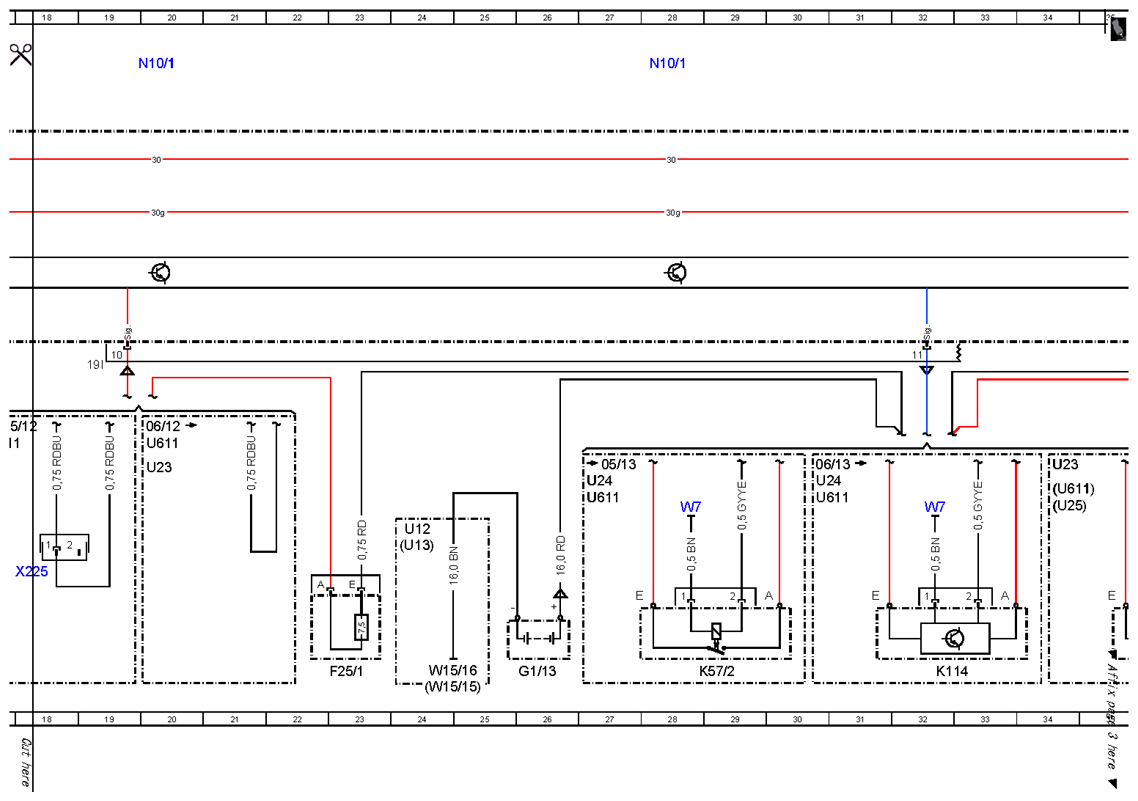

Fig 2: Start/Stop Engine - Wiring Diagram (2 Of 6)
G10082281Courtesy of MERCEDES-BENZ USA

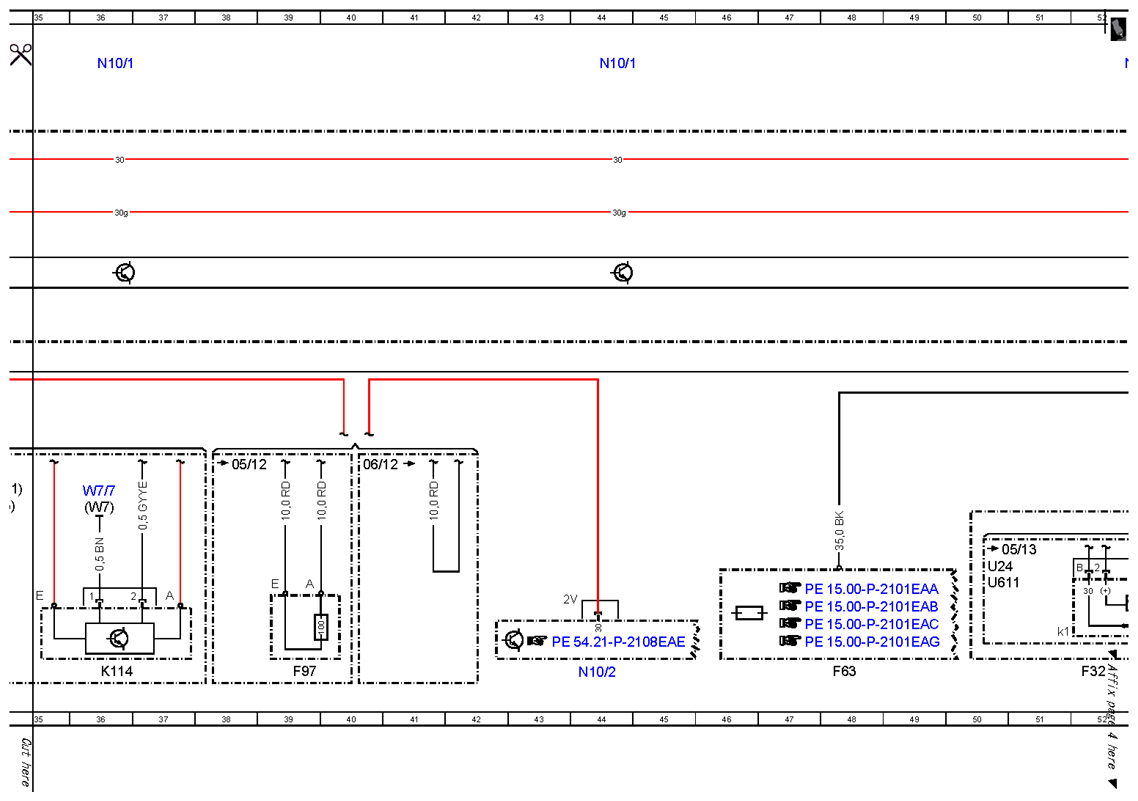

Fig 3: Start/Stop Engine - Wiring Diagram (3 Of 6)
G10082282Courtesy of MERCEDES-BENZ USA

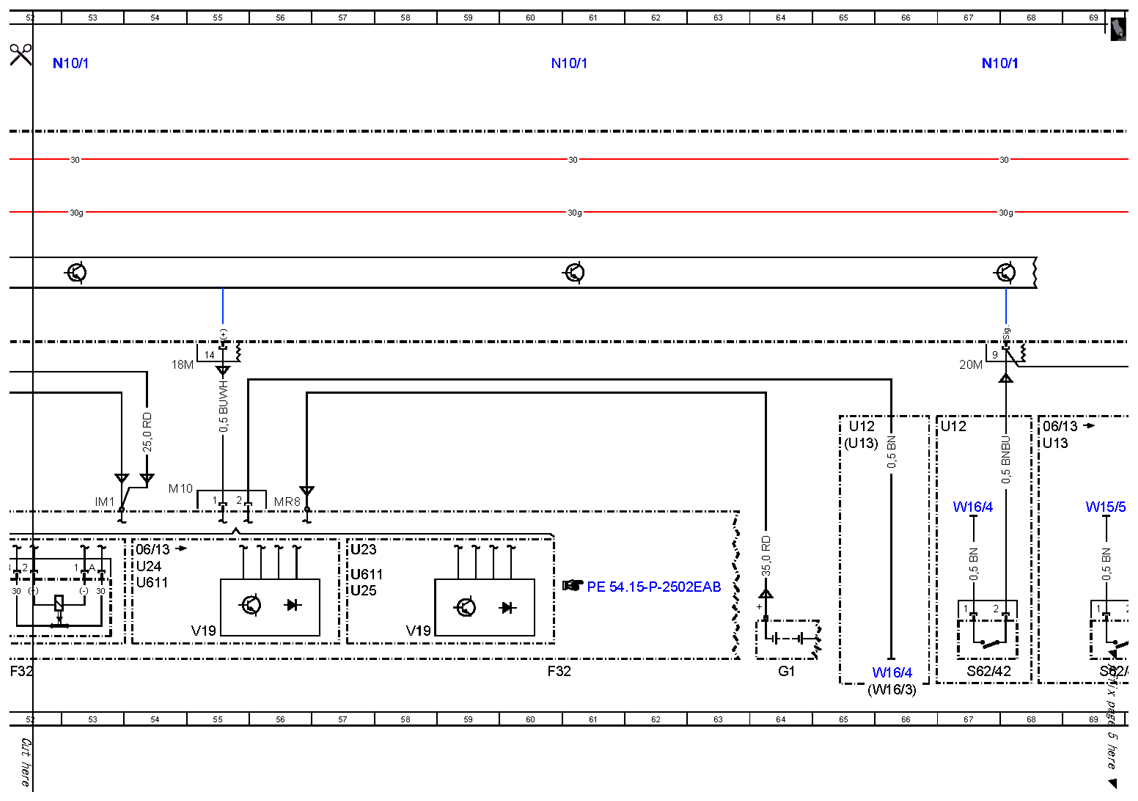

Fig 4: Start/Stop Engine - Wiring Diagram (4 Of 6)
G10082283Courtesy of MERCEDES-BENZ USA

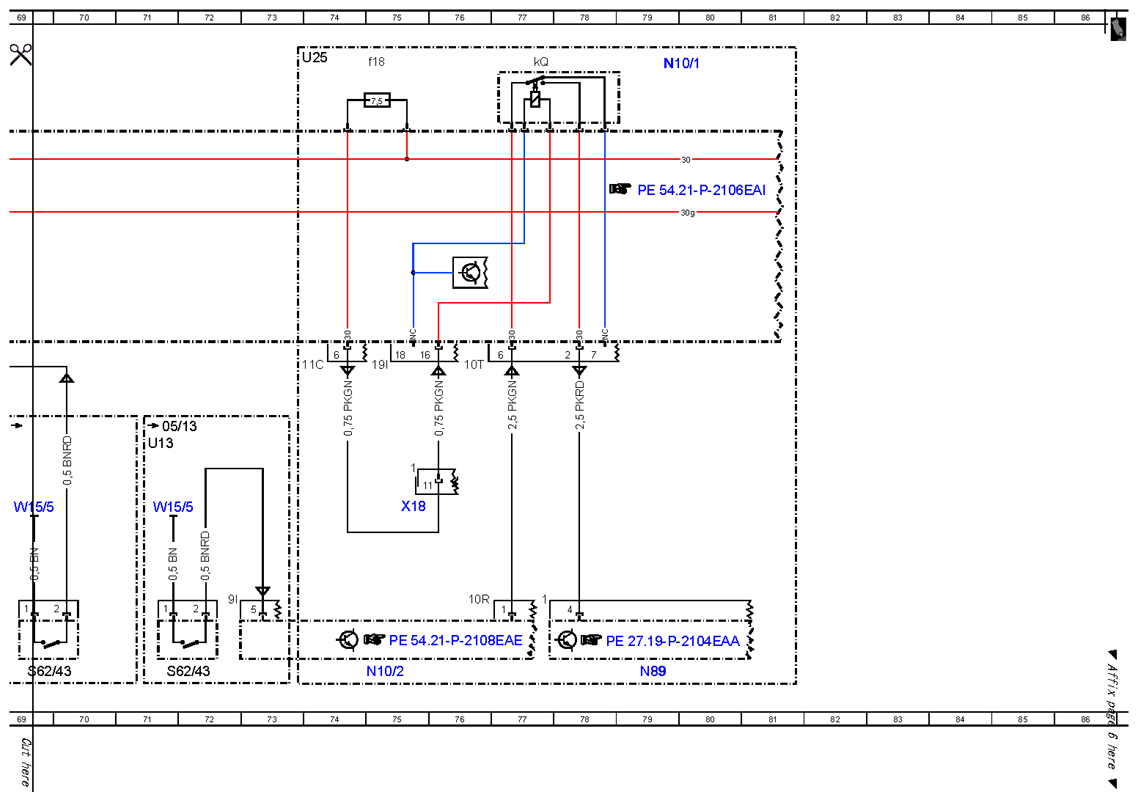

Fig 5: Start/Stop Engine - Wiring Diagram (5 Of 6)
G10082284Courtesy of MERCEDES-BENZ USA

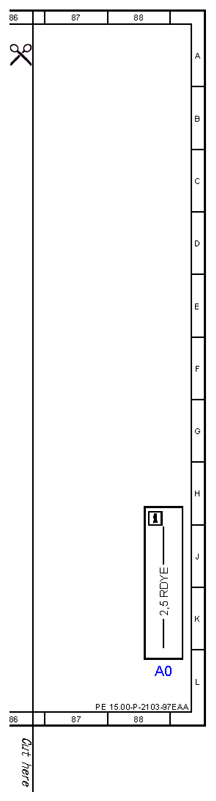

Fig 6: Start/Stop Engine - Wiring Diagram (6 Of 6)
G10082285Courtesy of MERCEDES-BENZ USA
