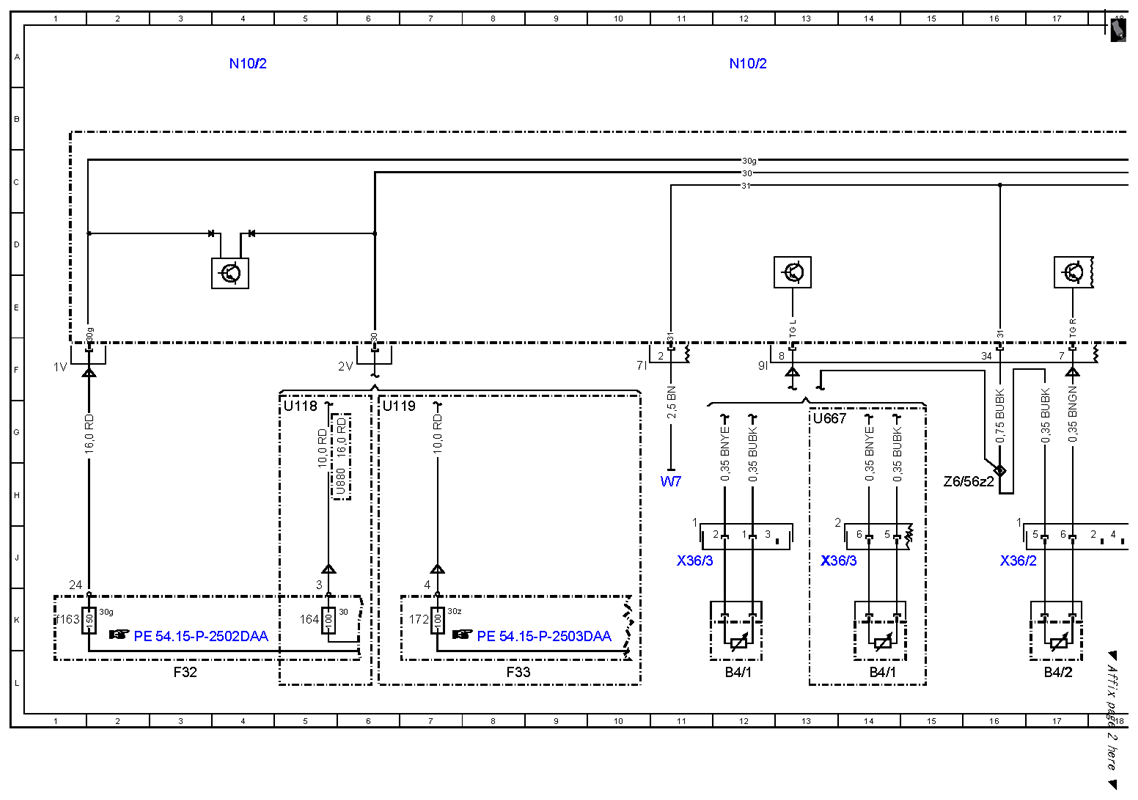

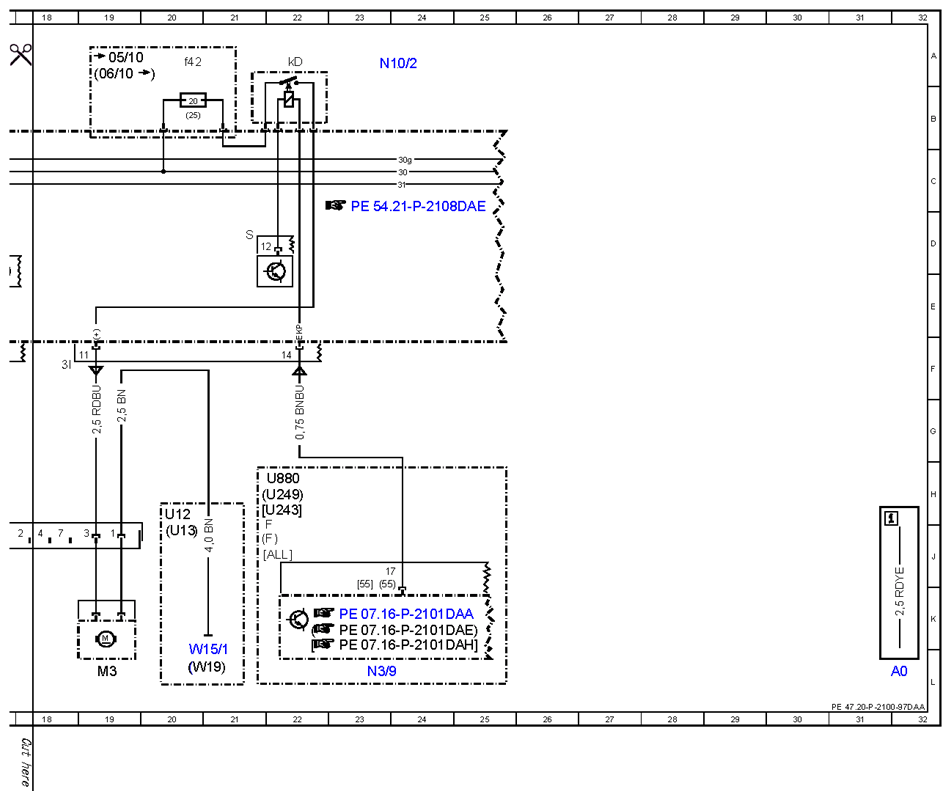

Wiring diagram for fuel pump - PE47.20-P-2100-97DAA
ENGINE 642, 651 in MODEL 212 Vehicles without control unit, N118
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| B4/1 | Left fuel level indicator sensor | 12L |
| B4/1 | Left fuel level indicator sensor | 14L |
| B4/2 | Right fuel level indicator sensor | 17L |
| F32 | Front electrical prefuse box | 3L |
| F32f163 | Prefuse 163 | 24k |
| F32f164 | Prefuse 164 | 5K |
| F33 | Rear prefuse box | 8L |
| F33f172 | Prefuse 172 | 7K |
| M3 | Fuel pump (FP) | 19L |
| N10/2 | Rear SAM control unit with fuse and relay module | 12A |
| N10/2 | Rear SAM control unit with fuse and relay module | 4A |
| N10/2 | Rear SAM control unit with fuse and relay module | 23A |
| N10/2f42 | Fuse 42 | 20A |
| N10/2kD | Fuel pump relay | 22A |
| N3/9 | CDI control unit | 23L |
| U118 | Valid for front battery | 5G |
| U119 | Valid for rear battery | 6G |
| U12 | Valid for left-hand drive vehicles | 20H |
| U13 | Valid for right-hand drive vehicles | 20J |
| U243 | Valid for diesel engine 651 with all-wheel drive | 21H |
| U249 | Valid for diesel engine 651 without all-wheel drive | 21H |
| U667 | Valid for California | 13G |
| U880 | Valid for diesel engine 642 | 22H |
| W15/1 | Right footwell ground point | 20L |
| W19 | Right front seat crossmember ground point | 20L |
| W7 | Right rear wheel well ground point | 11H |
| X36/2 | Fuel pump and vehicle rear wiring harness electrical connector | 16J |
| X36/3 | Fuel pump harness electrical connector | 11J |
| X36/3 | Fuel pump harness electrical connector | 14J |
| Z6/56z2 | Circuit 31 connector sleeve | 16H |
