Component description for Audio/COMAND display - GF54.30-P-6150CAN

MODEL 207 as of 3/2/15 as of model year 2016

Shown on model 207.3

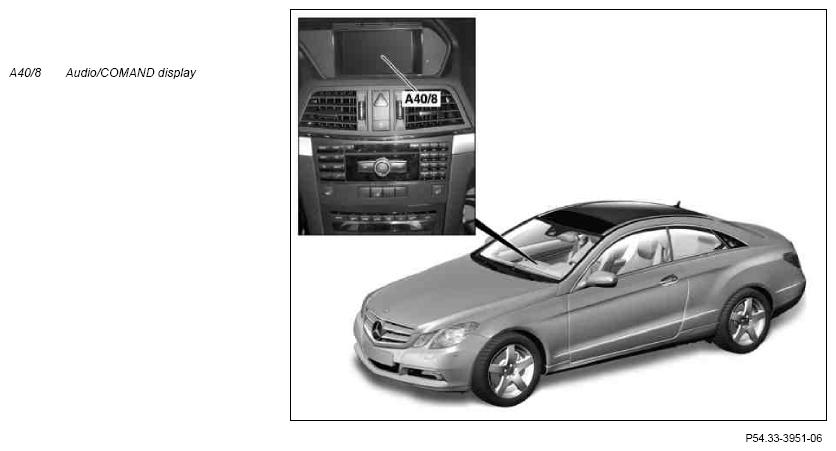

Fig 1: Identifying Audio/Command Display - Shown On Model 207.3

Courtesy of MERCEDES-BENZ USA

Location

The Audio/COMAND display is fitted to the top center of the instrument panel.

Tasks

The Audio/COMAND display provides a uniform display of user-related operating and information windows and video images.

The Audio/COMAND display receives the following signals:

• Terminal 30g and terminal 31
• Control signals (e.g. switching on) via telematics CAN (CAN A) from the audio equipment
• Picture signals over the low voltage differential signaling (LVDS) interface from the audio equipment

The Audio/COMAND display evaluates the input factors in the integrated microprocessor and actuates the color screen.

Body

The Audio/COMAND display has the following characteristics:

• Fixed 7" display
• 800X480 pixel resolution
• Format 15:9
• 8 bits per color
• High-bandwidth Digital Content Protection (HDCP) is supported.
