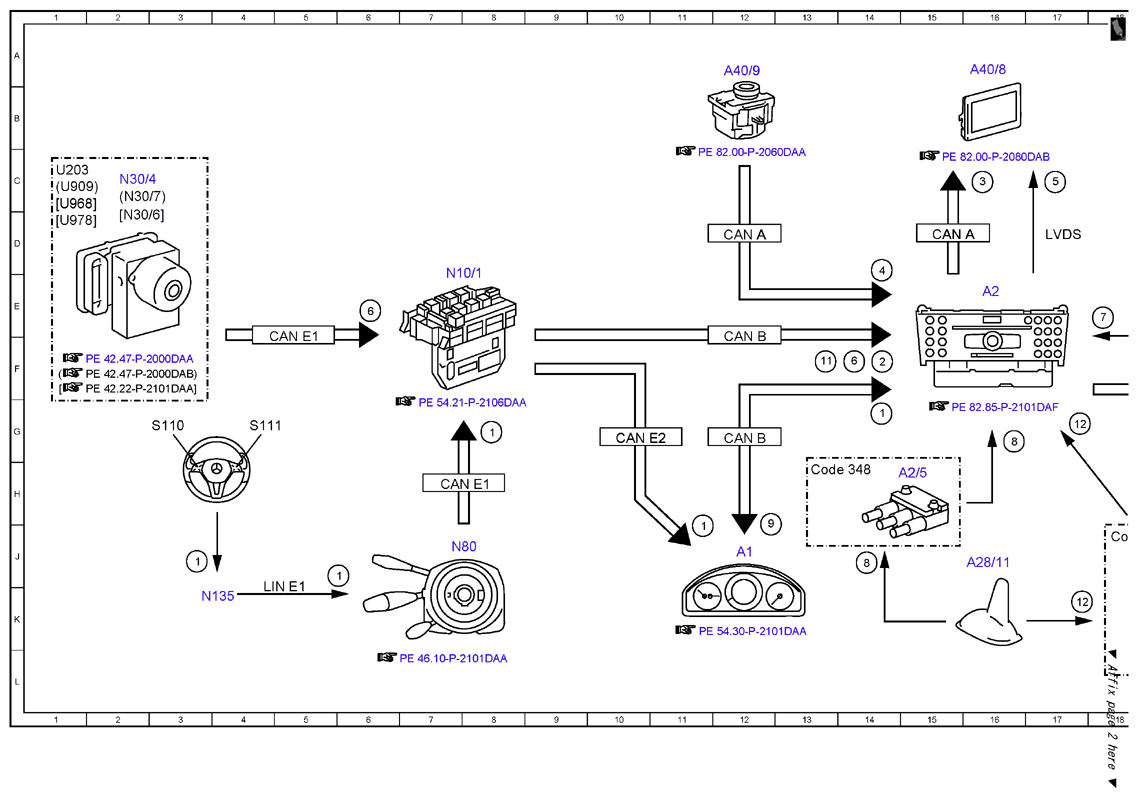

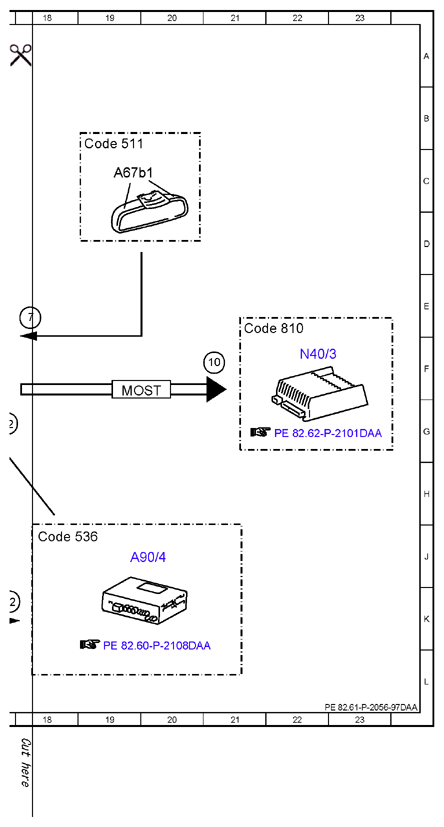

Electrical function schematic for navigation system function - PE82.61-P-2056-97DAA
MODEL 212 with CODE 357 (SD card navigation)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Multifunction steering wheel button group, signal | 5J |
| 1 | Multifunction steering wheel button group, signal | 8G |
| 1 | Multifunction steering wheel button group, signal | 14G |
| 1 | Multifunction steering wheel button group, signal | 3J |
| 1 | Multifunction steering wheel button group, signal | 11J |
| 10 | Sound system amplifier, actuation | 21F |
| 11 | Reverse gear, status | 13F |
| 12 | RTTD signal | 17K |
| 12 | RTTD signal | 17G |
| 2 | Wake-up, signal | 14F |
| 3 | Switch-on request, signal | 16C |
| 4 | Audio/COMAND controller, request | 14D |
| 5 | Audio applications, signal | 17C |
| 6 | Wheel speed, signal | 14F |
| 6 | Wheel speed, signal | 6E |
| 7 | Voice input, signal | 18E |
| 8 | GPS, signal | 16G |
| 8 | GPS, signal | 14J |
| 9 | Instrument cluster, message | 12J |
| A1 | Instrument cluster | 12J |
| A2 | Radio | 16E |
| A2/5 | Global positioning system antenna splitter | 15H |
| A28/11 | Multifunction antenna | 16J |
| A40/8 | Audio/COMAND display | 16A |
| A40/9 | Audio/COMAND control panel | 12A |
| A67b1 | Hands-free system microphone | 19C |
| A90/4 | Tuner unit | 19J |
| CAN A | Telematics CAN | 12D |
| CAN A | Telematics CAN | 15D |
| CAN B | Interior CAN | 12G |
| CAN B | Interior CAN | 12F |
| CAN E1 | Chassis CAN 1 | 7H |
| CAN E1 | Chassis CAN 1 | 5F |
| CAN E2 | Chassis CAN 2 | 10G |
| Code 348 | Emergency call/assistance system | 13H |
| Code 511 | Audio 50 APS incl. DVD changer | 19B |
| Code 536 | SIRIUS satellite radio | 18J |
| Code 810 | Sound system | 21E |
| LIN E1 | Steering LIN | 4K |
| LVDS | Low voltage differential signal | 17D |
| MOST | Media Oriented System Transport | 19F |
| N10/1 | Front SAM control unit with fuse and relay module | 7E |
| N135 | Steering wheel electronics | 3K |
| N30/4 | Electronic Stability Program control unit | 2C |
| N30/6 | Regenerative braking system control unit | 2D |
| N30/7 | Premium Electronic Stability Program control unit | 2C |
| N40/3 | Sound system amplifier control unit | 22F |
| N80 | Steering column module control unit | 7J |
| S110 | Left multifunction steering wheel button group | 3G |
| S111 | Right multifunction steering wheel button group | 4G |
| U203 | Valid without DISTRONIC PLUS | 1C |
| U909 | Valid for DISTRONIC PLUS | 1C |
| U968 | Valid for mild hybrid drive | 1C |
| U978 | Valid for full hybrid drive | 1D |
