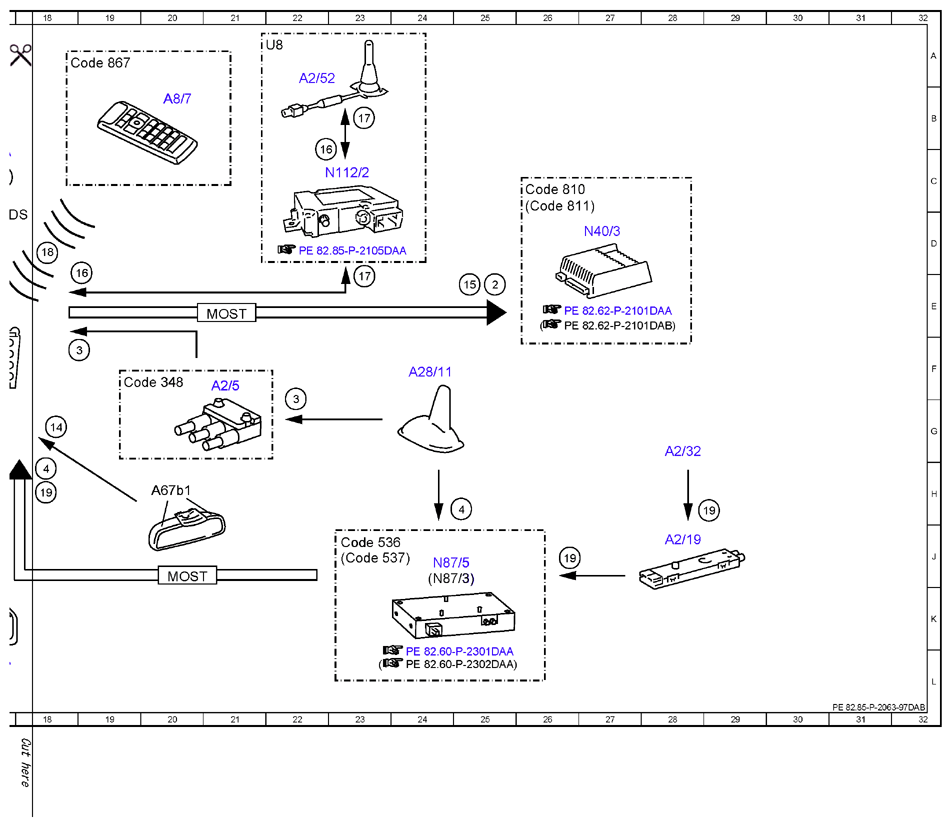

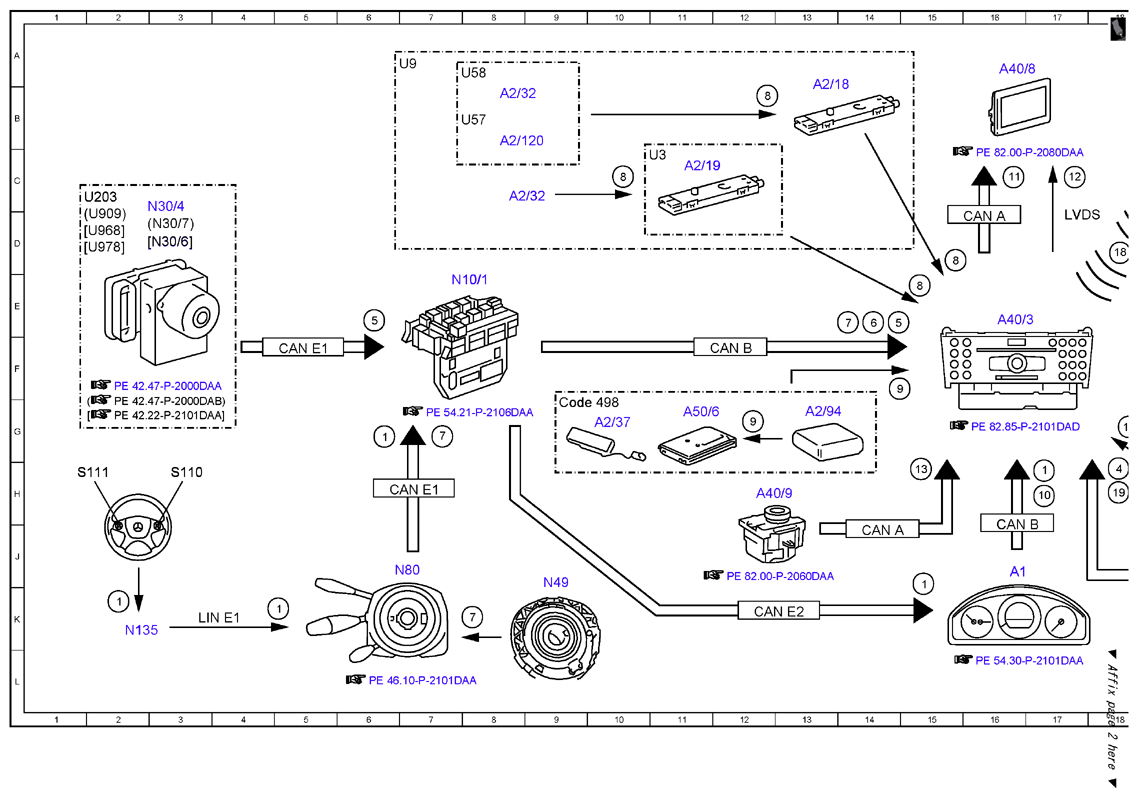

Electrical function diagram for navigation mode (COMAND), function - PE82.85-P-2063-97DAB
MODEL 212 as of 3/1/13 up to 3/1/15 up to model year 2016 with CODE 512 (COMAND APS)
MODEL 212 as of 3/1/13 up to 3/1/15 up to model year 2016 with CODE 527 (COMAND APS with single DVD drive (with navigation))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Multifunction steering wheel button group, signal | 5K |
| 1 | Multifunction steering wheel button group, signal | 15K |
| 1 | Multifunction steering wheel button group, signal | 17H |
| 1 | Multifunction steering wheel button group, signal | 2K |
| 1 | Multifunction steering wheel button group, signal | 6G |
| 10 | Vehicle speed, signal | 17H |
| 11 | Switch-on request, signal | 16C |
| 12 | Audio/COMAND display, message | 17C |
| 13 | Audio/COMAND controller, request | 15H |
| 14 | Voice input, signal | 18G |
| 15 | Sound system amplifier, actuation | 25E |
| 16 | Traffic data, signal | 22C |
| 16 | Traffic data, signal | 19E |
| 17 | Position data, signal | 23B |
| 17 | Position data, signal | 23E |
| 18 | Operation, signal | 18D |
| 19 | DAB band III, signal | 18H |
| 19 | DAB band III, signal | 26J |
| 19 | DAB band III, signal | 29H |
| 2 | Speaker, actuation | 25E |
| 3 | GPS, signal | 18F |
| 3 | GPS, signal | 22G |
| 4 | RTTD signal | 25H |
| 4 | RTTD signal | 18H |
| 5 | Wheel speed, signal | 6E |
| 5 | Wheel speed, signal | 14E |
| 6 | Direction of travel, signal | 14E |
| 7 | Steering angle sensor, signal | 7G |
| 7 | Steering angle sensor, signal | 8K |
| 7 | Steering angle sensor, signal | 14E |
| 8 | FM antenna, signal | 15E |
| 8 | FM antenna, signal | 15D |
| 8 | FM antenna, signal | 10C |
| 8 | FM antenna, signal | 12B |
| 9 | VICS, signal | 14F |
| 9 | VICS, signal | 12G |
| A1 | Instrument cluster | 16J |
| A2/120 | Right rear side window antenna | 8B |
| A2/18 | FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier | 13B |
| A2/19 | FM 2 and DAB antenna amplifier | 11C |
| A2/19 | FM 2 and DAB antenna amplifier | 28J |
| A2/32 | Rear window antenna | 8C |
| A2/32 | Rear window antenna | 8B |
| A2/32 | Rear window antenna | 28G |
| A2/37 | VICS control unit | 10G |
| A2/5 | Global positioning system antenna splitter | 21F |
| A2/52 | Emergency call system antenna | 22A |
| A2/94 | ETC/DSRC antenna | 13G |
| A28/11 | Multifunction antenna | 24F |
| A40/3 | COMAND control unit | 16E |
| A40/8 | Audio/COMAND display | 16A |
| A40/9 | Audio/COMAND control panel | 12H |
| A50/6 | Dedicated Short-Range Communications control unit | 11G |
| A67b1 | Hands-free system microphone | 20H |
| A8/7 | Remote control | 20B |
| CAN A | Telematics CAN | 16D |
| CAN A | Telematics CAN | 14J |
| CAN B | Interior CAN | 16J |
| CAN B | Interior CAN | 12F |
| CAN E1 | Chassis CAN 1 | 7H |
| CAN E1 | Chassis CAN 1 | 5F |
| CAN E2 | Chassis CAN 2 | 12K |
| Code 348 | Emergency call/assistance system | 19F |
| Code 498 | Japan version | 9G |
| Code 536 | SIRIUS satellite radio | 23J |
| Code 537 | Digital radio | 23J |
| Code 810 | Sound system | 26C |
| Code 811 | Extended sound system | 26C |
| Code 867 | SPLITVIEW | 18A |
| LIN E1 | Steering LIN | 3K |
| LVDS | Low voltage differential signal | 17D |
| MOST | Media Oriented System Transport | 21E |
| MOST | Media Oriented System Transport | 20J |
| N10/1 | Front SAM control unit with fuse and relay module | 7E |
| N112/2 | Telematics services communication module | 23C |
| N135 | Steering wheel electronics | 2K |
| N30/4 | Electronic Stability Program control unit | 2C |
| N30/6 | Regenerative braking system control unit | 2D |
| N30/7 | Premium Electronic Stability Program control unit | 2D |
| N40/3 | Sound system amplifier control unit | 27D |
| N49 | Steering angle sensor | 9J |
| N80 | Steering column module control unit | 6J |
| N87/3 | Digital Audio Broadcasting control unit | 24J |
| N87/5 | Satellite digital audio radio (SDAR) control unit | 24J |
| S110 | Left multifunction steering wheel button group | 3H |
| S111 | Right multifunction steering wheel button group | 1H |
| U203 | Valid without DISTRONIC PLUS | 1C |
| U3 | Valid for all except Japan | 10C |
| U57 | Valid for model 212.2 | 7B |
| U58 | Valid for model 212.0/1 | 7A |
| U8 | Valid for code B54 COM module and subscription for real-time traffic data | 21A |
| U9 | Not valid for code B54 COM module and subscription for real-time traffic data | 6A |
| U909 | Valid for DISTRONIC PLUS | 1D |
| U968 | Valid for mild hybrid drive | 1D |
| U978 | Valid for full hybrid drive | 1D |
