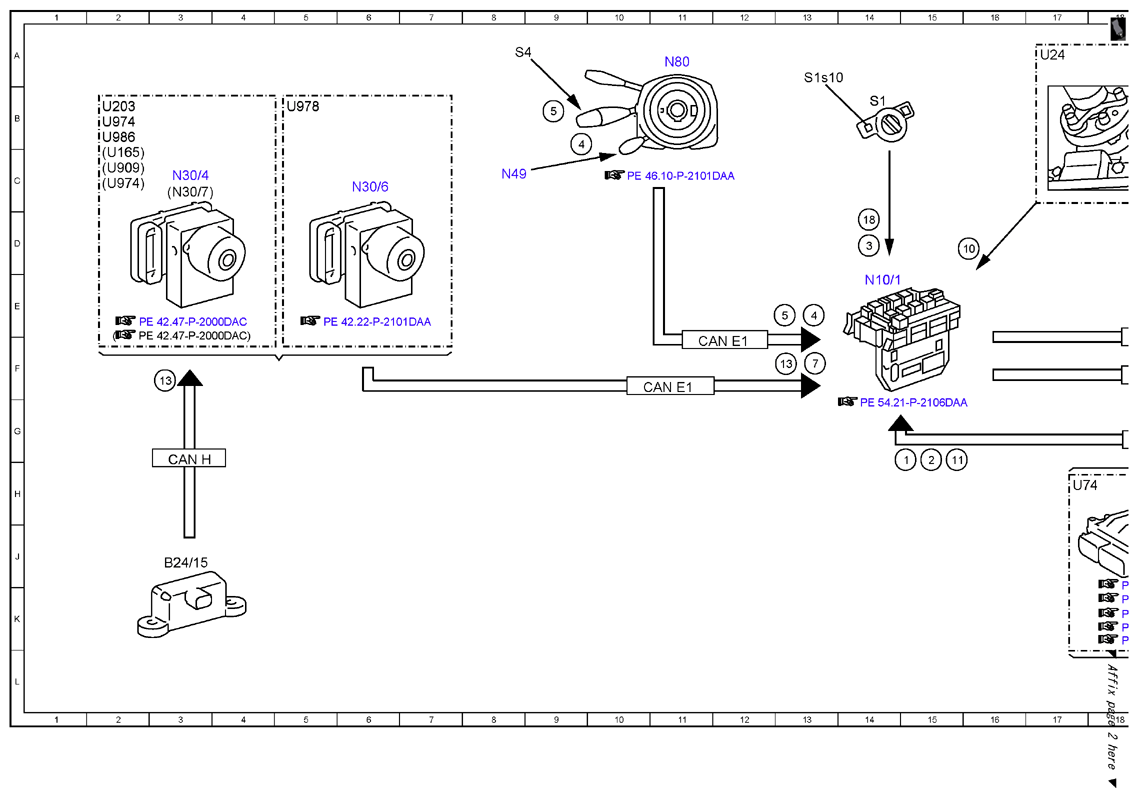

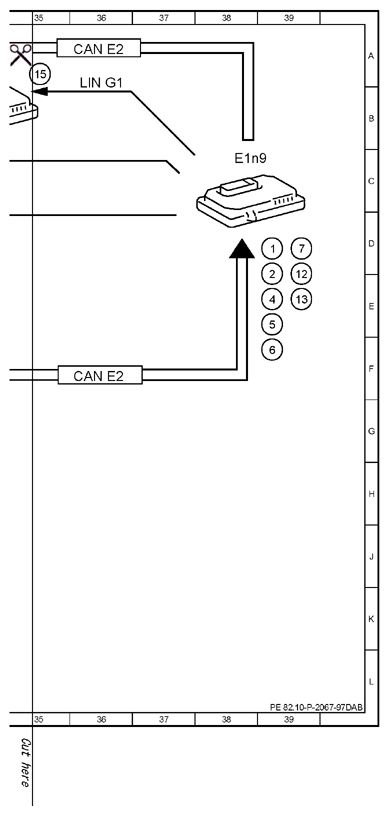

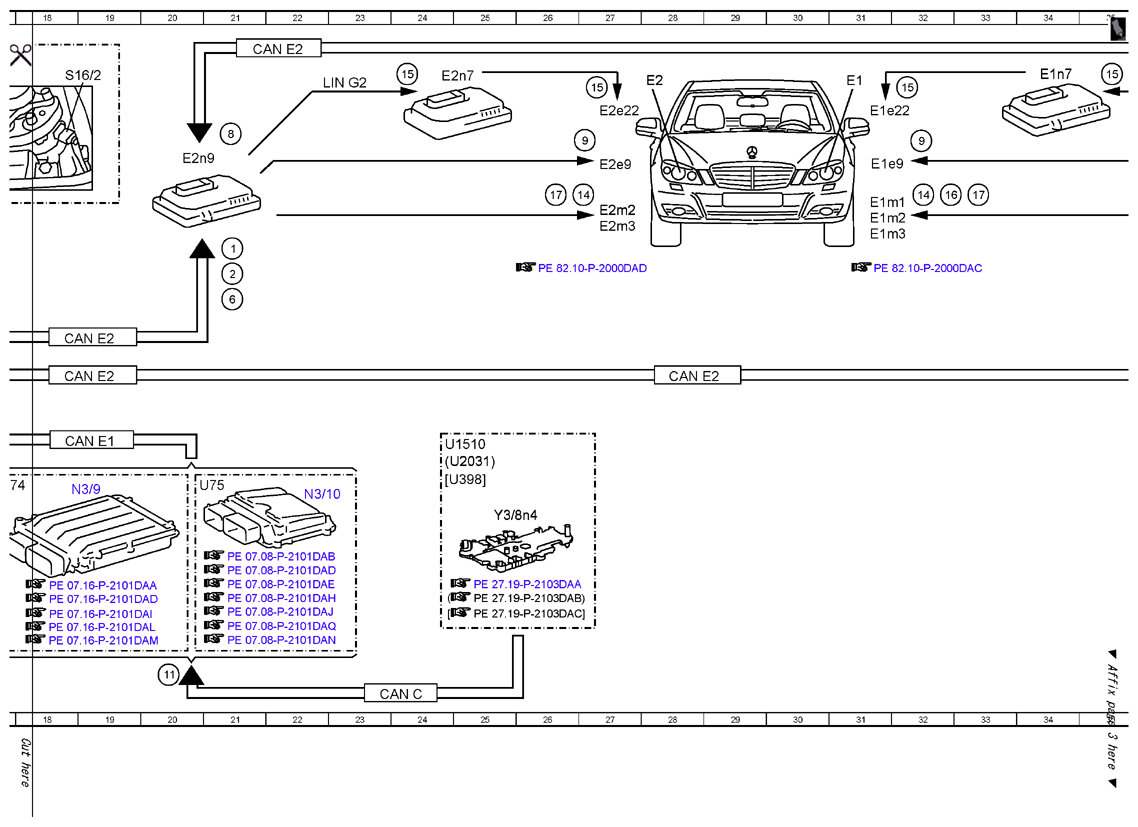

Function schematic for Intelligent Light System - PE82.10-P-2067-97DAB
MODEL 212 as of model year 2014 with CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic)
MODEL 212 as of model year 2014 with CODE 641 (Headlamps, LED, dynamic, left-side traffic)
MODEL 212 as of model year 2014 with CODE 642 (Headlamps, LED, dynamic, right-side traffic)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 15H |
| 1 | Engine running, signal | 21D |
| 1 | Engine running, signal | 39D |
| 10 | Backup lamp switch, status | 16D |
| 11 | Gear range, status | 15H |
| 11 | Gear range, status | 20L |
| 12 | Reverse gear, status | 39E |
| 13 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 3F |
| 13 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 13F |
| 13 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 39E |
| 14 | Active curve illumination actuator motor, actuation | 27C |
| 14 | Active curve illumination actuator motor, actuation | 32C |
| 15 | Front lamp unit Vario LED, actuation | 35A |
| 15 | Front lamp unit Vario LED, actuation | 32B |
| 15 | Front lamp unit Vario LED, actuation | 27A |
| 15 | Front lamp unit Vario LED, actuation | 24A |
| 16 | Headlamp range adjustment actuator motor, actuation | 32C |
| 17 | Light distribution actuator motor, actuation | 33C |
| 17 | Light distribution actuator motor, actuation | 26C |
| 18 | Rear fog light button, status | 14D |
| 2 | Drivetrain operational, signal | 15H |
| 2 | Drivetrain operational, signal | 21E |
| 2 | Drivetrain operational, signal | 39E |
| 3 | Exterior lights switch, status | 14D |
| 4 | Steering angle sensor, signal | 9B |
| 4 | Steering angle sensor, signal | 39E |
| 4 | Steering angle sensor, signal | 13E |
| 5 | Combination switch, status | 9B |
| 5 | Combination switch, status | 13E |
| 5 | Combination switch, status | 39E |
| 6 | Low beams, request | 21E |
| 6 | Low beams, request | 39F |
| 7 | Wheel speed, signal | 13F |
| 7 | Wheel speed, signal | 39D |
| 8 | Synchronization, signal | 21B |
| 9 | Cornering illumination, actuation | 32B |
| 9 | Cornering illumination, actuation | 27B |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 3J |
| CAN C | Drive train CAN | 24L |
| CAN E1 | Chassis CAN 1 | 11F |
| CAN E1 | Chassis CAN 1 | 19G |
| CAN E1 | Chassis CAN 1 | 11F |
| CAN E2 | Chassis CAN 2 | 19F |
| CAN E2 | Chassis CAN 2 | 19F |
| CAN E2 | Chassis CAN 2 | 28F |
| CAN E2 | Chassis CAN 2 | 36F |
| CAN E2 | Chassis CAN 2 | 22A |
| CAN E2 | Chassis CAN 2 | 36A |
| CAN H | Vehicle dynamics CAN | 3H |
| E1 | Left front lamp unit | 31A |
| E1e22 | Left front Vario-LED lamp unit | 31B |
| E1e9 | Left cornering illumination | 31C |
| E1m1 | Left headlamp range adjustment actuator motor | 31C |
| E1m2 | Left active curve illumination actuator motor | 31D |
| E1m3 | Left light distribution actuator motor | 31D |
| E1n7 | Actuation module for left front exterior lights LED | 34A |
| E1n9 | Left headlamp control unit | 38C |
| E2 | Right front lamp unit | 28A |
| E2e22 | Right front Vario-LED lamp unit | 27B |
| E2e9 | Right cornering illumination | 27C |
| E2m2 | Right active curve illumination actuator motor | 27D |
| E2m3 | Right light distribution actuator motor | 27D |
| E2n7 | Actuation module for right front exterior lights LED | 24A |
| E2n9 | Right headlamp control unit | 20C |
| LIN G1 | Left headlamp LIN | 36B |
| LIN G2 | Right headlamp LIN | 23B |
| N10/1 | Front SAM control unit with fuse and relay module | 14E |
| N3/10 | ME-SFI [ME] control unit | 22H |
| N3/9 | CDI control unit | 18H |
| N30/4 | Electronic Stability Program control unit | 3C |
| N30/6 | Regenerative braking system control unit | 6C |
| N30/7 | Premium Electronic Stability Program control unit | 3C |
| N49 | Steering angle sensor | 8C |
| N80 | Steering column module control unit | 11A |
| S1 | Exterior lights switch | 14B |
| S16/2 | Backup lamp switch | 18A |
| S1s10 | Rear fog light button | 13A |
| S4 | Combination switch | 8A |
| U1510 | Valid for transmission 722.9 | 24G |
| U165 | Valid for AMG | 2C |
| U203 | Valid without DISTRONIC PLUS | 2B |
| U2031 | Valid for transmission 724 | 24H |
| U24 | Valid for manual transmission | 17A |
| U398 | Valid for transmission 725 (NAG3) | 24H |
| U74 | Valid for diesel engines | 17H |
| U75 | Valid for gasoline engines | 20H |
| U909 | Valid for DISTRONIC PLUS | 2C |
| U974 | Not valid for full hybrid drive | 2B |
| U974 | Not valid for full hybrid drive | 2C |
| U978 | Valid for full hybrid drive | 5B |
| U986 | Not valid for AMG | 2B |
| Y3/8n4 | Fully integrated transmission control unit | 25H |
