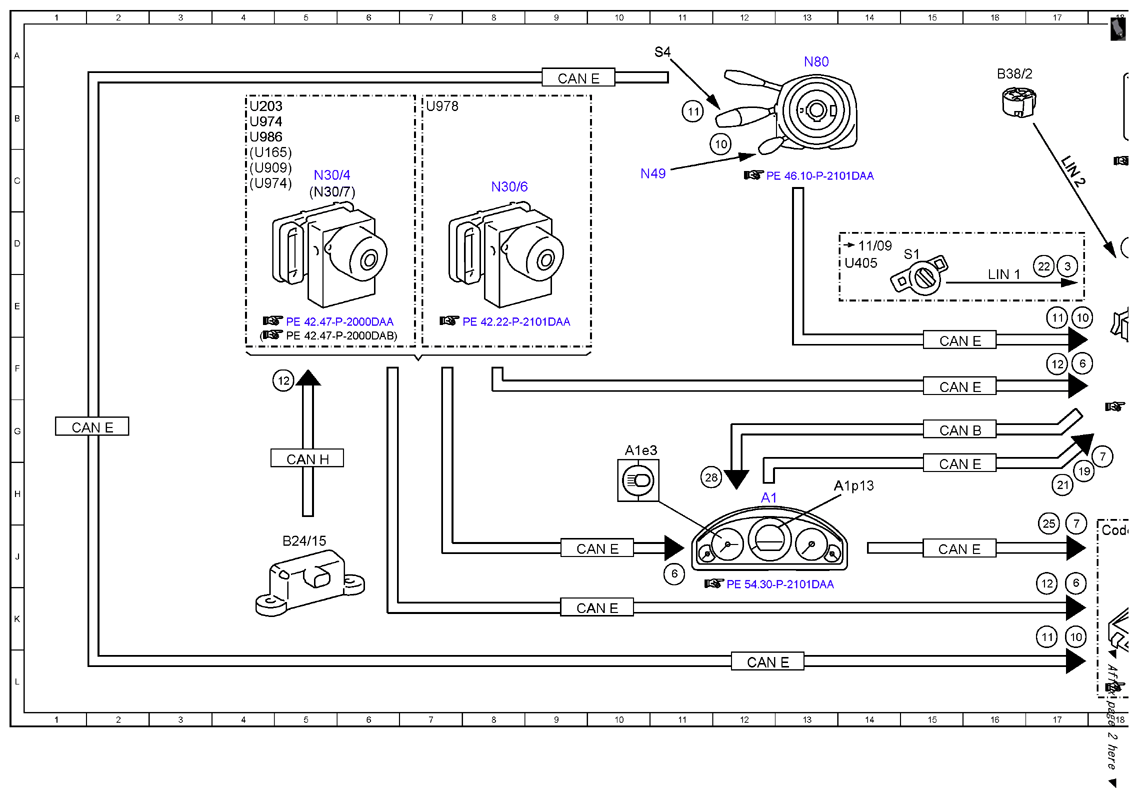

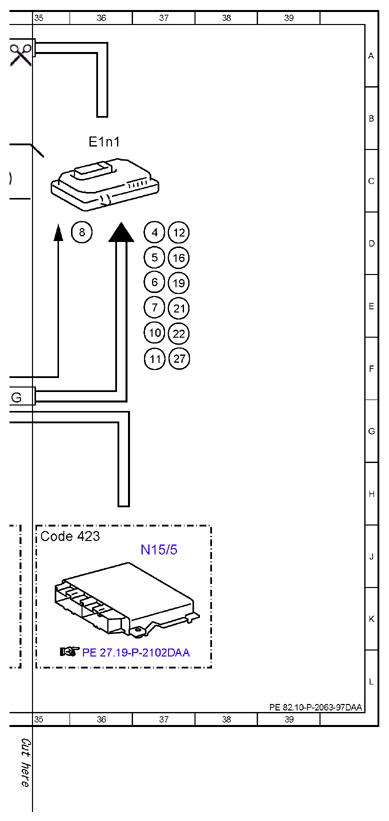

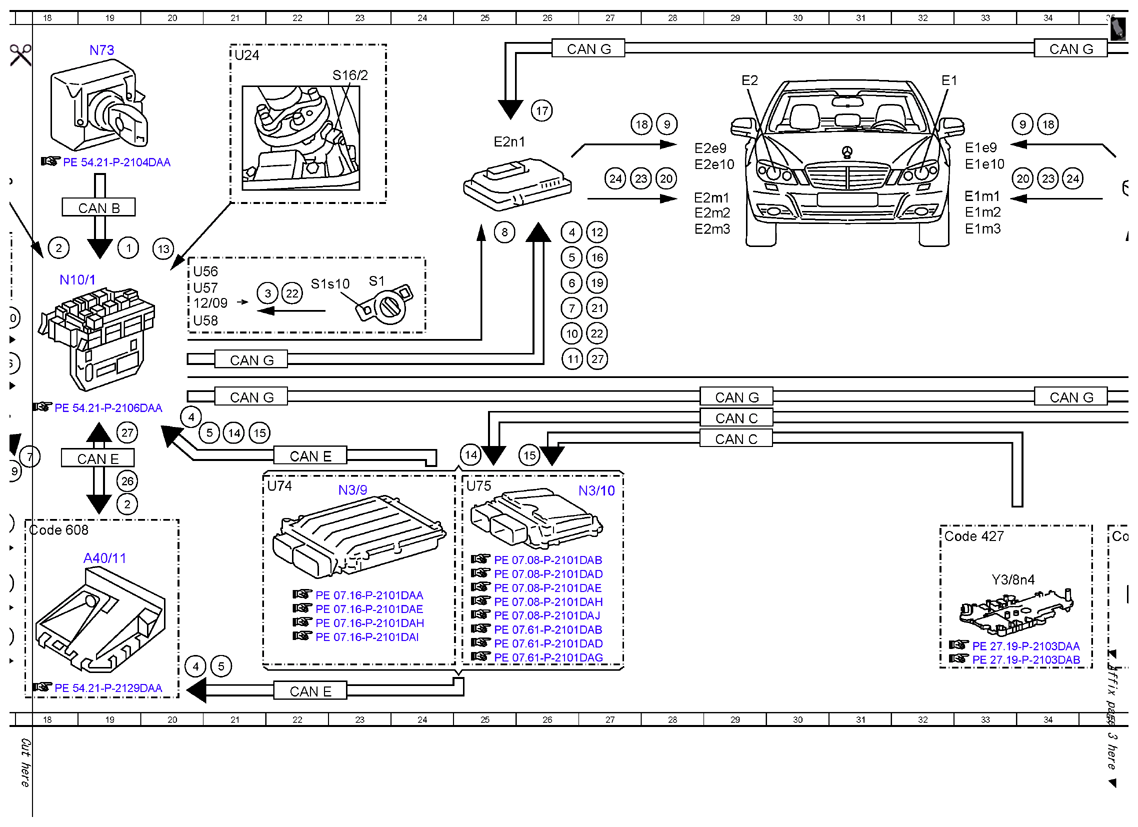

Electrical function schematic, additional functions, driving lights actuation - PE82.10-P-2063-97DAA
MODEL 212.0 /2 up to 28.2.13
with CODE (608) Adaptive Highbeam Assist
with CODE (615) Bi-xenon headlamp unit with integrated curve illumination
with CODE (616) Bi-xenon headlamp unit with integrated asymmetric curve illumination
with CODE (621) Intelligent Light System (left-hand traffic)
with CODE (622) Intelligent Light System (right-hand traffic)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 19D |
| 10 | Steering angle, signal | 17E |
| 10 | Steering angle, signal | 12B |
| 10 | Steering angle, signal | 26F |
| 10 | Steering angle, signal | 17K |
| 10 | Steering angle, signal | 37E |
| 11 | Combination switch, status | 11B |
| 11 | Combination switch, status | 17E |
| 11 | Combination switch, status | 17K |
| 11 | Combination switch, status | 26F |
| 11 | Combination switch, status | 37F |
| 12 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 17K |
| 12 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 5F |
| 12 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 17F |
| 12 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 27D |
| 12 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 37D |
| 13 | Backup lamp switch, status | 20D |
| 14 | Selector lever position, status | 25G |
| 14 | Selector lever position, status | 21G |
| 15 | Gear range, status | 26G |
| 15 | Gear range, status | 21G |
| 16 | Reverse gear, status | 27D |
| 16 | Reverse gear, status | 37D |
| 17 | Synchronization, signal | 26B |
| 18 | Cornering illumination, actuation | 27B |
| 18 | Cornering illumination, actuation | 34B |
| 19 | Active curve illumination, request | 27E |
| 19 | Active curve illumination, request | 17H |
| 19 | Active curve illumination, request | 37E |
| 2 | Rain/light sensor, status | 18D |
| 2 | Rain/light sensor, status | 19H |
| 20 | Active curve illumination actuator motor, actuation | 28C |
| 20 | Active curve illumination actuator motor, actuation | 34C |
| 21 | Intelligent Light System, status | 27E |
| 21 | Intelligent Light System, status | 17H |
| 21 | Intelligent Light System, status | 37E |
| 22 | Rear fog light, request | 17D |
| 22 | Rear fog light, request | 27F |
| 22 | Rear fog light, request | 22E |
| 22 | Rear fog light, request | 37F |
| 23 | Light distribution actuator motor, actuation | 34C |
| 23 | Light distribution actuator motor, actuation | 27C |
| 24 | Headlamp range adjustment actuator motor, actuation | 27C |
| 24 | Headlamp range adjustment actuator motor, actuation | 34C |
| 25 | Automatic high beams, request | 17J |
| 26 | High beams, status | 19H |
| 27 | Automatic high beams, actuation | 27F |
| 27 | Automatic high beams, actuation | 19G |
| 27 | Automatic high beams, actuation | 37F |
| 28 | Automatic high beams, status | 11H |
| 3 | Exterior lights switch, status | 22E |
| 3 | Exterior lights switch, status | 17D |
| 4 | Engine running, signal | 20G |
| 4 | Engine running, signal | 26D |
| 4 | Engine running, signal | 37D |
| 4 | Engine running, signal | 20L |
| 5 | Drivetrain operational, signal | 21G |
| 5 | Drivetrain operational, signal | 26D |
| 5 | Drivetrain operational, signal | 37D |
| 5 | Drivetrain operational, signal | 21L |
| 6 | Wheel speed, signal | 17F |
| 6 | Wheel speed, signal | 26E |
| 6 | Wheel speed, signal | 17J |
| 6 | Wheel speed, signal | 11J |
| 6 | Wheel speed, signal | 37E |
| 7 | Vehicle speed, signal | 18G |
| 7 | Vehicle speed, signal | 26E |
| 7 | Vehicle speed, signal | 17J |
| 7 | Vehicle speed, signal | 37E |
| 8 | Low beams, actuation | 25D |
| 8 | Low beams, actuation | 36D |
| 9 | Xenon bulb with integrated ignition module, actuation | 28B |
| 9 | Xenon bulb with integrated ignition module, actuation | 34B |
| A1 | Instrument cluster | 12H |
| A1e3 | High beam indicator lamp | 10G |
| A1p13 | Multifunction display | 13H |
| A40/11 | Multifunction camera | 19J |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 5J |
| B38/2 | Rain/light sensor | 16A |
| CAN B | Interior CAN | 19D |
| CAN B | Interior CAN | 15G |
| CAN C | Drive train CAN | 29G |
| CAN C | Drive train CAN | 29G |
| CAN E | Chassis CAN | 10K |
| CAN E | Chassis CAN | 15H |
| CAN E | Chassis CAN | 15F |
| CAN E | Chassis CAN | 22G |
| CAN E | Chassis CAN | 1G |
| CAN E | Chassis CAN | 12L |
| CAN E | Chassis CAN | 9A |
| CAN E | Chassis CAN | 15F |
| CAN E | Chassis CAN | 19H |
| CAN E | Chassis CAN | 15J |
| CAN E | Chassis CAN | 10J |
| CAN E | Chassis CAN | 22L |
| CAN G | Front end CAN | 21G |
| CAN G | Front end CAN | 21F |
| CAN G | Front end CAN | 29G |
| CAN G | Front end CAN | 34G |
| CAN G | Front end CAN | 27A |
| CAN G | Front end CAN | 34A |
| CAN H | Vehicle dynamics CAN | 5H |
| Code 423 | 5-speed automatic transmission | 35J |
| Code 427 | 7-speed automatic transmission | 32J |
| Code 608 | Adaptive Highbeam Assist | 18J |
| E1 | Left front lamp unit | 32A |
| E1e10 | Left xenon bulb with integrated ignition module | 33C |
| E1e9 | Left cornering illumination | 33C |
| E1m1 | Left headlamp range adjustment actuator motor | 33C |
| E1m2 | Left active curve illumination actuator motor | 33D |
| E1m3 | Left light distribution actuator motor | 33D |
| E1n1 | Left xenon lamp control unit | 36B |
| E2 | Right front lamp unit | 29A |
| E2e10 | Right xenon bulb with integrated ignition module | 28C |
| E2e9 | Right cornering illumination | 28C |
| E2m1 | Right headlamp range adjustment actuator motor | 28C |
| E2m2 | Right active curve illumination actuator motor | 28D |
| E2m3 | Right light distribution actuator motor | 28D |
| E2n1 | Right xenon light control unit | 25B |
| LIN 1 | Instrument panel LIN | 16E |
| LIN 2 | Wiper/inside rearview mirror LIN | 17C |
| N10/1 | Front SAM control unit with fuse and relay module | 18E |
| N15/5 | Electronic selector lever module control unit | 37J |
| N3/10 | ME-SFI [ME] control unit | 26H |
| N3/9 | CDI control unit | 23H |
| N30/4 | Electronic Stability Program control unit | 5C |
| N30/6 | Regenerative braking system control unit | 8C |
| N30/7 | Premium Electronic Stability Program control unit | 5C |
| N49 | Steering angle sensor | 10C |
| N73 | Electronic ignition switch control unit | 19A |
| N80 | Steering column module control unit | 13A |
| S1 | Exterior lights switch | 23E |
| S1 | Exterior lights switch | 15D |
| S16/2 | Backup lamp switch | 23A |
| S1s10 | Rear fog light button | 22E |
| S4 | Combination switch | 11A |
| U165 | Valid for AMG | 4C |
| U203 | Valid without DISTRONIC PLUS | 4B |
| U24 | Valid for manual transmission | 21A |
| U405 | Valid for model 212.0 except 212.077 | 14D |
| U56 | Valid for model 212.077 | 20E |
| U57 | Valid for model 212.2 | 20E |
| U58 | Valid for model 212.0/1 | 20E |
| U74 | Valid for diesel engines | 22H |
| U75 | Valid for gasoline engines | 25H |
| U909 | Valid for DISTRONIC PLUS | 4C |
| U974 | Not valid for full hybrid drive | 4B |
| U974 | Not valid for full hybrid drive | 4C |
| U978 | Valid for full hybrid drive | 7B |
| U986 | Not valid for AMG | 4B |
| Y3/8n4 | Fully integrated transmission control unit | 33J |
