Media interface control unit, component description - GF82.60-P-5000FLA

MODEL 212 up to 3/1/15 as of model year 2013 up to model year 2016 with CODE 518 (Media interface)

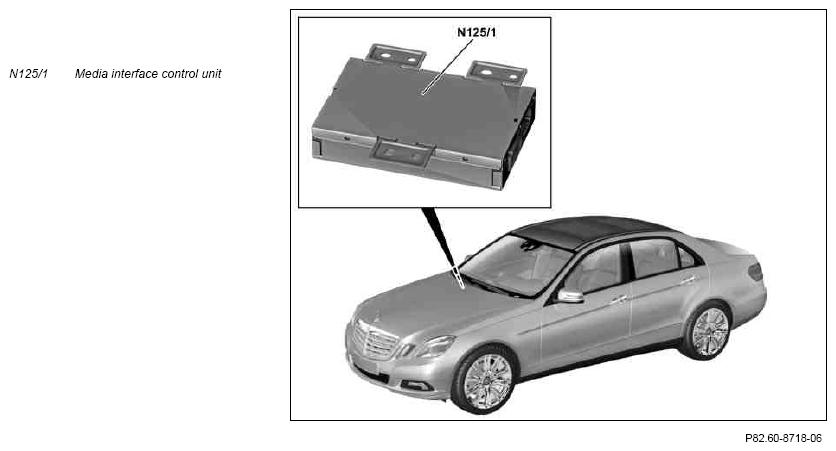

Shown on model 212.0

Location

The media interface control unit is located behind the glove compartment.

Tasks

• Receive signals
• Transmitting signals

Receive signals

• Direct lines
• Media Oriented System Transport (MOST)

Direct lines

• Power supply via circuit 31 and circuit 30g
• Audio signals and data from the Media Interface electrical connector (X18/70) over a prefabricated connecting cable
• Electronic wake-up for MOST

Media Oriented System Transport (MOST)

The media interface control unit receives operating and control signals from the audio equipment via MOST.

Transmitting signals

• Direct lines
• MOST

Direct lines

• General power supply and power supply for the universal serial bus (USB) to the Media Interface electrical connector
• Control signals to media interface electrical connector via a prefabricated connecting cable

MOST

The media interface control unit transmits audio signals and data to the audio equipment via MOST.

Wiring diagram for media interface control unit

N125/1

PE82.60-P-2105-97DAA
