Media interface control unit, component description - GF82.60-P-5000FL
MODEL 212 with CODE (518) Media Interface up to model year 2013 /AEJ 12

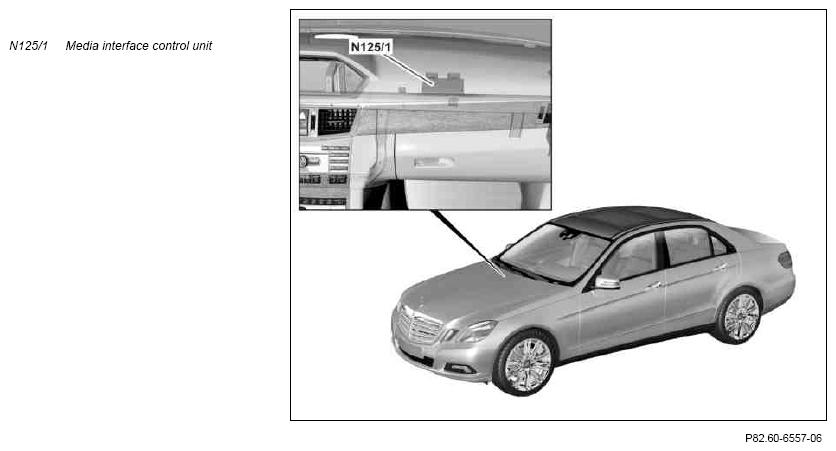

Shown on model 212.0
Location
The Media Interface control unit is located behind the glove compartment.
Task
- Receive signals
- Transmit signals
Receive signals
- Direct lines
- Media Oriented System Transport (MOST)
Direct lines
- Power supply via circuit 31 and circuit 30g
- Audio signals and data via the Media Interface electrical connector (X18/70) and "Mitsumi CAM62" connector
- Electronic wake-up for MOST
Media Oriented System Transport (MOST)
- Control and operating signals from the audio equipment
Transmit signals
- Direct lines
- MOST
Direct lines
- Power supply to Media Interface connector in general and for USB over "Mitsumi CAM62" connector
- Control signals to Media Interface connector over "Mitsumi CAM62" connector
MOST
- Audio signals and data to the audio unit
| Technical data Designation |
Unit | Values | Tolerance range | Remarks |
|---|---|---|---|---|
| Media interface control unit | ||||
| Power supply | V | 12 | Operating voltage (UB ) | |
| Voltage limits | V | >9 | Minimum (UBmin ) | |
| V | < 16 | Maximum (UBmax ) | ||
| Power consumption | mA | 300 | Ready (IB ) | |
| mA | 300 | Action, typical (IAction ) | ||
| A | 1.5 | Maximum (IAction ) | ||
| mA | 0.1 | Quiescent current | ||
| Reverse polarity protection | Yes, in range -9 V to -16 V | |||
| Flash capability/coding capability | No/DC-compatible |
| Wiring diagram for Media Interface control unit | N125/1 | PE82.60-P-2105-97DAA |
