Manual interior lights control, function - GF82.20-P-2000FL
MODEL 212
Without code (414) Power glass tilting/sliding roof
With code (414) Electric glass tilting/sliding sunroof
Function requirements, general
- No overvoltage or undervoltage (operating voltage range U ≥7 ≤ 17.5 V)
Manual interior lights control in general
The manual interior lights control permits the interior illumination, reading illumination, vanity mirror illumination as well as the glove compartment illumination to be switched on and off by operating the relevant switch. The relevant components are actuated according to the equipment installed.
A distinction is made between the following variants:

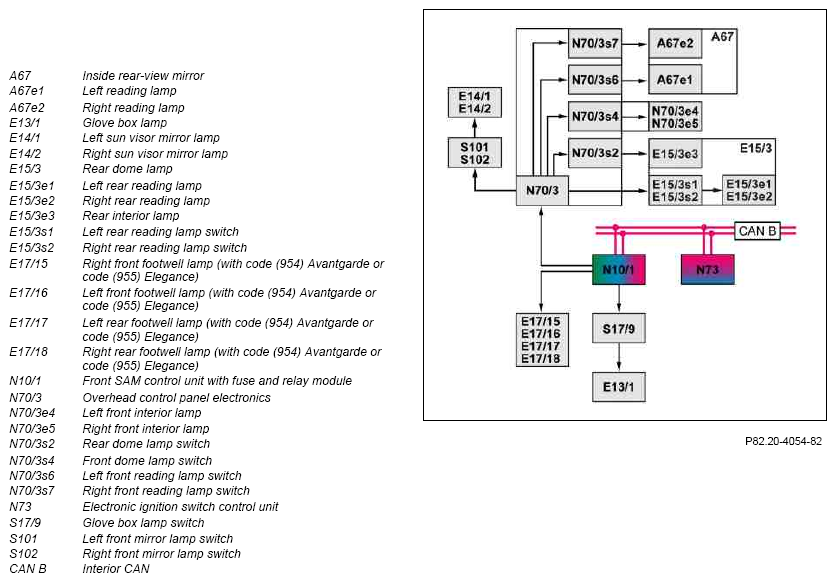

- Actuation via the non-networked overhead control panel electronics on vehicles without code (414) Power glass tilting/sliding roof

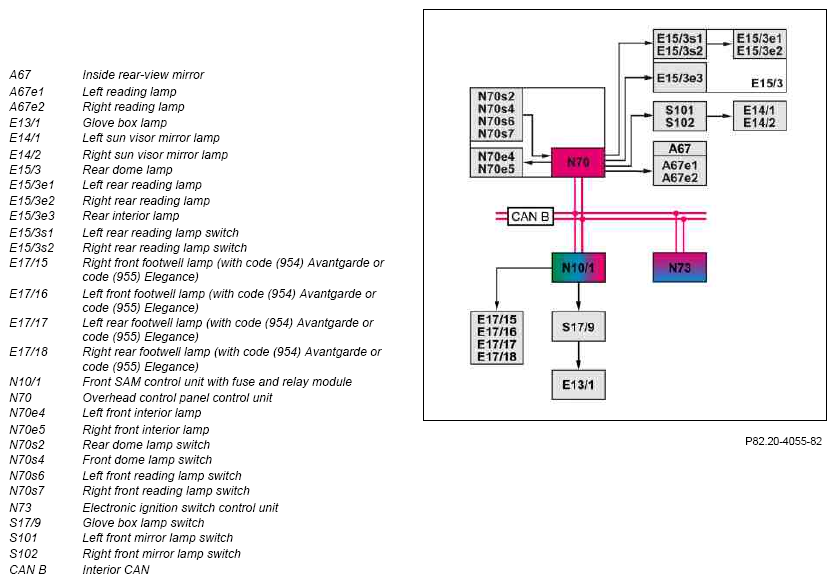

- Actuation via the networked overhead control panel control unit on vehicles with code (414) Power glass tilting/sliding roof
The overhead control panel electronics are supplied with power through the front SAM control unit. When the switch is operated at the overhead control panel electronics, the voltage is switched through to the relevant component and the component is switched on or off. The overhead control panel control unit is a participant on the interior CAN. The status of each switch is directly read in by the overhead control panel control unit and sent to the front SAM control unit via interior CAN. The front SAM control unit receives it and sends the corresponding request back to the overhead control panel control unit via interior CAN. The overhead control panel control unit then actuates the corresponding components.
The manual interior lights control function encompasses the following subfunctions:
- Function sequence for interior illumination
- Function sequence for reading illumination
- Function sequence for vanity mirror illumination
- Function sequence for glove compartment illumination
Function sequence for interior illumination
The following interior illumination components can be switched on or off manually by operating the switches that are located on the housing of the overhead control panel electronics:
- Left front interior lamp and right front interior lamp via the front dome lamp switch
- Rear interior lamp in rear dome lamp via the rear dome lamp switch
The following interior illumination components can be switched on or off manually by operating the switches that are located on the housing of the overhead control panel control unit:
- Left front interior lamp and right front interior lamp via the front dome lamp switch
- Rear interior lamp via the rear dome lamp switch ()
On vehicles with code (954) Avantgarde or code (955) Elegance, the front SAM control unit also actuates the following components of the footwell illumination:
- Right front footwell lamp (E17/15)
- Left front footwell lamp (E17/16)
- Left rear footwell lamp (E17/17)
- Right rear footwell lamp (E17/18)
Function sequence for reading illumination
The reading illumination serves to illuminate a defined area in front of the user, without having a distracting dazzling effect on the driver.
The following reading lamp components can be switched on or off manually by operating the switches:
- Left reading lamp via the left front reading lamp switch (with overhead control panel electronics)
- Left reading lamp via the left front reading lamp switch (with overhead control panel control unit)
- Right reading lamp via the right front reading lamp switch (with overhead control panel electronics)
- Right reading lamp via right front reading lamp switch (with overhead control panel control unit)
- Left rear reading lamp via the left rear reading lamp switch
- Right rear reading lamp via the right rear reading lamp switch
Function sequence for vanity mirror illumination
The following components of the vanity mirror illumination can be manually switched on or off by folding the corresponding mirror cover open or closed:
- Left sun visor mirror lamp via the left front mirror lamp switch
- Right sun visor mirror lamp over the right front mirror lamp switch
The power supply for the left sun visor mirror lamp and the right sun visor mirror lamp is switched off by folding the mirror cover closed or when the vehicle is locked using the central locking system (CL [ZV]).
To preserve the on-board electrical system battery (G1), the power supply is interrupted t = 30 min. following circuit 15 OFF.
Additional function requirements for glove compartment illumination
- Circuit 15R ON
The electronic ignition lock control unit sends the status of circuit 15 to the front SAM control unit via interior CAN.
Function sequence for glove compartment illumination
The glove compartment lamp switch is supplied with voltage by the front SAM control unit. Voltage is switched through to the glove compartment lamp by opening the glove compartment lid.
