Exterior lights, function - GF82.10-P-0003FLM

MODEL 212 as of model year 2014

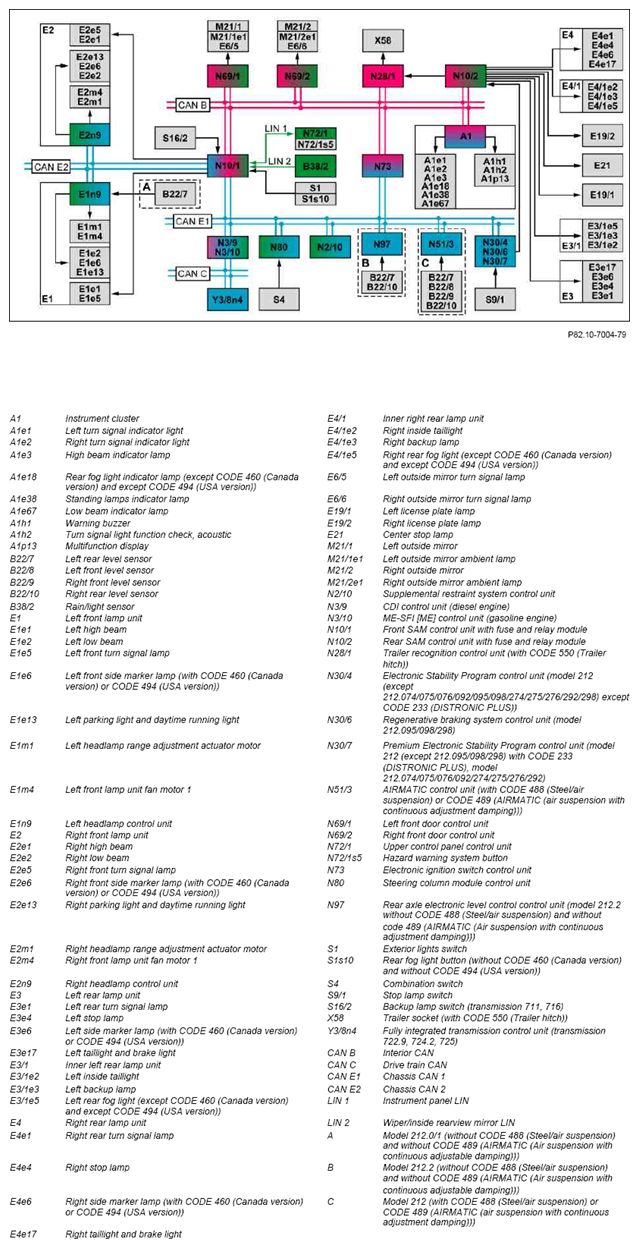

Fig 1: Exterior Lights Function Diagram - Model 212
G10050503Courtesy of MERCEDES-BENZ USA

Without CODE 640 (SAE dynamic right-hand traffic LED headlamp) and without CODE 641 (Dynamic left-hand traffic LED headlamp) and without CODE 642 (Dynamic right-hand traffic LED headlamp)

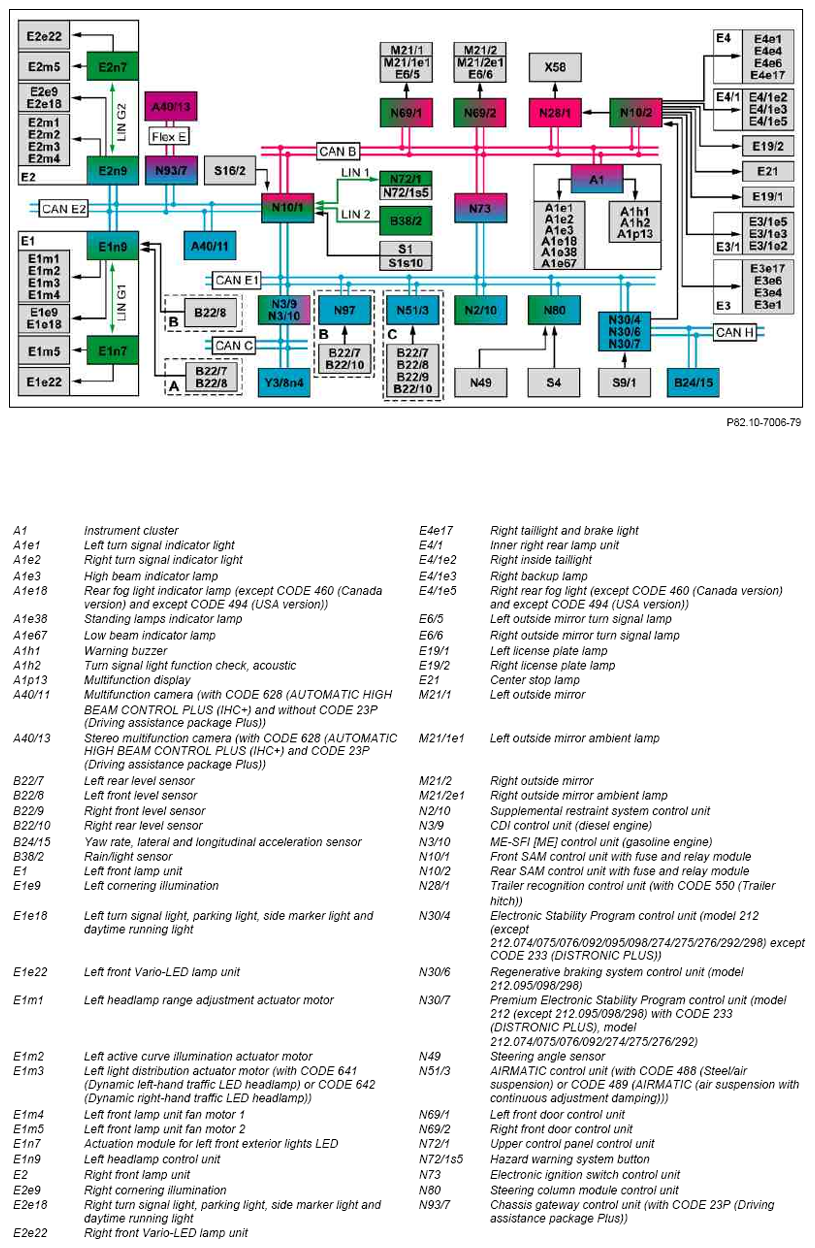

Fig 2: Exterior Lights Function Diagram (1 Of 2)
G10050504Courtesy of MERCEDES-BENZ USA

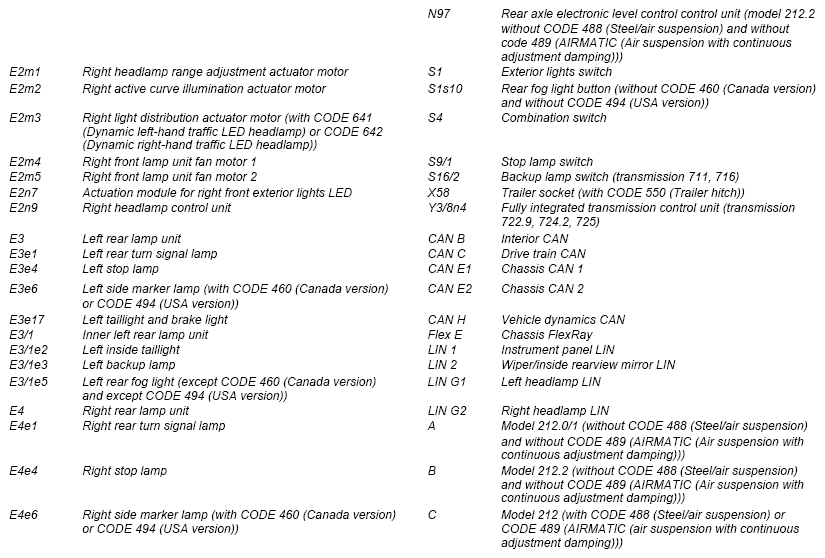

Fig 3: Exterior Lights Function Diagram (2 Of 2)
G10050505Courtesy of MERCEDES-BENZ USA

With CODE 640 (SAE dynamic right-hand traffic LED headlamp) or code 641 (Dynamic left-hand traffic LED headlamp) or code 642 (Dynamic right-hand traffic LED headlamp)

Function requirements, general

Exterior lights (ABL), general

The exterior lights control all the safety and comfort-relevant functions of the front, side and rear lights of the vehicle.

The exterior lights contain the following functions:

Further functions are described in separate documents:

Function sequence, on-board network increase

When the on-board electrical system voltage is decreased by the energy management below the minimum voltage of a light function during normal driving operation, the front SAM control unit can suppress shutoff of the corresponding light function with the aid of the on-board electrical system increase. For this purpose, the front SAM control unit requests the minimum voltage necessary for the corresponding light function. The lighting functions for which the on-board electrical system increase is to be activated are defined during production.

The following functions can be coded:

Function sequence for switching off the exterior lights

By switching off the exterior lights, the on-board electrical system load by the active standing or parking lights actuation is reduced.

IMPORTANT Discharge of the on-board electrical system battery (G1) is prevented.

The low beams may be switched on due to the auto on/off driving lights, the daytime running lights or manually via the exterior lights switch.

A prerequisite for this is that the status of circuit 15 is On.

If circuit 15 is Off, the low beams are switched off.

The standing lights may be switched on because the low beams have been manually switched on, because of the auto on/off driving lights or manually via the exterior lights switch.

If the standing lights have been activated because of the manually activated low beams, auto on/off driving lights or daytime running lights and the driver door is opened with the status circuit 15C On, the standing lights are switched off.

The standing lights are switched off when the energy management determines that the engine's starting capability is impaired due to discharging of the on-board electrical system battery (G1).

IMPORTANT If the Ambient illumination function is activated via the instrument cluster, it automatically switches itself on when the engine is turned off. The standing lights remain switched on for an adjustable time interval of no more than t = 60 s.

The "Ambient illumination" function is described in the "Headlamp switch-off delay (SWA) function" document.

  Standing/parking lights actuation, function   GF82.10-P-3060FLM
  Headlamp control, function MODEL 212
as of model year 2014
without CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic)
without CODE 641 (Headlamps, LED, dynamic, left-side traffic)
without CODE 642 (Headlamps, LED, dynamic, right-side traffic)		 GF82.10-P-2009FLM
MODEL 212
as of model year 2014
with CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic)
MODEL 212
as of model year 2014
with CODE 641 (Headlamps, LED, dynamic, left-side traffic)
MODEL 212
as of model year 2014
with CODE 642 (Headlamps, LED, dynamic, right-side traffic)		 GF82.10-P-2009FLN
  Function of Intelligent Light System MODEL 212
as of model year 2014
with CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic)
MODEL 212
as of model year 2014
with CODE 641 (Headlamps, LED, dynamic, left-side traffic)
MODEL 212
as of model year 2014
with CODE 642 (Headlamps, LED, dynamic, right-side traffic)		 GF82.10-P-3090FLM
  Function of Adaptive Highbeam Assist MODEL 212
as of model year 2014
with CODE 628 (INTELLIGENT HEADLAMP CONTROL PLUS (IHC+))		 GF82.10-P-3091FLM
  Front fog light actuation, function MODEL 212
as of model year 2014
without CODE 460 (Canada version)
without CODE 494 (US version)		 GF82.10-P-3070FLM
  Turn signal indicator actuation, function   GF82.10-P-3008FLM
  Brake light actuation, function   GF82.10-P-3010FLM
  Backup lamp actuation, function   GF82.10-P-3011FLM
  Headlight switch off delay function   GF82.10-P-2011FLM
  Emergency lamp control, function   GF82.10-P-3013FLM
