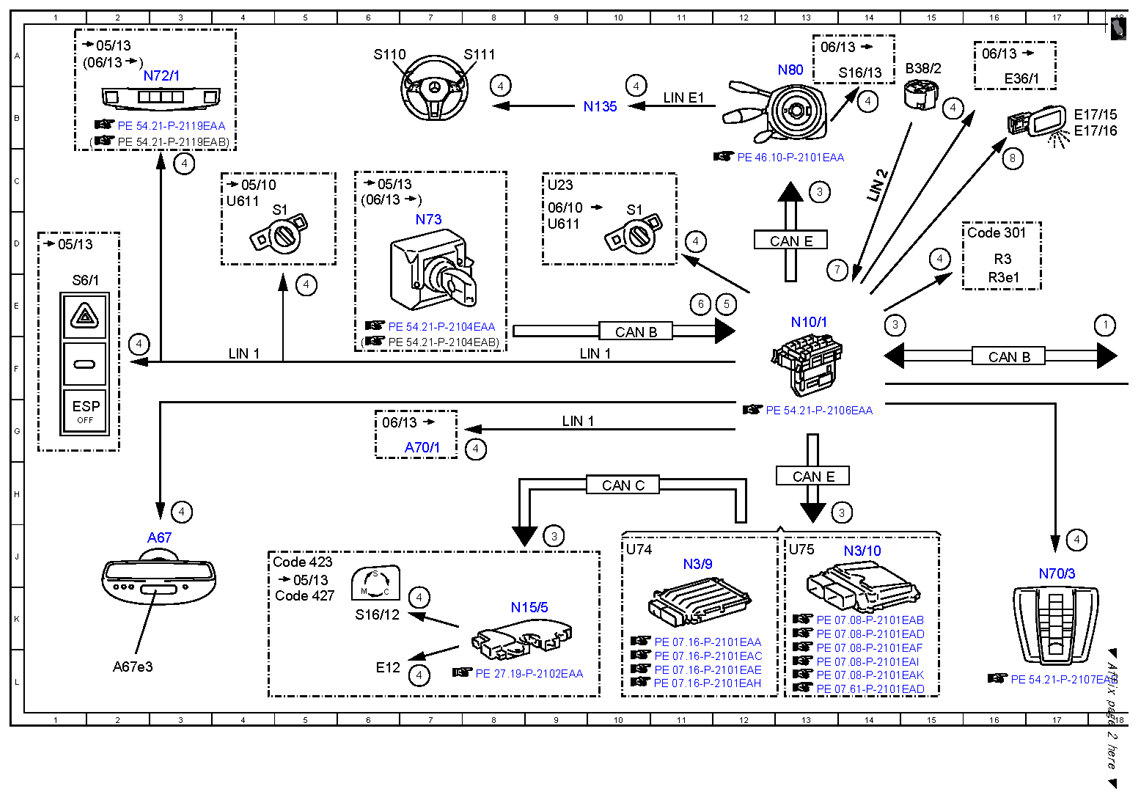

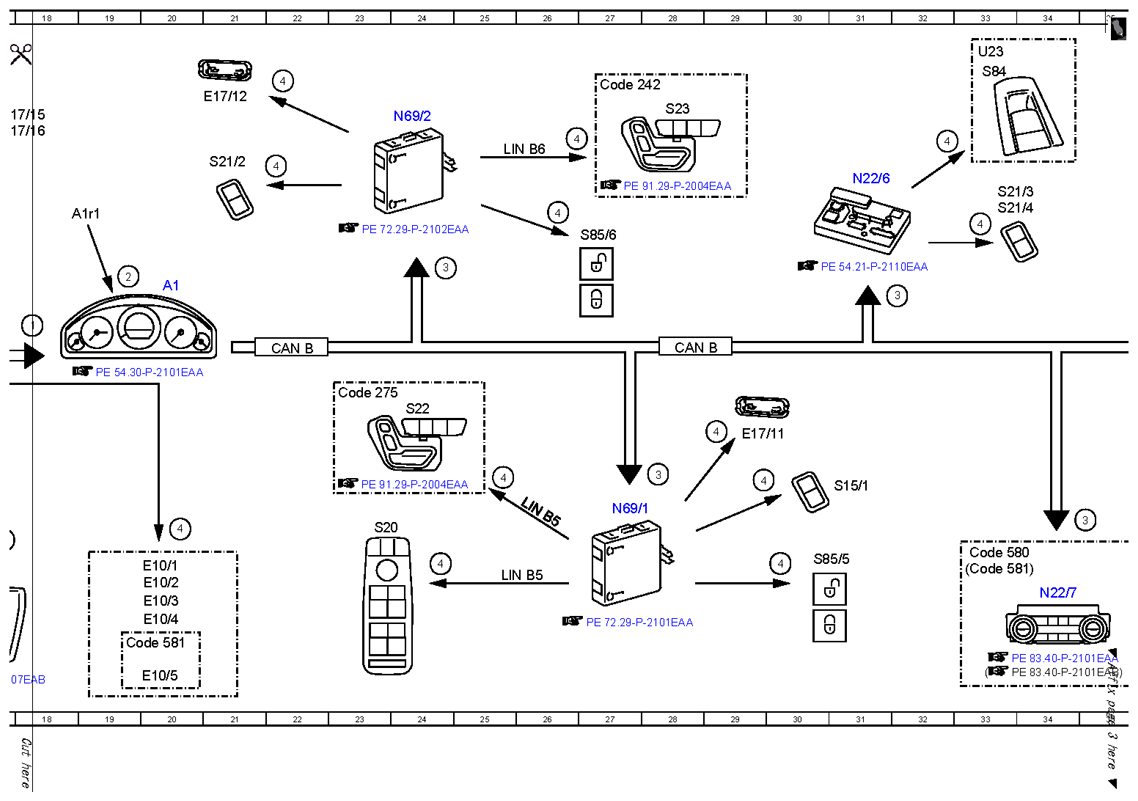

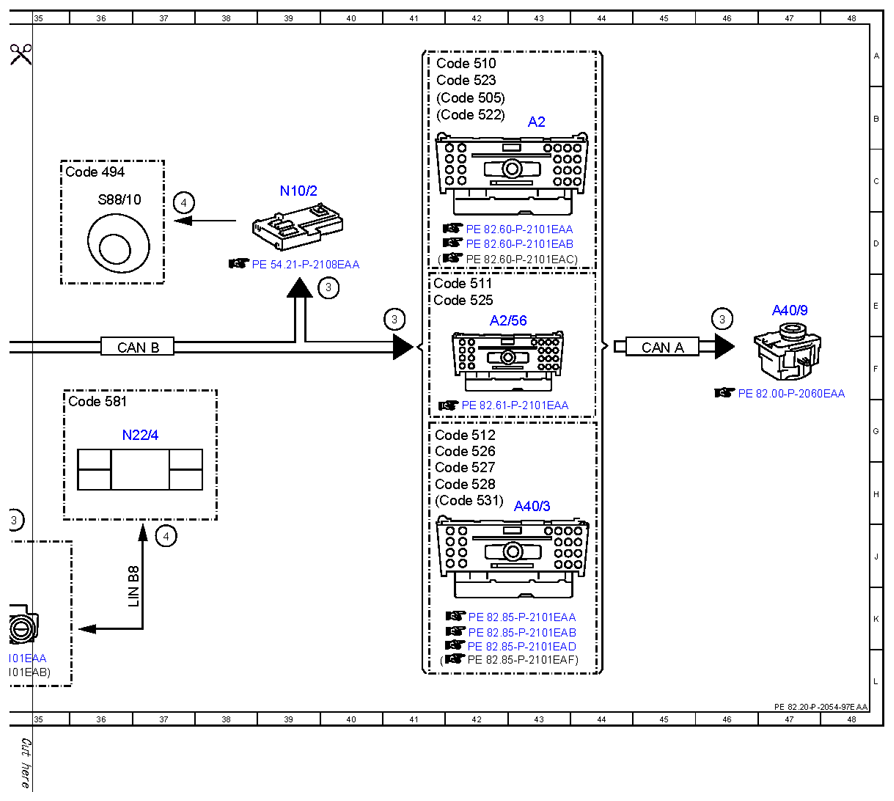

| 1 |
Circuit 58, status |
18E |
| 2 |
Instrument illumination brightness control, status |
19E |
| 3 |
Circuit 58d, status |
9J |
| 3 |
Circuit 58d, status |
14H |
| 3 |
Circuit 58d, status |
13C |
| 3 |
Circuit 58d, status |
41E |
| 3 |
Circuit 58d, status |
40E |
| 3 |
Circuit 58d, status |
32E |
| 3 |
Circuit 58d, status |
14E |
| 3 |
Circuit 58d, status |
35H |
| 3 |
Circuit 58d, status |
28H |
| 3 |
Circuit 58d, status |
24D |
| 3 |
Circuit 58d, status |
46E |
| 4 |
Button/symbol illumination, actuation |
30J |
| 4 |
Button/symbol illumination, actuation |
29H |
| 4 |
Button/symbol illumination, actuation |
17J |
| 4 |
Button/symbol illumination, actuation |
10B |
| 4 |
Button/symbol illumination, actuation |
3C |
| 4 |
Button/symbol illumination, actuation |
2F |
| 4 |
Button/symbol illumination, actuation |
5E |
| 4 |
Button/symbol illumination, actuation |
3H |
| 4 |
Button/symbol illumination, actuation |
22A |
| 4 |
Button/symbol illumination, actuation |
22C |
| 4 |
Button/symbol illumination, actuation |
26B |
| 4 |
Button/symbol illumination, actuation |
24J |
| 4 |
Button/symbol illumination, actuation |
33D |
| 4 |
Button/symbol illumination, actuation |
37C |
| 4 |
Button/symbol illumination, actuation |
26D |
| 4 |
Button/symbol illumination, actuation |
25H |
| 4 |
Button/symbol illumination, actuation |
20J |
| 4 |
Button/symbol illumination, actuation |
32B |
| 4 |
Button/symbol illumination, actuation |
37J |
| 4 |
Button/symbol illumination, actuation |
29G |
| 4 |
Button/symbol illumination, actuation |
7K |
| 4 |
Button/symbol illumination, actuation |
7L |
| 4 |
Button/symbol illumination, actuation |
8B |
| 4 |
Button/symbol illumination, actuation |
15D |
| 4 |
Button/symbol illumination, actuation |
11D |
| 4 |
Button/symbol illumination, actuation |
8G |
| 4 |
Button/symbol illumination, actuation |
15B |
| 4 |
Button/symbol illumination, actuation |
14B |
| 5 |
Circuit 15, status |
12E |
| 6 |
Central locking (CL[ZV]), status |
11E |
| 7 |
Rain/light sensor, status |
13D |
| 8 |
Footwell lamp, actuation |
16C |
| A1 |
Instrument cluster |
20E |
| A1r1 |
Instrument illumination brightness control |
18D |
| A2 |
Radio |
43B |
| A2/56 |
Radio with auto pilot system |
42E |
| A40/3 |
COMAND control unit |
43H |
| A40/9 |
Audio/COMAND control panel |
47E |
| A67 |
Inside rearview mirror |
3J |
| A67e3 |
Ambient lamp |
2L |
| A70/1 |
Analog clock |
7G |
| B38/2 |
Rain/light sensor |
15A |
| CAN A |
Telematics CAN |
45F |
| CAN B |
Interior CAN |
16F |
| CAN B |
Interior CAN |
36F |
| CAN B |
Interior CAN |
22F |
| CAN B |
Interior CAN |
10F |
| CAN B |
Interior CAN |
28F |
| CAN C |
Drive train CAN |
10H |
| CAN E |
Chassis CAN |
13H |
| CAN E |
Chassis CAN |
13D |
| Code 242 |
Electrically adjustable front passenger seat with memory function |
27B |
| Code 275 |
Memory function (driver seat, steering column, outside mirror) |
23F |
| Code 301 |
Ashtray in place of stowage compartment with flap and power outlet |
16D |
| Code 423 |
5-speed automatic transmission |
4J |
| Code 427 |
7-speed automatic transmission |
5K |
| Code 494 |
USA version |
35C |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
41B |
| Code 510 |
Audio 20 with CD changer |
41A |
| Code 511 |
Audio 50 APS incl. DVD changer |
41E |
| Code 512 |
COMAND APS with DVD changer |
41G |
| Code 522 |
Audio 20 radio |
41B |
| Code 523 |
Audio 20 radio |
41A |
| Code 525 |
Audio 50 APS radio (CD) |
41E |
| Code 526 |
COMAND with single DVD drive (without navigation) |
41G |
| Code 527 |
COMAND APS (with navigation) |
41H |
| Code 528 |
COMAND with DVD changer |
41H |
| Code 531 |
COMAND APS |
41H |
| Code 580 |
Automatic air conditioning |
33J |
| Code 581 |
Comfort automatic air conditioning |
33J |
| Code 581 |
Comfort automatic air conditioning |
35G |
| Code 581 |
Comfort automatic air conditioning |
19K |
| E10/1 |
Left center air outlet symbol illumination |
20J |
| E10/2 |
Left front side air outlet symbol illumination |
20K |
| E10/3 |
Right front side air outlet symbol illumination |
20K |
| E10/4 |
Right center air outlet symbol illumination |
20K |
| E10/5 |
Rear air outlet symbol illumination |
20L |
| E12 |
Shift gate symbol illumination |
6L |
| E17/11 |
Left front door door handle illumination |
29G |
| E17/12 |
Right front door door handle illumination |
21B |
| E17/15 |
Right front footwell lamp |
17B |
| E17/16 |
Left front footwell lamp |
17B |
| E36/1 |
Armrest stowage compartment illumination |
16A |
| LIN 1 |
Instrument panel LIN |
9F |
| LIN 1 |
Instrument panel LIN |
4F |
| LIN 1 |
Instrument panel LIN |
9G |
| LIN 2 |
Wiper/inside rearview mirror LIN |
14C |
| LIN B5 |
Left door LIN |
25J |
| LIN B5 |
Left door LIN |
26H |
| LIN B6 |
Right door LIN |
25C |
| LIN B8 |
Climate control LIN |
36J |
| LIN E1 |
Steering LIN |
11B |
| N10/1 |
Front SAM control unit with fuse and relay module |
13E |
| N10/2 |
Rear SAM control unit with fuse and relay module |
39C |
| N135 |
Steering wheel electronics |
10B |
| N15/5 |
Electronic selector lever module control unit |
8K |
| N22/4 |
Rear automatic air conditioning operating unit |
36G |
| N22/6 |
Rear control unit |
31C |
| N22/7 |
Automatic air conditioning control and operating unit |
34K |
| N3/10 |
ME-SFI [ME] control unit |
14J |
| N3/9 |
CDI control unit |
11J |
| N69/1 |
Left front door control unit |
27H |
| N69/2 |
Right front door control unit |
24B |
| N70/3 |
Overhead control panel electronics |
17J |
| N72/1 |
Upper control panel control unit |
3A |
| N73 |
Electronic ignition switch control unit |
7D |
| N80 |
Steering column module control unit |
13A |
| R3 |
Front cigarette lighter with ashtray illumination |
16D |
| R3e1 |
Ashtray illumination |
16E |
| S1 |
Exterior lights switch |
4D |
| S1 |
Exterior lights switch |
10D |
| S110 |
Left multifunction steering wheel button group |
6A |
| S111 |
Right multifunction steering wheel button group |
8A |
| S15/1 |
Trunk lid release button |
31H |
| S16/12 |
Automatic transmission transmission mode button |
6K |
| S16/13 |
DIRECT SELECT lever |
14A |
| S20 |
Driver-side power window and outside mirror adjustment switch group |
23J |
| S21/2 |
Passenger-side power window switch |
21C |
| S21/3 |
Left rear power window switch |
33C |
| S21/4 |
Right rear power window switch |
33D |
| S22 |
Left front seat adjustment switch group |
24G |
| S23 |
Right front seat adjustment switch group |
28B |
| S6/1 |
Instrument panel switch group |
1E |
| S84 |
Soft top control switch |
33A |
| S85/5 |
Left front door central locking interior switch |
30J |
| S85/6 |
Right front door central locking interior switch |
27D |
| S88/10 |
Trunk lid emergency opening switch |
36C |
| U23 |
Valid for convertibles |
33A |
| U23 |
Valid for convertibles |
9C |
| U611 |
Valid for Coupe |
4C |
| U611 |
Valid for Coupe |
9D |
| U74 |
Valid for diesel engines |
10J |
| U75 |
Valid for gasoline engines |
13J |
