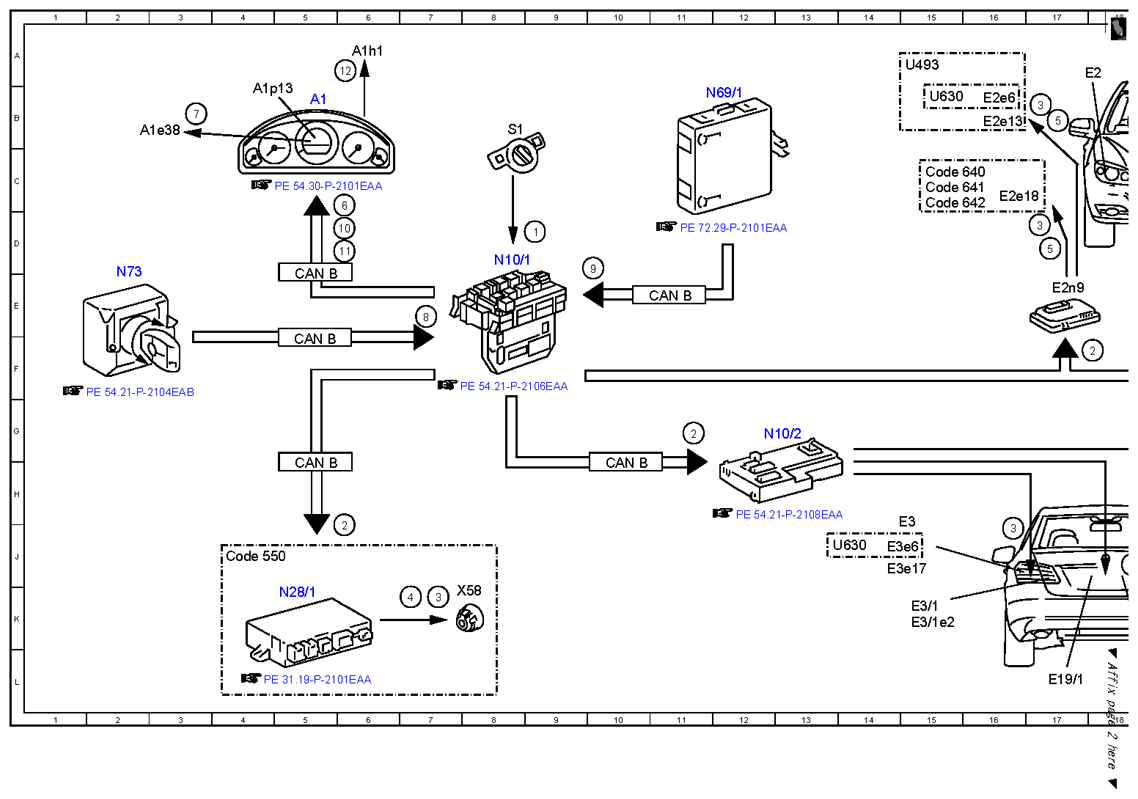

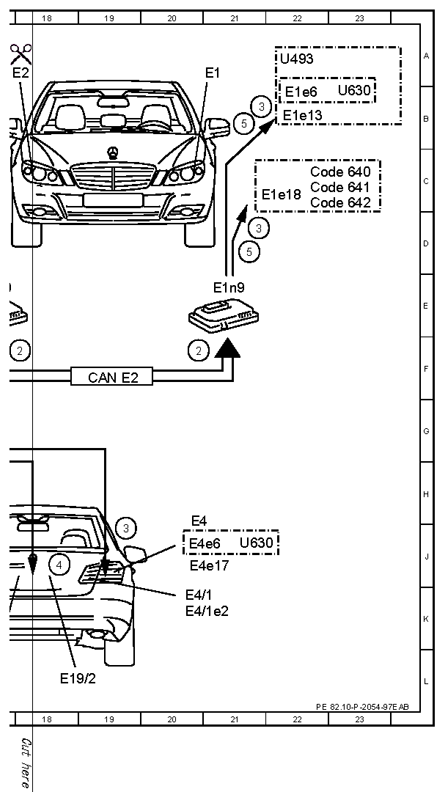

| 1 |
Exterior lights switch, status |
9D |
| 10 |
Warning tone, request |
6D |
| 11 |
Warning and system messages, actuation |
6D |
| 12 |
Warning buzzer, actuation |
6A |
| 2 |
Standing and parking lights, request |
6J |
| 2 |
Standing and parking lights, request |
11G |
| 2 |
Standing and parking lights, request |
18F |
| 2 |
Standing and parking lights, request |
20F |
| 3 |
Standing and parking lights, actuation |
7K |
| 3 |
Standing and parking lights, actuation |
16J |
| 3 |
Standing and parking lights, actuation |
17D |
| 3 |
Standing and parking lights, actuation |
21D |
| 3 |
Standing and parking lights, actuation |
19J |
| 3 |
Standing and parking lights, actuation |
21B |
| 3 |
Standing and parking lights, actuation |
17B |
| 4 |
License plate lamp, actuation |
18J |
| 4 |
License plate lamp, actuation |
7K |
| 5 |
Side-marker lamp, actuation |
21D |
| 5 |
Side-marker lamp, actuation |
17D |
| 5 |
Side-marker lamp, actuation |
21B |
| 5 |
Side-marker lamp, actuation |
17B |
| 6 |
Standing lights indicator lamp, request |
6C |
| 7 |
Standing lights indicator lamp, actuation |
3B |
| 8 |
Circuit 15, status |
7E |
| 9 |
Door rotary tumbler switch, status |
10D |
| A1 |
Instrument cluster |
5B |
| A1e38 |
Standing lamps indicator lamp |
2B |
| A1h1 |
Warning buzzer |
6A |
| A1p13 |
Multifunction display |
4B |
| CAN B |
Interior CAN |
5H |
| CAN B |
Interior CAN |
10H |
| CAN B |
Interior CAN |
5E |
| CAN B |
Interior CAN |
5F |
| CAN B |
Interior CAN |
11E |
| CAN E2 |
Chassis CAN 2 |
19F |
| Code 550 |
Trailer hitch |
4J |
| Code 640 |
Dynamic LED headlamps, SAE, right-hand traffic |
22C |
| Code 640 |
Dynamic LED headlamps, SAE, right-hand traffic |
15C |
| Code 641 |
Dynamic LED headlamps, left-hand traffic |
22C |
| Code 641 |
Dynamic LED headlamps, left-hand traffic |
15C |
| Code 642 |
Dynamic LED headlamps, right-hand traffic |
22C |
| Code 642 |
Dynamic LED headlamps, right-hand traffic |
15C |
| E1 |
Left front lamp unit |
21A |
| E19/1 |
Left license plate lamp |
17L |
| E19/2 |
Right license plate lamp |
18L |
| E1e13 |
Left parking light and daytime running light |
22B |
| E1e18 |
Left turn signal light, parking light, side marker light and daytime running light |
21C |
| E1e6 |
Left front side-marker lamp |
22B |
| E1n9 |
Left headlamp control unit |
21E |
| E2 |
Right front lamp unit |
17A |
| E2e13 |
Right parking light and daytime running light |
16B |
| E2e18 |
Right turn signal light, parking light, side marker light and daytime running light |
16C |
| E2e6 |
Right front side-marker lamp |
16B |
| E2n9 |
Right headlamp control unit |
17E |
| E3 |
Left rear lamp unit |
14J |
| E3/1 |
Inner left rear lamp unit |
15K |
| E3/1e2 |
Left inside taillight |
15K |
| E3e17 |
Left taillight and brake light |
14J |
| E3e6 |
Left side-marker lamp |
14J |
| E4 |
Right rear lamp unit |
20J |
| E4/1 |
Inner right rear lamp unit |
20K |
| E4/1e2 |
Inner right taillamp |
20K |
| E4e17 |
Right taillight and brake light |
20J |
| E4e6 |
Right side-marker lamp |
20J |
| N10/1 |
Front SAM control unit with fuse and relay module |
8D |
| N10/2 |
Rear SAM control unit with fuse and relay module |
12G |
| N28/1 |
Trailer recognition control unit |
5K |
| N69/1 |
Left front door control unit |
12B |
| N73 |
Electronic ignition switch control unit |
2E |
| S1 |
Exterior lights switch |
8B |
| U493 |
Valid for halogen lamp unit |
22A |
| U493 |
Valid for halogen lamp unit |
15A |
| U630 |
Valid for USA and Canada |
15B |
| U630 |
Valid for USA and Canada |
23B |
| U630 |
Valid for USA and Canada |
13J |
| U630 |
Valid for USA and Canada |
21J |
| X58 |
Trailer socket |
7K |
