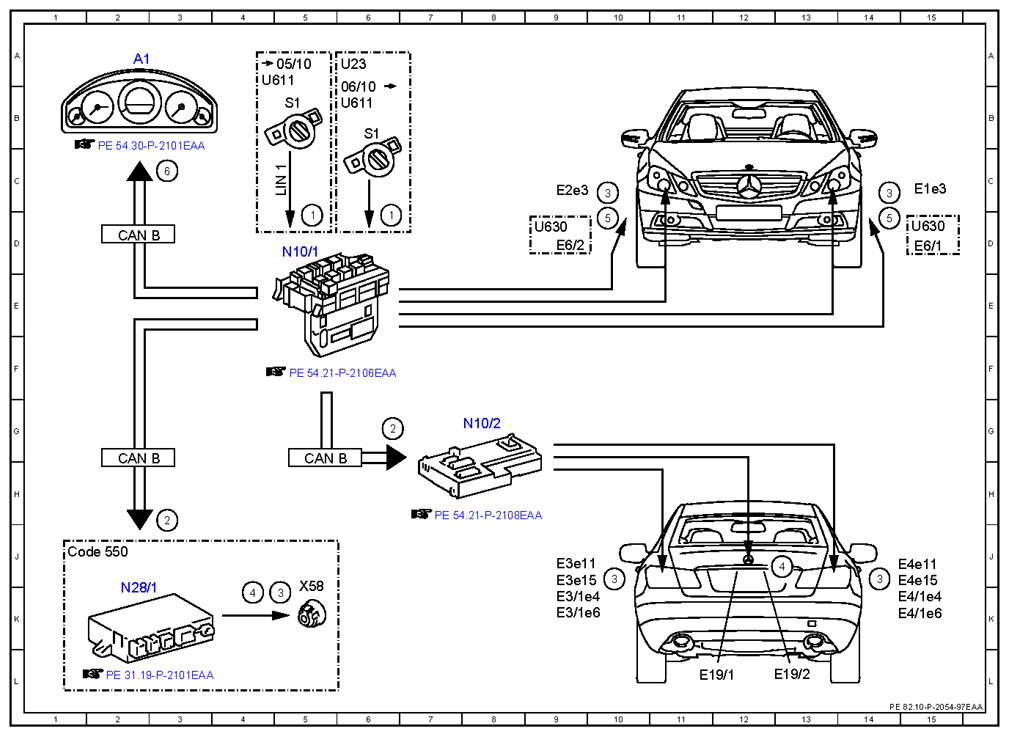

| 1 |
Exterior lights switch, status |
5D |
| 1 |
Exterior lights switch, status |
6D |
| 2 |
Standing and parking lights, request |
3H |
| 2 |
Standing and parking lights, request |
6G |
| 3 |
Standing and parking lights, actuation |
5K |
| 3 |
Standing and parking lights, actuation |
14J |
| 3 |
Standing and parking lights, actuation |
14C |
| 3 |
Standing and parking lights, actuation |
10C |
| 3 |
Standing and parking lights, actuation |
10J |
| 4 |
License plate lamp, actuation |
13J |
| 4 |
License plate lamp, actuation |
4K |
| 5 |
Side-marker lamp, actuation |
14D |
| 5 |
Side-marker lamp, actuation |
10D |
| 6 |
Standing lights indicator lamp, actuation |
3C |
| A1 |
Instrument cluster |
2A |
| CAN B |
Interior CAN |
2H |
| CAN B |
Interior CAN |
5H |
| CAN B |
Interior CAN |
2D |
| Code 550 |
Trailer hitch |
1J |
| E19/1 |
Left license plate lamp |
11L |
| E19/2 |
Right license plate lamp |
12L |
| E1e3 |
Left front standing and parking lamp |
15C |
| E2e3 |
Right front standing and parking lamp |
9C |
| E3/1e4 |
Inner left stop lamp and taillamp |
9K |
| E3/1e6 |
Inner left background light |
9K |
| E3e11 |
Outer left brake light and taillight |
9J |
| E3e15 |
Outer left background light |
9J |
| E4/1e4 |
Inner right brake light and taillight |
14K |
| E4/1e6 |
Inner right background light |
14K |
| E4e11 |
Outer right brake light and taillight |
14J |
| E4e15 |
Outer right background light |
14J |
| E6/1 |
Left front side-marker lamp |
15D |
| E6/2 |
Right front side-marker lamp |
9D |
| LIN 1 |
Instrument panel LIN |
5C |
| N10/1 |
Front SAM control unit with fuse and relay module |
5D |
| N10/2 |
Rear SAM control unit with fuse and relay module |
8G |
| N28/1 |
Trailer recognition control unit |
2K |
| S1 |
Exterior lights switch |
5B |
| S1 |
Exterior lights switch |
6B |
| U630 |
Valid for USA and Canada |
9D |
| U630 |
Valid for USA and Canada |
15D |
| X58 |
Trailer socket |
5K |
