| 1 |
Engine running, signal |
14G |
| 1 |
Engine running, signal |
19D |
| 1 |
Engine running, signal |
31D |
| 10 |
Combination switch, status |
6B |
| 10 |
Combination switch, status |
11F |
| 10 |
Combination switch, status |
11L |
| 10 |
Combination switch, status |
19F |
| 10 |
Combination switch, status |
31F |
| 11 |
Wheel speed, signal |
19F |
| 11 |
Wheel speed, signal |
11K |
| 11 |
Wheel speed, signal |
7J |
| 11 |
Wheel speed, signal |
31F |
| 11 |
Wheel speed, signal |
11G |
| 12 |
Vehicle speed, signal |
11H |
| 12 |
Vehicle speed, signal |
19D |
| 12 |
Vehicle speed, signal |
31D |
| 13 |
Cornering illumination, actuation |
21B |
| 13 |
Cornering illumination, actuation |
28B |
| 14 |
Backup lamp switch, status |
14D |
| 15 |
Selector lever position, status |
19H |
| 15 |
Selector lever position, status |
15H |
| 16 |
Reverse gear, status |
19D |
| 16 |
Reverse gear, status |
31D |
| 17 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
11K |
| 17 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
4G |
| 17 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
11G |
| 17 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
19E |
| 17 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
31E |
| 18 |
Active curve illumination actuator motor, actuation |
22C |
| 18 |
Active curve illumination actuator motor, actuation |
28C |
| 19 |
Headlamp range adjustment actuator motor, actuation |
22D |
| 19 |
Headlamp range adjustment actuator motor, actuation |
28D |
| 2 |
Drivetrain operational, signal |
15H |
| 2 |
Drivetrain operational, signal |
19D |
| 2 |
Drivetrain operational, signal |
31D |
| 20 |
Light distribution actuator motor, actuation |
28D |
| 20 |
Light distribution actuator motor, actuation |
22D |
| 21 |
Rear fog light, request |
11E |
| 21 |
Rear fog light, request |
19E |
| 21 |
Rear fog light, request |
16E |
| 21 |
Rear fog light, request |
31E |
| 22 |
Automatic high beams, status |
13J |
| 22 |
Automatic high beams, status |
11H |
| 23 |
Optical headlamp range adjustment, request |
12G |
| 23 |
Optical headlamp range adjustment, request |
31F |
| 23 |
Optical headlamp range adjustment, request |
20F |
| 24 |
Automatic high beams, actuation |
19F |
| 24 |
Automatic high beams, actuation |
13G |
| 24 |
Automatic high beams, actuation |
31F |
| 25 |
High beams, status |
8H |
| 3 |
Exterior lights switch, status |
15E |
| 3 |
Exterior lights switch, status |
11E |
| 4 |
Rain/light sensor, status |
12E |
| 5 |
Low beams, actuation |
18D |
| 5 |
Low beams, actuation |
30D |
| 6 |
Xenon bulb with integrated ignition module, actuation |
22B |
| 6 |
Xenon bulb with integrated ignition module, actuation |
28B |
| 7 |
Intelligent Light System, status |
19E |
| 7 |
Intelligent Light System, status |
12H |
| 7 |
Intelligent Light System, status |
31E |
| 8 |
Steering angle sensor, signal |
6C |
| 9 |
Steering angle, signal |
11F |
| 9 |
Steering angle, signal |
19E |
| 9 |
Steering angle, signal |
11L |
| 9 |
Steering angle, signal |
31E |

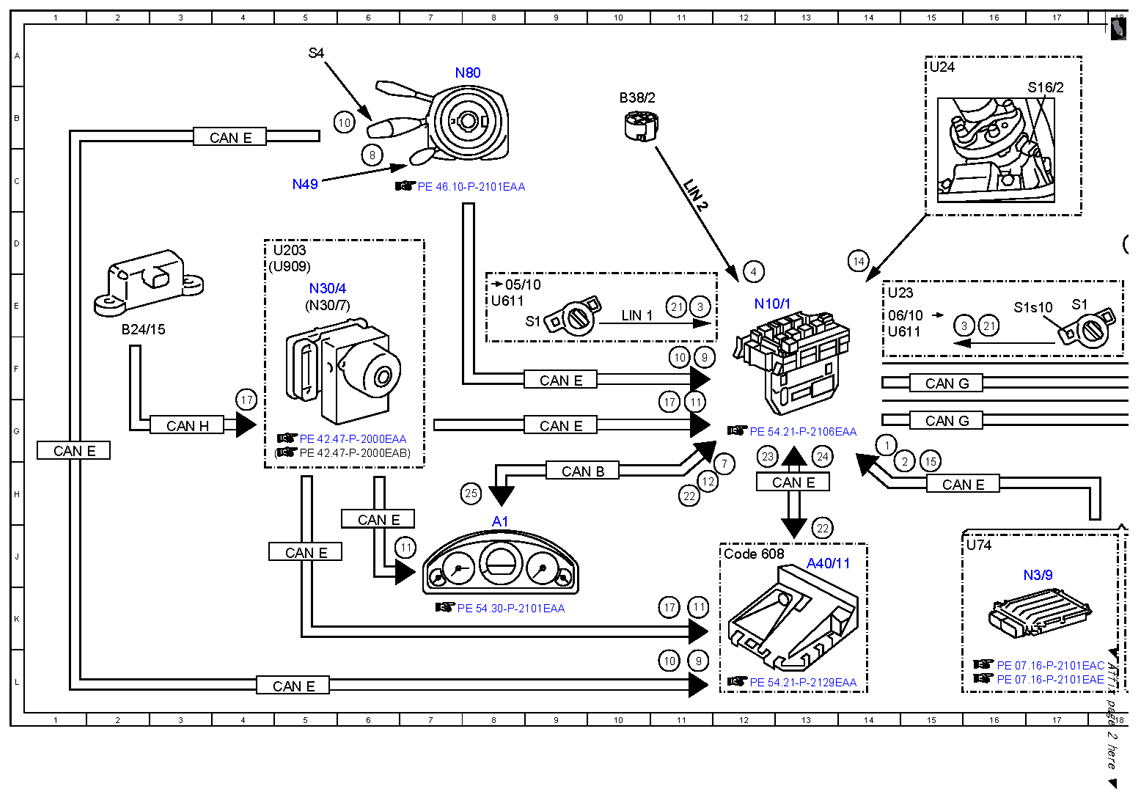

| A1 |
Instrument cluster |
8J |
| A40/11 |
Multifunction camera |
13J |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
2E |
| B38/2 |
Rain/light sensor |
10B |
| CAN B |
Interior CAN |
9H |
| CAN C |
Drive train CAN |
21H |
| CAN E |
Chassis CAN |
5J |
| CAN E |
Chassis CAN |
9G |
| CAN E |
Chassis CAN |
15H |
| CAN E |
Chassis CAN |
1G |
| CAN E |
Chassis CAN |
5L |
| CAN E |
Chassis CAN |
4B |
| CAN E |
Chassis CAN |
9F |
| CAN E |
Chassis CAN |
13H |
| CAN E |
Chassis CAN |
6J |
| CAN G |
Front end CAN |
15G |
| CAN G |
Front end CAN |
15F |
| CAN G |
Front end CAN |
21G |
| CAN G |
Front end CAN |
28G |
| CAN H |
Vehicle dynamics CAN |
3G |
| Code 608 |
Adaptive Highbeam Assist |
12J |

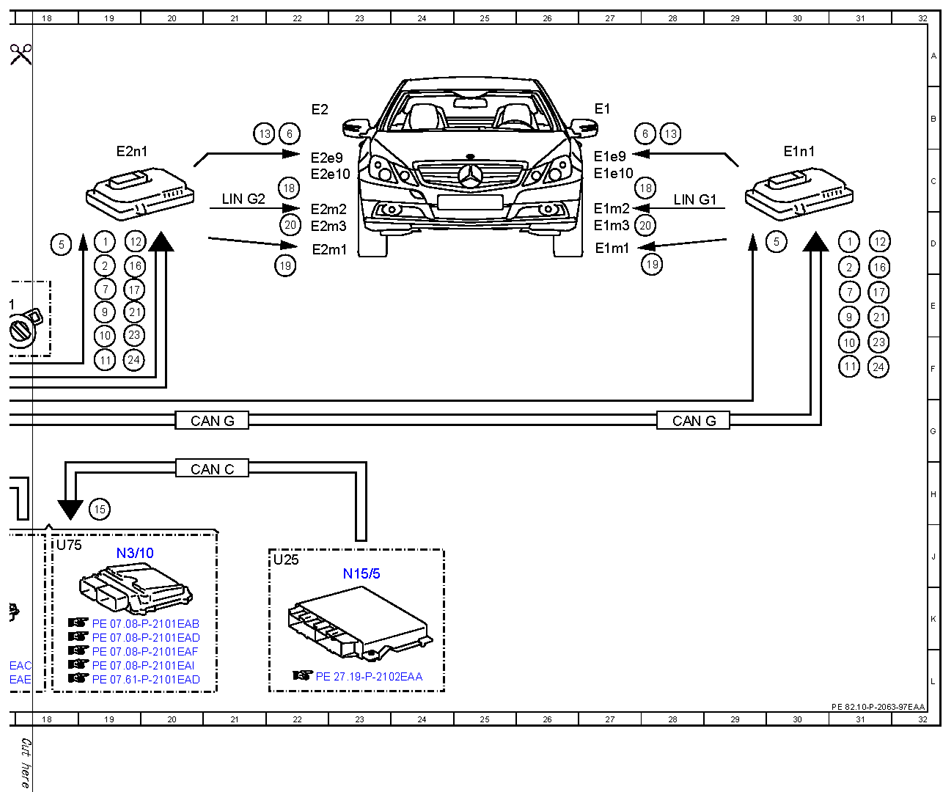

| E1 |
Left front lamp unit |
27B |
| E1e10 |
Left xenon bulb with integrated ignition module |
27C |
| E1e9 |
Left cornering illumination |
27C |
| E1m1 |
Left headlamp range adjustment actuator motor |
27D |
| E1m2 |
Left active curve illumination actuator motor |
27D |
| E1m3 |
Left light distribution actuator motor |
27D |
| E1n1 |
Left xenon lamp control unit |
30C |
| E2 |
Right front lamp unit |
22B |
| E2e10 |
Right xenon bulb with integrated ignition module |
22C |
| E2e9 |
Right cornering illumination |
22C |
| E2m1 |
Right headlamp range adjustment actuator motor |
22D |
| E2m2 |
Right active curve illumination actuator motor |
22D |
| E2m3 |
Right light distribution actuator motor |
22D |
| E2n1 |
Right xenon light control unit |
19C |
| LIN 1 |
Instrument panel LIN |
10E |
| LIN 2 |
Wiper/inside rearview mirror LIN |
11C |
| LIN G1 |
Left headlamp LIN |
28C |
| LIN G2 |
Right headlamp LIN |
21C |
| N10/1 |
Front SAM control unit with fuse and relay module |
12E |
| N15/5 |
Electronic selector lever module control unit |
23J |
| N3/10 |
ME-SFI [ME] control unit |
19J |
| N3/9 |
CDI control unit |
17J |
| N30/4 |
Electronic Stability Program control unit |
5E |
| N30/7 |
Premium Electronic Stability Program control unit |
5E |
| N49 |
Steering angle sensor |
5C |
| N80 |
Steering column module control unit |
7A |
| S1 |
Exterior lights switch |
17E |
| S1 |
Exterior lights switch |
9E |
| S16/2 |
Backup lamp switch |
17B |
| S1s10 |
Rear fog light button |
16E |
| S4 |
Combination switch |
5A |
| U203 |
Valid without DISTRONIC PLUS |
4D |
| U24 |
Valid for manual transmission |
15A |
| U25 |
Valid for automatic transmission |
22J |
| U74 |
Valid for diesel engines |
16J |
| U75 |
Valid for gasoline engines |
18J |
| U909 |
Valid for DISTRONIC PLUS |
4D |
