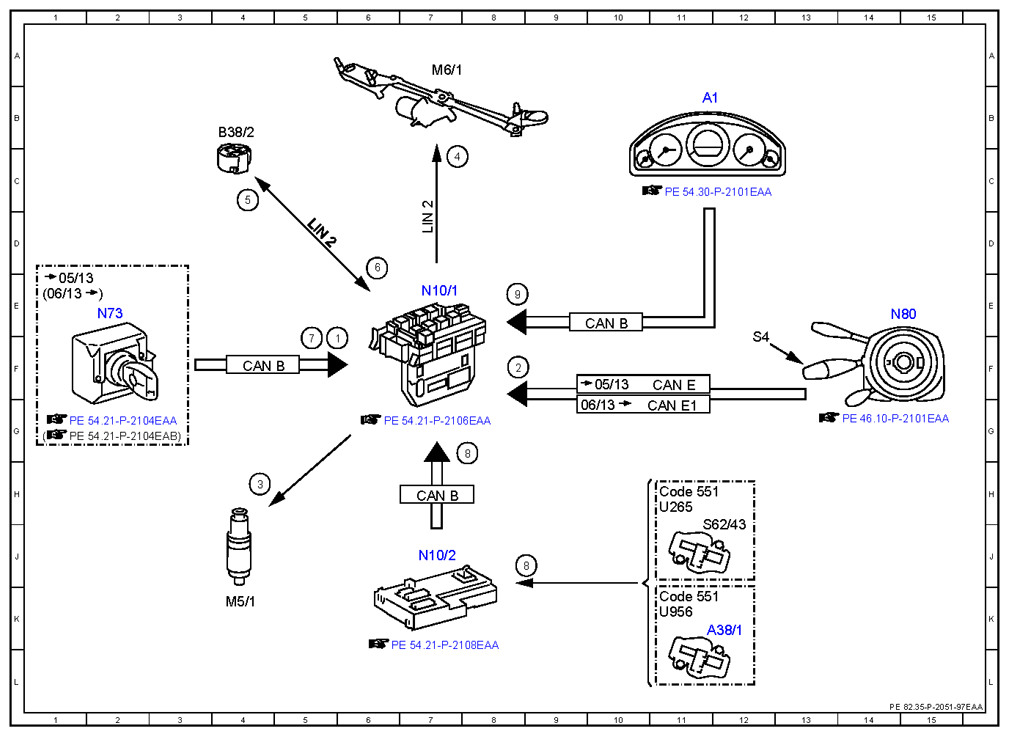

| 1 |
Circuit 15, status |
6F |
| 2 |
Combination switch, status |
8F |
| 3 |
Windshield washer system pump, actuation |
4H |
| 4 |
Wiper motor, actuation |
7B |
| 5 |
Re-wipe, status |
4C |
| 6 |
Rain/light sensor, status |
6D |
| 7 |
Circuit 50, status |
5E |
| 8 |
Engine hood contact switch, status |
8G |
| 8 |
Engine hood contact switch, status |
8J |
| 9 |
Vehicle speed, signal |
8E |
| A1 |
Instrument cluster |
11B |
| A38/1 |
Pedestrian protection Hall sensor + engine hood ATA [EDW] switch |
12K |
| B38/2 |
Rain/light sensor |
4B |
| CAN B |
Interior CAN |
4F |
| CAN B |
Interior CAN |
10E |
| CAN B |
Interior CAN |
7H |
| CAN E |
Chassis CAN |
11F |
| CAN E1 |
Chassis CAN 1 |
11G |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
11H |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
11K |
| LIN 2 |
Wiper/inside rearview mirror LIN |
7D |
| LIN 2 |
Wiper/inside rearview mirror LIN |
5D |
| M5/1 |
Windshield washer system pump |
4K |
| M6/1 |
Wiper motor |
7A |
| N10/1 |
Front SAM control unit with fuse and relay module |
7E |
| N10/2 |
Rear SAM control unit with fuse and relay module |
7J |
| N73 |
Electronic ignition switch control unit |
2E |
| N80 |
Steering column module control unit |
14E |
| S4 |
Combination switch |
12F |
| S62/43 |
Left engine hood contact switch |
12J |
| U265 |
Not valid for pedestrian protection |
11H |
| U956 |
Valid for pedestrian protection |
11K |
