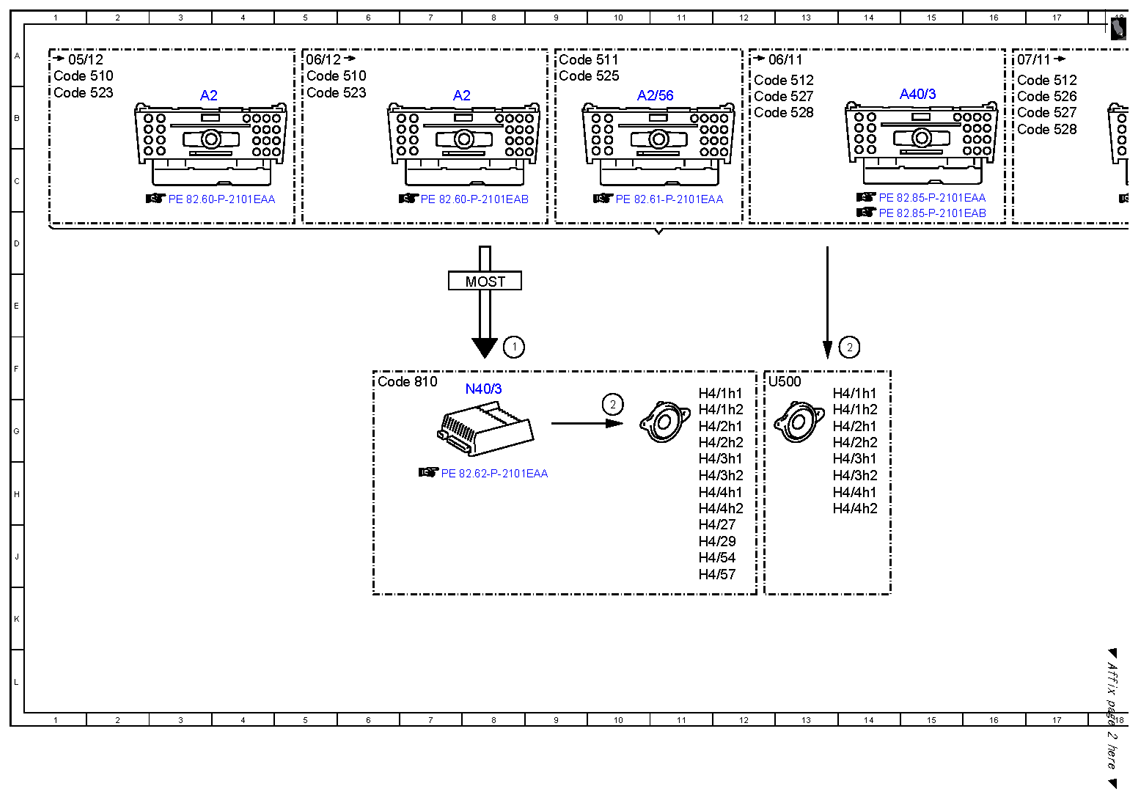

| 1 |
Audio, signal |
8F |
| 2 |
Speaker, actuation |
14F |
| 2 |
Speaker, actuation |
10G |
| A2 |
Radio |
3B |
| A2 |
Radio |
7B |
| A2/56 |
Radio with auto pilot system |
10B |

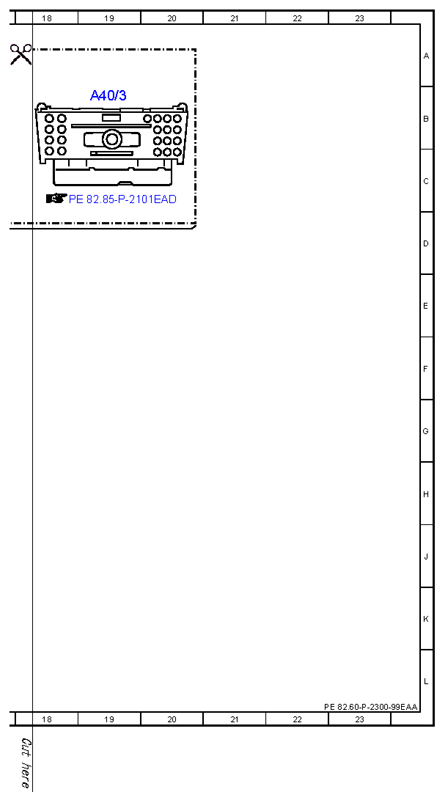

| A40/3 |
COMAND control unit |
14B |
| A40/3 |
COMAND control unit |
19B |
| Code 510 |
Audio 20 with CD changer |
5A |
| Code 510 |
Audio 20 with CD changer |
1A |
| Code 511 |
Audio 50 APS incl. DVD changer |
9A |
| Code 512 |
COMAND APS with DVD changer |
12A |
| Code 512 |
COMAND APS with DVD changer |
16A |
| Code 523 |
Audio 20 radio |
5B |
| Code 523 |
Audio 20 radio |
1B |
| Code 525 |
Audio 50 APS radio (CD) |
9A |
| Code 526 |
COMAND with single DVD drive (without navigation) |
16B |
| Code 527 |
COMAND APS (with navigation) |
12B |
| Code 527 |
COMAND APS (with navigation) |
16B |
| Code 528 |
COMAND with DVD changer |
12B |
| Code 528 |
COMAND with DVD changer |
16B |
| Code 810 |
Sound system |
6F |
| H4/1h1 |
Left door tweeter |
13F |
| H4/1h1 |
Left door tweeter |
11F |
| H4/1h2 |
Left door bass speaker |
13G |
| H4/1h2 |
Left door bass speaker |
11G |
| H4/27 |
Center instrument panel speaker |
11J |
| H4/29 |
Rear shelf bass speaker |
11J |
| H4/2h1 |
Right door tweeter |
13G |
| H4/2h1 |
Right door tweeter |
11G |
| H4/2h2 |
Right door bass speaker |
13G |
| H4/2h2 |
Right door bass speaker |
11G |
| H4/3h1 |
Left rear tweeter |
13H |
| H4/3h1 |
Left rear tweeter |
11H |
| H4/3h2 |
Left rear bass speaker |
13H |
| H4/3h2 |
Left rear bass speaker |
11H |
| H4/4h1 |
Right rear tweeter |
13H |
| H4/4h1 |
Right rear tweeter |
11H |
| H4/4h2 |
Right rear bass speaker |
13H |
| H4/4h2 |
Right rear bass speaker |
11H |
| H4/54 |
Left rear surround speaker |
11J |
| H4/57 |
Right rear surround speaker |
11J |
| MOST |
Media Oriented System Transport |
8E |
| N40/3 |
Sound system amplifier control unit |
8F |
| U500 |
Not valid for sound system |
12F |
