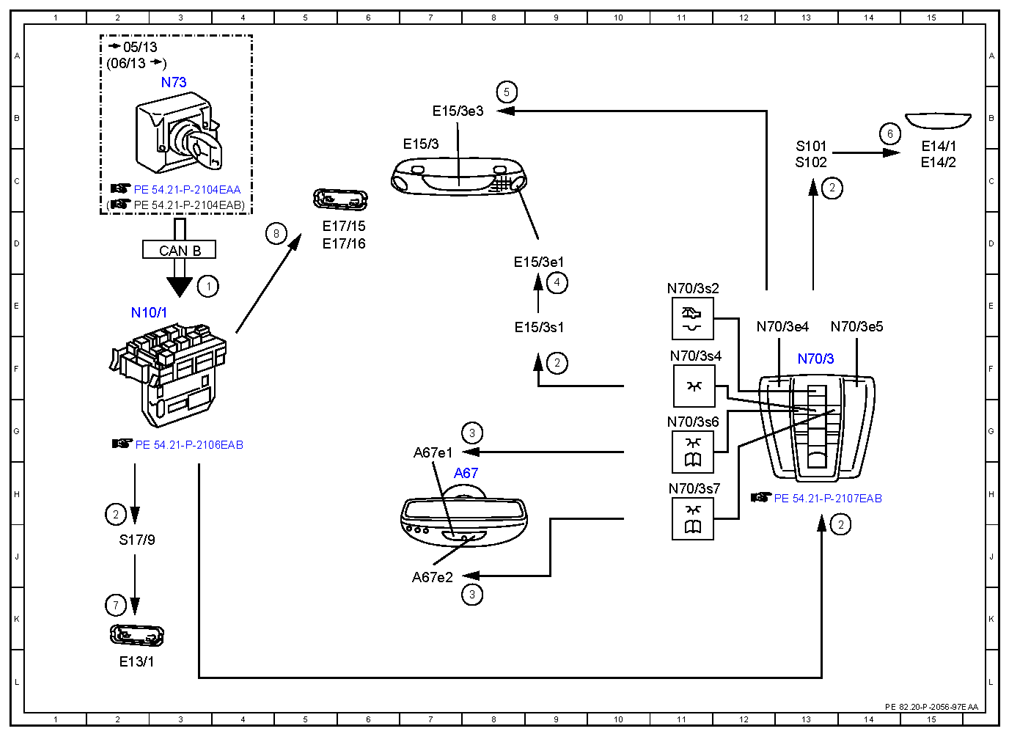

| 1 |
Circuit 15, status |
3E |
| 2 |
Power supply, status ON |
9F |
| 2 |
Power supply, status ON |
13C |
| 2 |
Power supply, status ON |
14J |
| 2 |
Power supply, status ON |
2H |
| 3 |
Front reading lamp, actuation |
8G |
| 3 |
Front reading lamp, actuation |
8K |
| 4 |
Rear reading lamp, actuation |
9E |
| 5 |
Rear interior lamp, actuation |
8B |
| 6 |
Sun visor mirror lamp, actuation |
14B |
| 7 |
Glove compartment lamp, actuation |
2K |
| 8 |
Footwell lamp, actuation |
5D |
| A67 |
Inside rearview mirror |
7H |
| A67e1 |
Left reading lamp |
7G |
| A67e2 |
Right reading lamp |
7J |
| CAN B |
Interior CAN |
3D |
| E13/1 |
Glove box lamp |
2L |
| E14/1 |
Left sun visor mirror lamp |
15C |
| E14/2 |
Right sun visor mirror lamp |
15C |
| E15/3 |
Rear dome lamp |
7B |
| E15/3e1 |
Left rear reading lamp |
9D |
| E15/3e3 |
Rear interior lamp |
7B |
| E15/3s1 |
Left rear reading lamp switch |
9E |
| E17/15 |
Right front footwell lamp |
5D |
| E17/16 |
Left front footwell lamp |
5D |
| N10/1 |
Front SAM control unit with fuse and relay module |
2E |
| N70/3 |
Overhead control panel electronics |
13F |
| N70/3e4 |
Left front interior lamp |
12E |
| N70/3e5 |
Right front interior lamp |
14E |
| N70/3s2 |
Rear dome lamp switch |
11E |
| N70/3s4 |
Front dome lamp switch |
11F |
| N70/3s6 |
Left front reading lamp switch |
11G |
| N70/3s7 |
Right front reading lamp switch |
11H |
| N73 |
Electronic ignition switch control unit |
3B |
| S101 |
Left front mirror lamp switch |
13C |
| S102 |
Right front mirror lamp switch |
13C |
| S17/9 |
Glove box lamp switch |
2J |
