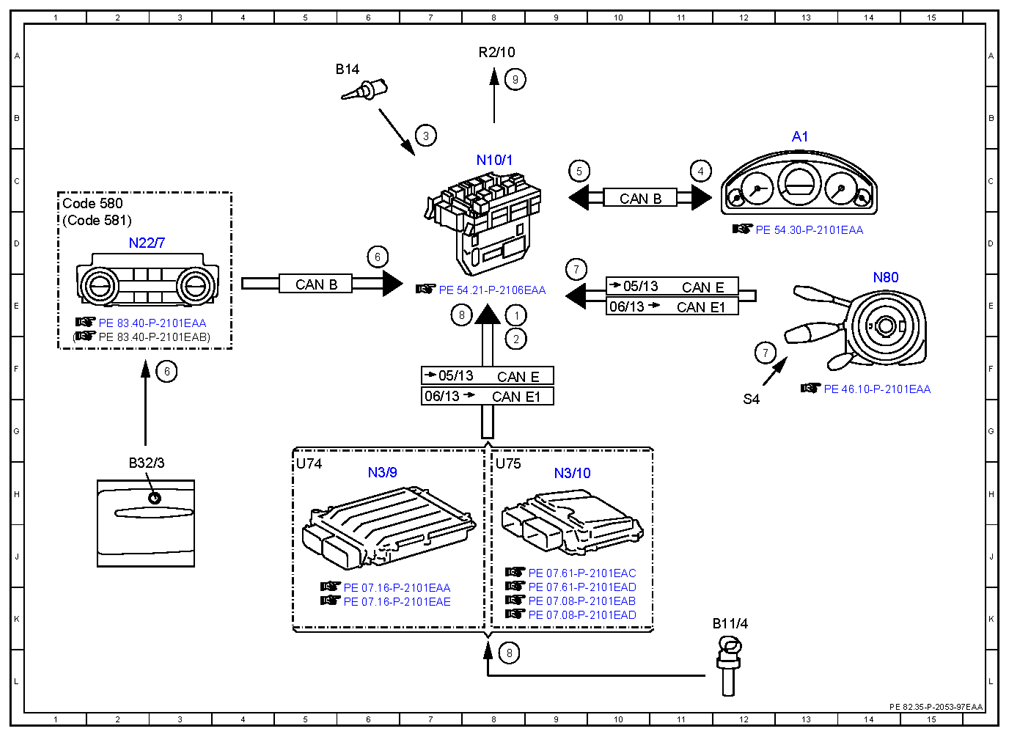

| 1 |
Engine running, signal |
8E |
| 2 |
Drivetrain operational, signal |
8E |
| 3 |
Outside temperature sensor, signal |
7B |
| 4 |
Outside temperature, signal |
11C |
| 5 |
Displayed outside temperature, signal |
9C |
| 6 |
Sun sensor, signal |
6D |
| 6 |
Sun sensor, signal |
3F |
| 7 |
Combination switch, status |
9D |
| 7 |
Combination switch, status |
12F |
| 8 |
Coolant temperature sensor, signal |
7E |
| 8 |
Coolant temperature sensor, signal |
8K |
| 9 |
Wiper park position heater, actuation |
8A |
| A1 |
Instrument cluster |
13B |
| B11/4 |
Coolant temperature sensor |
12K |
| B14 |
Outside temperature sensor |
6A |
| B32/3 |
Sun sensor |
2H |
| CAN B |
Interior CAN |
5E |
| CAN B |
Interior CAN |
10C |
| CAN E |
Chassis CAN |
8F |
| CAN E |
Chassis CAN |
11E |
| CAN E1 |
Chassis CAN 1 |
8G |
| CAN E1 |
Chassis CAN 1 |
11E |
| Code 580 |
Automatic air conditioning |
1C |
| Code 581 |
Comfort automatic air conditioning |
1D |
| N10/1 |
Front SAM control unit with fuse and relay module |
8C |
| N22/7 |
Automatic air conditioning control and operating unit |
2D |
| N3/10 |
ME-SFI [ME] control unit |
9H |
| N3/9 |
CDI control unit |
6H |
| N80 |
Steering column module control unit |
14E |
| R2/10 |
Wiper park heater |
8A |
| S4 |
Combination switch |
12G |
| U74 |
Valid for diesel engines |
5H |
| U75 |
Valid for gasoline engines |
8H |
