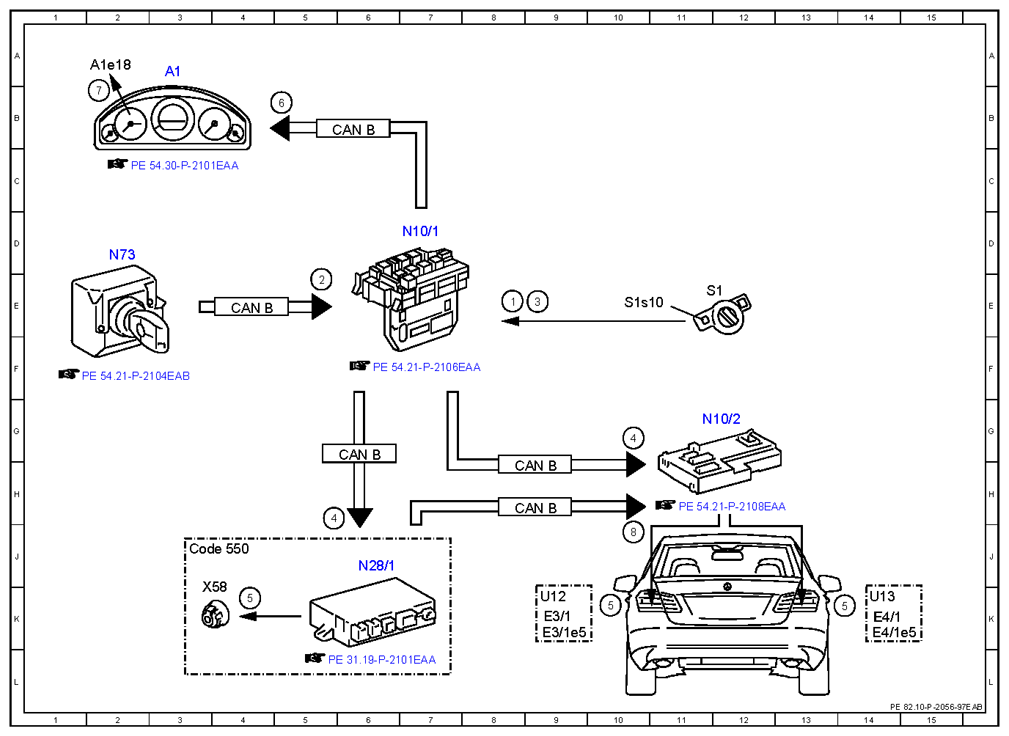

| 1 |
Exterior lights switch, status |
8E |
| 2 |
Circuit 15, status |
5E |
| 3 |
Rear fog light button, status |
9E |
| 4 |
Rear fog light, request |
10G |
| 4 |
Rear fog light, request |
5H |
| 5 |
Rear fog light, actuation |
10K |
| 5 |
Rear fog light, actuation |
14K |
| 5 |
Rear fog light, actuation |
4K |
| 6 |
Rear fog light indicator lamp, request |
5B |
| 7 |
Rear fog light indicator light, actuation |
2B |
| 8 |
Trailer recognition, status |
10J |
| A1 |
Instrument cluster |
3A |
| A1e18 |
Rear fog lamp indicator lamp |
2A |
| CAN B |
Interior CAN |
6G |
| CAN B |
Interior CAN |
4E |
| CAN B |
Interior CAN |
9H |
| CAN B |
Interior CAN |
6B |
| CAN B |
Interior CAN |
9H |
| Code 550 |
Trailer hitch |
3J |
| E3/1 |
Inner left rear lamp unit |
9K |
| E3/1e5 |
Left rear fog lamp |
9K |
| E4/1 |
Inner right rear lamp unit |
14K |
| E4/1e5 |
Right rear fog lamp |
14K |
| N10/1 |
Front SAM control unit with fuse and relay module |
7D |
| N10/2 |
Rear SAM control unit with fuse and relay module |
11G |
| N28/1 |
Trailer recognition control unit |
6J |
| N73 |
Electronic ignition switch control unit |
2D |
| S1 |
Exterior lights switch |
11E |
| S1s10 |
Rear fog light button |
10E |
| U12 |
Valid for left-hand drive vehicles |
9K |
| U13 |
Valid for right-hand drive vehicles |
14K |
| X58 |
Trailer socket |
3K |
