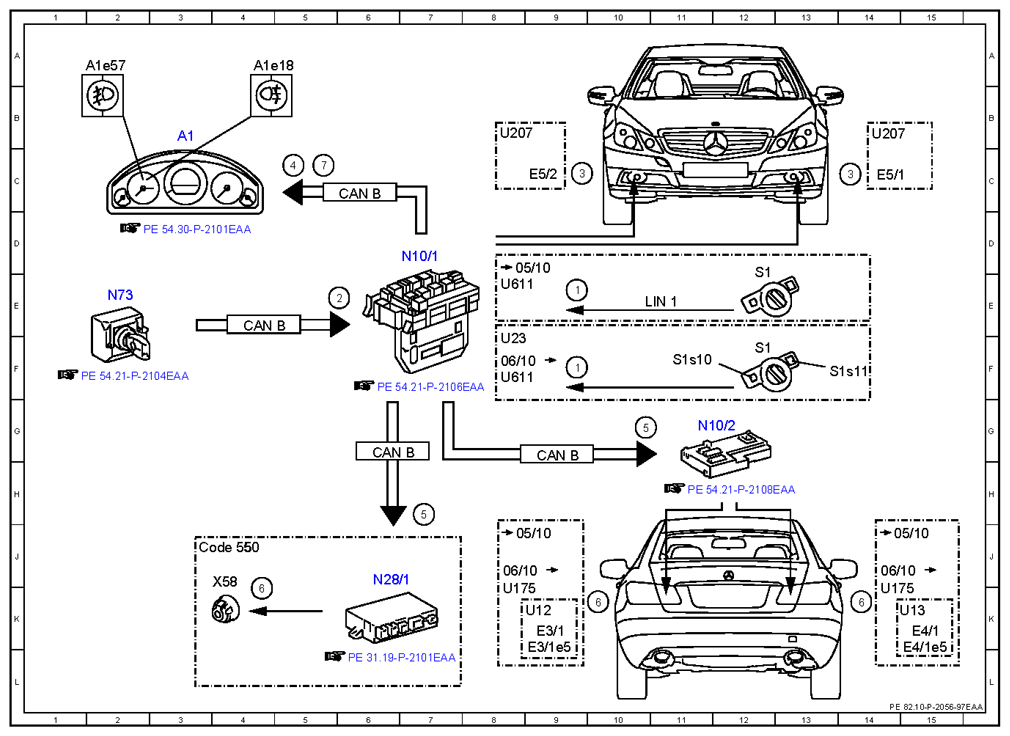

| 1 |
Exterior lights switch, status |
9F |
| 1 |
Exterior lights switch, status |
9E |
| 2 |
Circuit 15, status |
6E |
| 3 |
Front fog lamps, actuation |
9C |
| 3 |
Front fog lamps, actuation |
14C |
| 4 |
Front fog lamps indicator lamp, actuation |
5C |
| 5 |
Rear fog light, request |
7H |
| 5 |
Rear fog light, request |
10G |
| 6 |
Rear fog light, actuation |
4K |
| 6 |
Rear fog light, actuation |
10K |
| 6 |
Rear fog light, actuation |
14K |
| 7 |
Rear fog light indicator light, actuation |
5C |
| A1 |
Instrument cluster |
3B |
| A1e18 |
Rear fog lamp indicator lamp |
4A |
| A1e57 |
Front fog lamps indicator lamp |
1A |
| CAN B |
Interior CAN |
6G |
| CAN B |
Interior CAN |
4E |
| CAN B |
Interior CAN |
9G |
| CAN B |
Interior CAN |
6C |
| Code 550 |
Trailer hitch |
3J |
| E3/1 |
Inner left rear lamp unit |
9K |
| E3/1e5 |
Left rear fog lamp |
9L |
| E4/1 |
Inner right rear lamp unit |
15K |
| E4/1e5 |
Right rear fog lamp |
15L |
| E5/1 |
Left fog lamp |
14C |
| E5/2 |
Right fog lamp |
9C |
| LIN 1 |
Instrument panel LIN |
11E |
| N10/1 |
Front SAM control unit with fuse and relay module |
7D |
| N10/2 |
Rear SAM control unit with fuse and relay module |
11G |
| N28/1 |
Trailer recognition control unit |
6J |
| N73 |
Electronic ignition switch control unit |
2E |
| S1 |
Exterior lights switch |
12F |
| S1 |
Exterior lights switch |
12E |
| S1s10 |
Rear fog light button |
11F |
| S1s11 |
Front fog lamp button |
13F |
| U12 |
Valid for left-hand drive vehicles |
9K |
| U13 |
Valid for right-hand drive vehicles |
14K |
| U175 |
Valid for all except {{USA}} and {{Kanada}} |
8K |
| U175 |
Valid for all except {{USA}} and {{Kanada}} |
14K |
| U207 |
Valid for vehicles without headlamps with LED-type daytime running lights |
8B |
| U207 |
Valid for vehicles without headlamps with LED-type daytime running lights |
14B |
| X58 |
Trailer socket |
4J |
