| 1 |
Circuit 15, status |
10E |
| 10 |
High beam indicator lamp, actuation |
8K |
| 11 |
Daytime running lights, request |
10G |
| 11 |
Daytime running lights, request |
17F |
| 11 |
Daytime running lights, request |
14F |
| 12 |
Engine running, signal |
11H |
| 12 |
Engine running, signal |
17F |
| 12 |
Engine running, signal |
13E |
| 13 |
Drivetrain operational, signal |
12H |
| 13 |
Drivetrain operational, signal |
13F |
| 13 |
Drivetrain operational, signal |
17E |
| 14 |
Vehicle speed, signal |
10H |
| 15 |
Daytime running lights, actuation |
17D |
| 15 |
Daytime running lights, actuation |
13D |
| 16 |
Rain/light sensor, status |
8E |
| 17 |
Level sensor, signal |
11G |
| 17 |
Level sensor, signal |
20F |
| 17 |
Level sensor, signal |
17D |
| 17 |
Level sensor, signal |
13E |
| 17 |
Level sensor, signal |
17F |
| 18 |
Wheel speed, signal |
8F |
| 18 |
Wheel speed, signal |
13F |
| 18 |
Wheel speed, signal |
17F |
| 19 |
Synchronization, signal |
14F |
| 2 |
Exterior lights switch, status |
8D |
| 20 |
Headlamp range adjustment actuator motor, actuation |
17C |
| 20 |
Headlamp range adjustment actuator motor, actuation |
13C |
| 3 |
Low beams, request |
17E |
| 3 |
Low beams, request |
14F |
| 4 |
Low beams, actuation |
17C |
| 4 |
Low beams, actuation |
13C |
| 5 |
Low beams indicator lamp, request |
10J |
| 6 |
Low beams indicator lamp, actuation |
11K |
| 7 |
Combination switch, status |
9G |
| 7 |
Combination switch, status |
5K |
| 8 |
High beams, actuation |
18B |
| 8 |
High beams, actuation |
12B |
| 9 |
High beams indicator lamp, request |
10J |

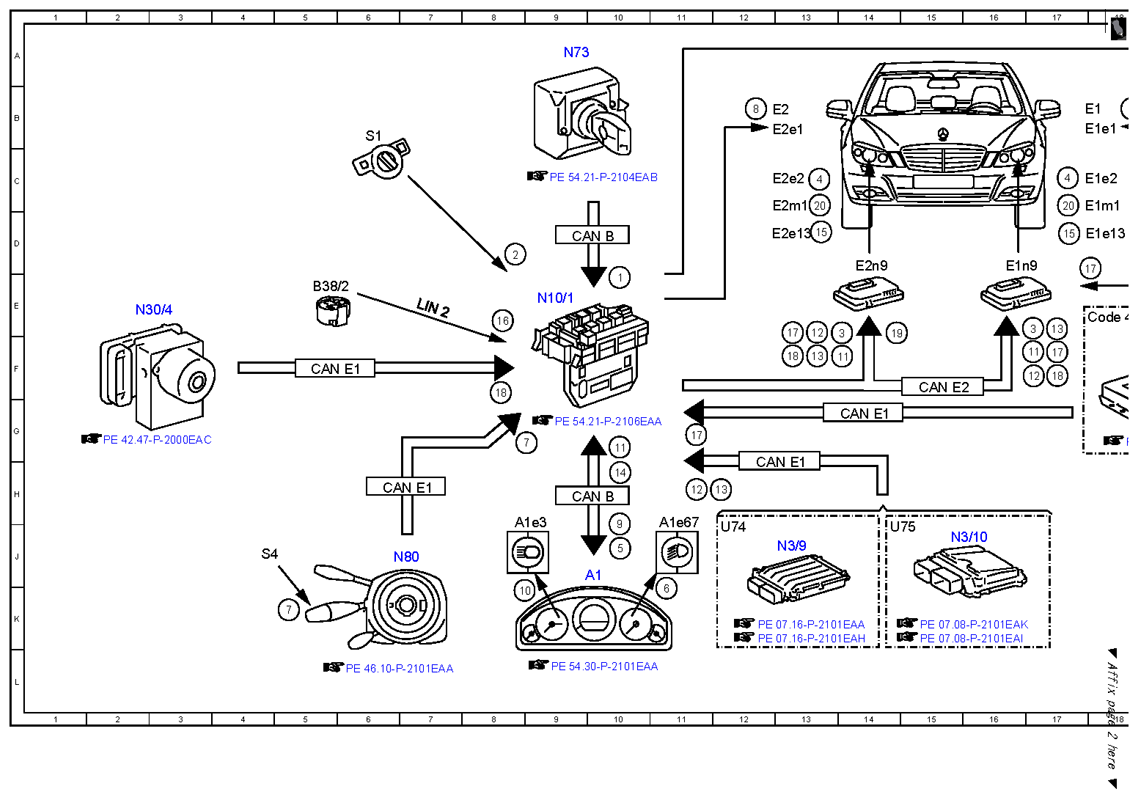

| A1 |
Instrument cluster |
9J |
| A1e3 |
High beam indicator lamp |
8J |
| A1e67 |
Low beam indicator lamp |
11J |
| B22/10 |
Right rear level sensor |
21G |
| B22/7 |
Left rear level sensor |
21F |
| B22/7 |
Left rear level sensor |
20D |
| B22/8 |
Left front level sensor |
21F |
| B22/8 |
Left front level sensor |
20E |
| B22/9 |
Right front level sensor |
21F |
| B38/2 |
Rain/light sensor |
5E |
| CAN B |
Interior CAN |
9H |
| CAN B |
Interior CAN |
9D |
| CAN E1 |
Chassis CAN 1 |
6H |
| CAN E1 |
Chassis CAN 1 |
12H |
| CAN E1 |
Chassis CAN 1 |
5F |
| CAN E1 |
Chassis CAN 1 |
14G |
| CAN E2 |
Chassis CAN 2 |
15F |

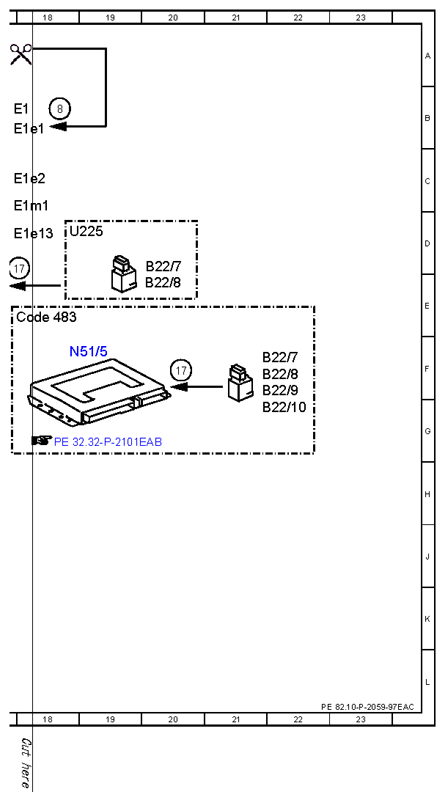

| Code 483 |
Vehicle dynamics package |
17E |
| E1 |
Left front lamp unit |
17B |
| E1e1 |
Left high beam |
17B |
| E1e13 |
Left parking light and daytime running light |
17D |
| E1e2 |
Left low beam |
17C |
| E1m1 |
Left headlamp range adjustment actuator motor |
17C |
| E1n9 |
Left headlamp control unit |
16D |
| E2 |
Right front lamp unit |
12B |
| E2e1 |
Right high beam |
12B |
| E2e13 |
Right parking light and daytime running light |
12D |
| E2e2 |
Right low beam |
12C |
| E2m1 |
Right headlamp range adjustment actuator motor |
12C |
| E2n9 |
Right headlamp control unit |
14D |
| LIN 2 |
Wiper/inside rearview mirror LIN |
7E |
| N10/1 |
Front SAM control unit with fuse and relay module |
9E |
| N3/10 |
ME-SFI [ME] control unit |
15J |
| N3/9 |
CDI control unit |
13J |
| N30/4 |
Electronic Stability Program control unit |
2E |
| N51/5 |
Adaptive damping system control unit |
19F |
| N73 |
Electronic ignition switch control unit |
9A |
| N80 |
Steering column module control unit |
6J |
| S1 |
Exterior lights switch |
6B |
| S4 |
Combination switch |
4J |
| U225 |
Valid without code 483 Vehicle dynamics package |
18D |
| U74 |
Valid for diesel engines |
12J |
| U75 |
Valid for gasoline engines |
14J |
