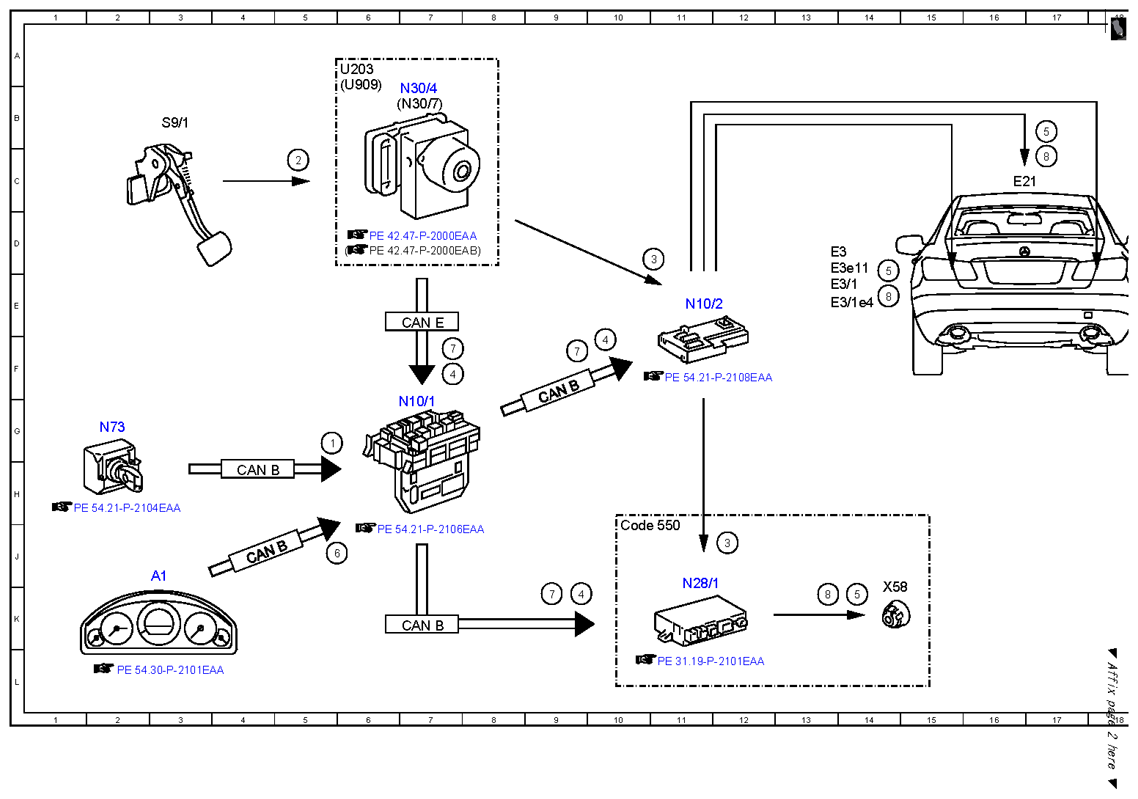

| 1 |
Circuit 15, status |
5G |
| 2 |
Brake light switch, status |
5C |
| 3 |
Circuit 54, status |
12J |
| 3 |
Circuit 54, status |
11D |
| 4 |
Service brake, status |
9K |
| 4 |
Service brake, status |
7F |
| 4 |
Service brake, status |
10F |
| 5 |
Brake lights, actuation |
14K |
| 5 |
Brake lights, actuation |
14E |
| 5 |
Brake lights, actuation |
19E |
| 5 |
Brake lights, actuation |
17B |
| 6 |
Vehicle speed, signal |
5J |
| 7 |
Emergency stop, signal |
7F |
| 7 |
Emergency stop, signal |
9F |
| 7 |
Emergency stop, signal |
9K |
| 8 |
Flashing brake lights, actuation |
17C |
| 8 |
Flashing brake lights, actuation |
14E |
| 8 |
Flashing brake lights, actuation |
19E |
| 8 |
Flashing brake lights, actuation |
13K |
| A1 |
Instrument cluster |
3J |
| CAN B |
Interior CAN |
9F |
| CAN B |
Interior CAN |
4H |
| CAN B |
Interior CAN |
7K |
| CAN B |
Interior CAN |
4J |
| CAN E |
Chassis CAN |
7E |
| Code 550 |
Trailer hitch |
10J |
| E21 |
Center stop lamp |
16C |
| E3 |
Left rear lamp unit |
13D |
| E3/1 |
Inner left rear lamp unit |
13E |
| E3/1e4 |
Inner left stop lamp and taillamp |
13E |
| E3e11 |
Outer left brake light and taillight |
13D |

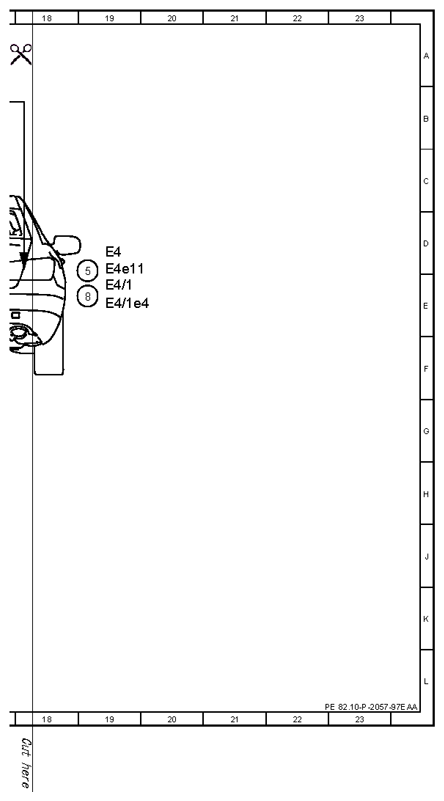

| E4 |
Right rear lamp unit |
19D |
| E4/1 |
Inner right rear lamp unit |
19E |
| E4/1e4 |
Inner right brake light and taillight |
19E |
| E4e11 |
Outer right brake light and taillight |
19D |
| N10/1 |
Front SAM control unit with fuse and relay module |
7G |
| N10/2 |
Rear SAM control unit with fuse and relay module |
11E |
| N28/1 |
Trailer recognition control unit |
11K |
| N30/4 |
Electronic Stability Program control unit |
7B |
| N30/7 |
Premium Electronic Stability Program control unit |
6B |
| N73 |
Electronic ignition switch control unit |
2G |
| S9/1 |
Stop lamp switch |
3B |
| U203 |
Valid without DISTRONIC PLUS |
6A |
| U909 |
Valid for DISTRONIC PLUS |
6B |
| X58 |
Trailer socket |
14K |
