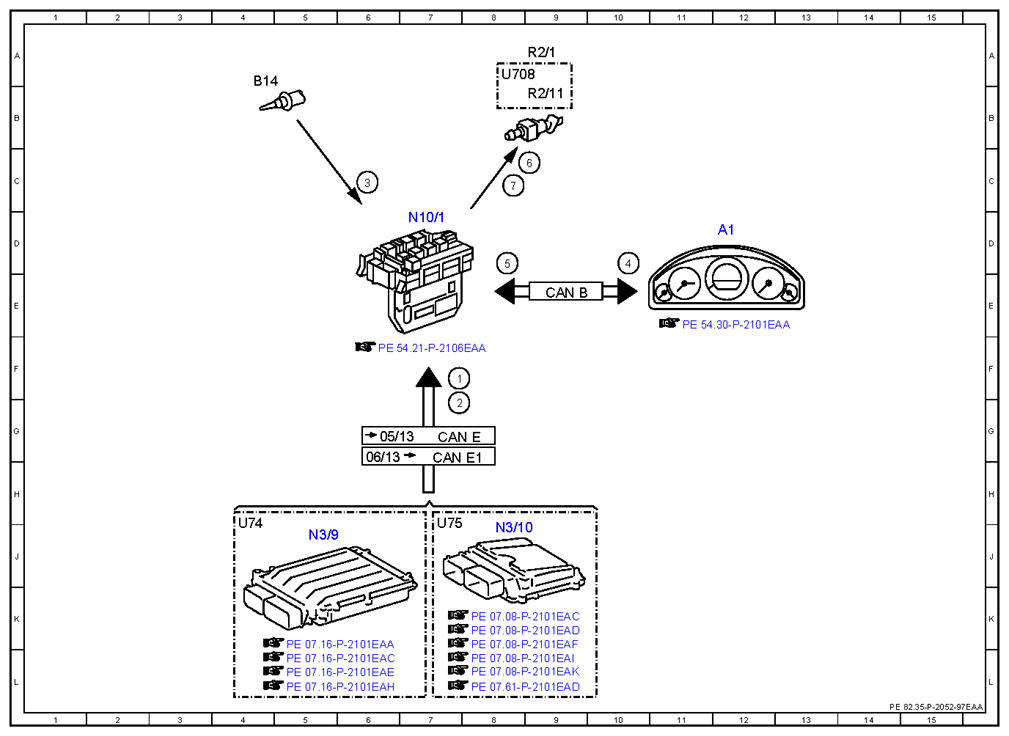

| 1 |
Engine running, signal |
7F |
| 2 |
Drivetrain operational, signal |
7F |
| 3 |
Outside temperature sensor, signal |
6C |
| 4 |
Outside temperature, signal |
10D |
| 5 |
Displayed outside temperature, signal |
8D |
| 6 |
Spray nozzle heater, actuation |
8C |
| 7 |
Spray nozzle hose heater, actuation |
8C |
| A1 |
Instrument cluster |
12D |
| B14 |
Outside temperature sensor |
4A |
| CAN B |
Interior CAN |
9E |
| CAN E |
Chassis CAN |
7G |
| CAN E1 |
Chassis CAN 1 |
7H |
| N10/1 |
Front SAM control unit with fuse and relay module |
7D |
| N3/10 |
ME-SFI [ME] control unit |
8J |
| N3/9 |
CDI control unit |
5J |
| R2/1 |
Spray nozzle heater |
9A |
| R2/11 |
Spray nozzle hose heater |
9B |
| U708 |
Valid for spray nozzle hose heater |
8A |
| U74 |
Valid for diesel engines |
4J |
| U75 |
Valid for gasoline engines |
7J |
