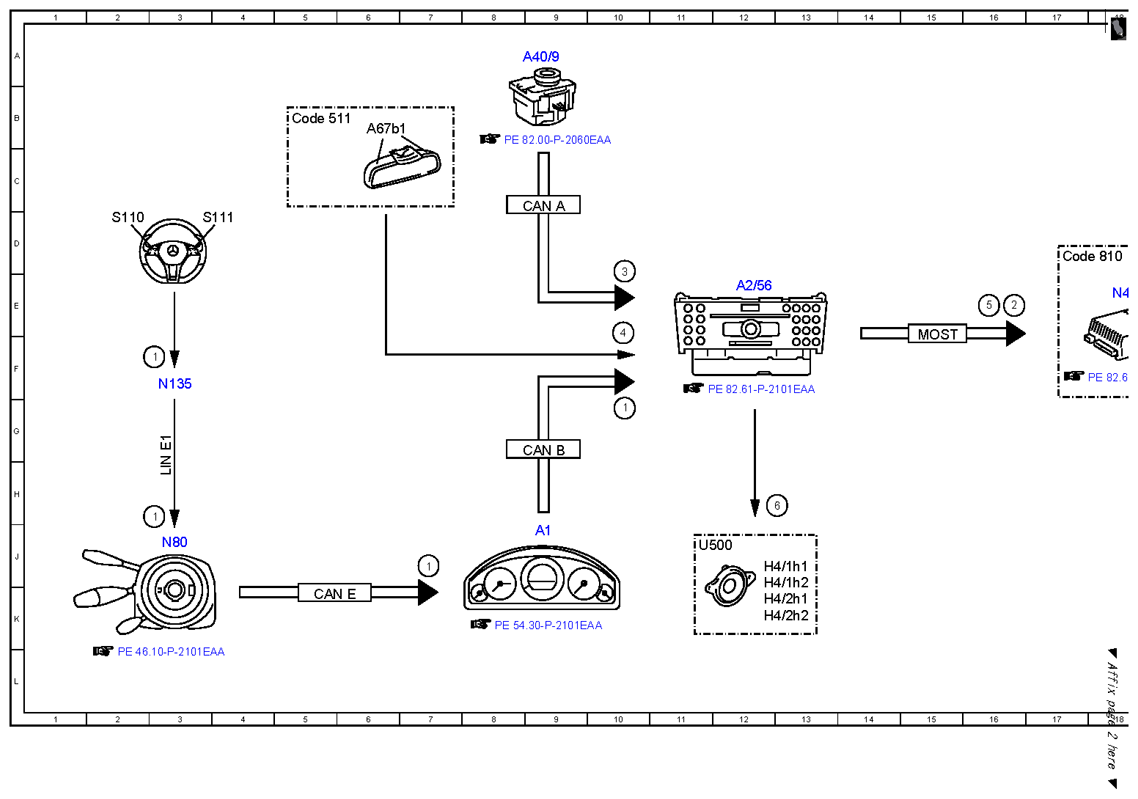

| 1 |
Multifunction steering wheel button group, signal |
3H |
| 1 |
Multifunction steering wheel button group, signal |
7J |
| 1 |
Multifunction steering wheel button group, signal |
10G |
| 1 |
Multifunction steering wheel button group, signal |
3F |
| 2 |
Switch-on request, signal |
16E |
| 3 |
Audio/COMAND controller, request |
10E |
| 4 |
Voice input, signal |
10E |
| 5 |
Audio, signal |
16E |
| 6 |
Speaker, actuation |
13H |
| 6 |
Speaker, actuation |
20E |
| A1 |
Instrument cluster |
9J |
| A2/56 |
Radio with auto pilot system |
12E |
| A40/9 |
Audio/COMAND control panel |
8A |
| A67b1 |
Hands-free system microphone |
6B |
| CAN A |
Telematics CAN |
9C |
| CAN B |
Interior CAN |
9G |
| CAN E |
Chassis CAN |
5K |
| Code 511 |
Audio 50 APS incl. DVD changer |
5B |
| Code 810 |
Sound system |
17D |
| H4/1h1 |
Left door tweeter |
12J |
| H4/1h1 |
Left door tweeter |
21E |
| H4/1h2 |
Left door bass speaker |
12J |
| H4/1h2 |
Left door bass speaker |
21F |
| H4/27 |
Center instrument panel speaker |
21F |
| H4/2h1 |
Right door tweeter |
12K |
| H4/2h1 |
Right door tweeter |
21F |
| H4/2h2 |
Right door bass speaker |
12K |
| H4/2h2 |
Right door bass speaker |
21F |
| LIN E1 |
Steering LIN |
3G |
| MOST |
Media Oriented System Transport |
15F |
| N135 |
Steering wheel electronics |
3F |

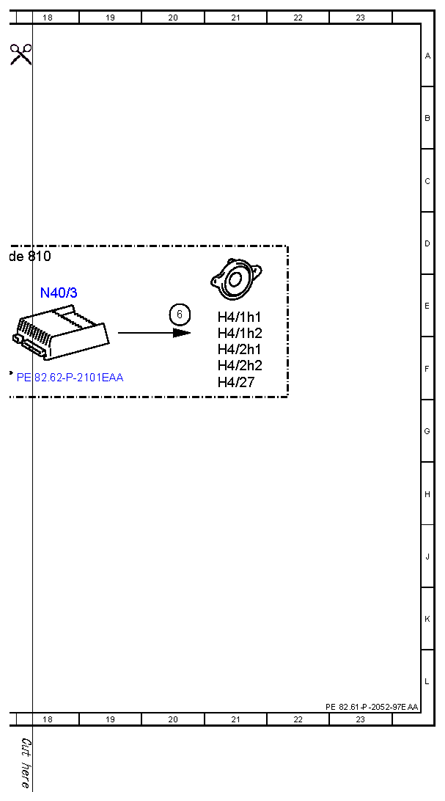

| N40/3 |
Sound system amplifier control unit |
18E |
| N80 |
Steering column module control unit |
3J |
| S110 |
Left multifunction steering wheel button group |
2D |
| S111 |
Right multifunction steering wheel button group |
3D |
| U500 |
Not valid for sound system |
11J |
