| 1 |
Telephone, signal |
5F |
| 1 |
Telephone, signal |
6F |
| 1 |
Telephone, signal |
10F |
| 1 |
Telephone, signal |
14H |
| 2 |
Sound system amplifier, actuation |
18E |
| 3 |
Speaker, actuation |
19G |
| 3 |
Speaker, actuation |
20D |
| 4 |
Audio/COMAND display, message |
15C |
| 5 |
Instrument cluster, message |
10J |
| 6 |
Audio/COMAND controller, request |
12H |
| 7 |
Multifunction steering wheel button group, signal |
2J |
| 7 |
Multifunction steering wheel button group, signal |
7K |
| 7 |
Multifunction steering wheel button group, signal |
11G |
| 7 |
Multifunction steering wheel button group, signal |
3E |
| 8 |
Voice input, signal |
11E |

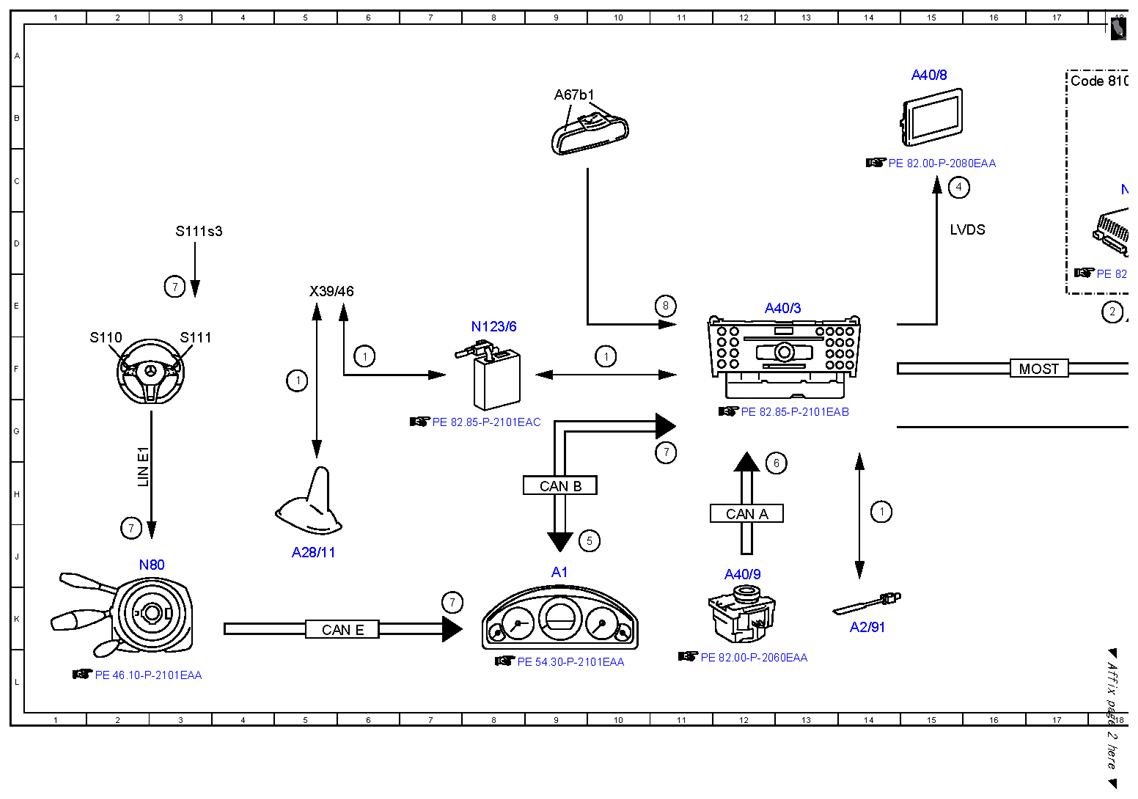

| A1 |
Instrument cluster |
9J |
| A2/91 |
Bluetooth antenna |
14K |
| A28/11 |
Multifunction antenna |
5J |
| A40/3 |
COMAND control unit |
12E |
| A40/8 |
Audio/COMAND display |
15A |
| A40/9 |
Audio/COMAND control panel |
12J |
| A67b1 |
Hands-free system microphone |
9B |
| CAN A |
Telematics CAN |
12H |
| CAN B |
Interior CAN |
9H |
| CAN E |
Chassis CAN |
5K |

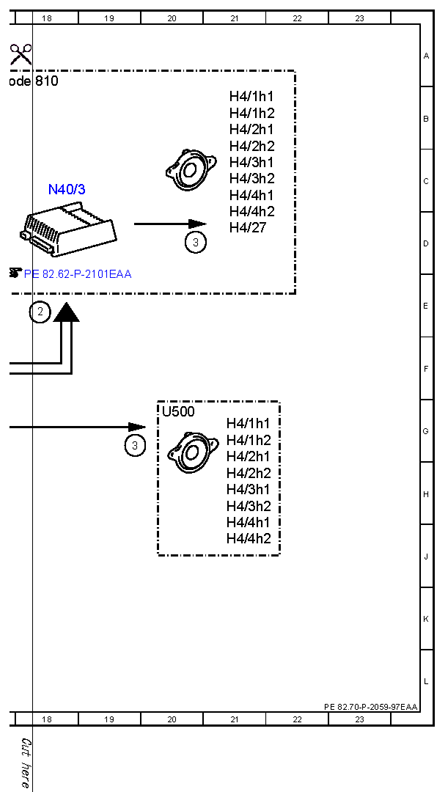

| Code 810 |
Sound system |
17A |
| H4/1h1 |
Left door tweeter |
21G |
| H4/1h1 |
Left door tweeter |
21B |
| H4/1h2 |
Left door bass speaker |
21G |
| H4/1h2 |
Left door bass speaker |
21B |
| H4/27 |
Center instrument panel speaker |
21D |
| H4/2h1 |
Right door tweeter |
21G |
| H4/2h1 |
Right door tweeter |
21B |
| H4/2h2 |
Right door bass speaker |
21H |
| H4/2h2 |
Right door bass speaker |
21C |
| H4/3h1 |
Left rear tweeter |
21H |
| H4/3h1 |
Left rear tweeter |
21C |
| H4/3h2 |
Left rear bass speaker |
21H |
| H4/3h2 |
Left rear bass speaker |
21C |
| H4/4h1 |
Right rear tweeter |
21J |
| H4/4h1 |
Right rear tweeter |
21C |
| H4/4h2 |
Right rear bass speaker |
21J |
| H4/4h2 |
Right rear bass speaker |
21D |
| LIN E1 |
Steering LIN |
2H |
| LVDS |
Low voltage differential signal |
15D |
| MOST |
Media Oriented System Transport |
17F |
| N123/6 |
Communication control unit |
8E |
| N40/3 |
Sound system amplifier control unit |
18C |
| N80 |
Steering column module control unit |
2J |
| S110 |
Left multifunction steering wheel button group |
2F |
| S111 |
Right multifunction steering wheel button group |
3F |
| S111s3 |
Accept/terminate phone call button |
3D |
| U500 |
Not valid for sound system |
20G |
| X39/46 |
Adapter cable electrical connector, Japan |
5E |
