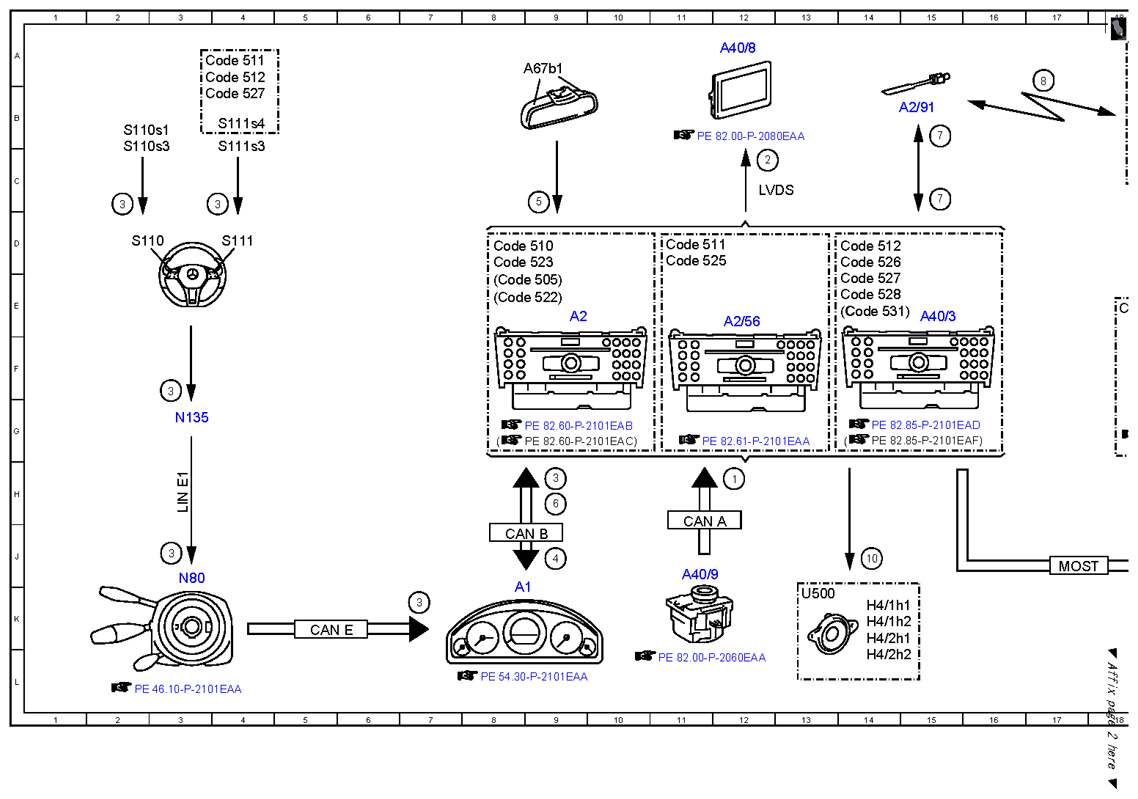

| 1 |
Audio/COMAND controller, request |
12H |
| 10 |
Speaker, actuation |
14J |
| 10 |
Speaker, actuation |
21G |
| 2 |
Audio/COMAND display, message |
12C |
| 3 |
Multifunction steering wheel button group, signal |
3J |
| 3 |
Multifunction steering wheel button group, signal |
7K |
| 3 |
Multifunction steering wheel button group, signal |
9H |
| 3 |
Multifunction steering wheel button group, signal |
2C |
| 3 |
Multifunction steering wheel button group, signal |
4C |
| 3 |
Multifunction steering wheel button group, signal |
3F |
| 4 |
Instrument cluster, message |
9J |
| 5 |
Voice input, signal |
9C |
| 6 |
Kilometer reading and maintenance computer information, signal |
9H |
| 7 |
Telephone, signal |
15B |
| 7 |
Telephone, signal |
20B |
| 7 |
Telephone, signal |
15C |
| 8 |
Bluetooth, signal |
17A |
| 9 |
Sound system amplifier, actuation |
19H |
| A1 |
Instrument cluster |
8K |
| A2 |
Radio |
9E |
| A2/56 |
Radio with auto pilot system |
12E |
| A2/91 |
Bluetooth antenna |
14B |
| A28/11 |
Multifunction antenna |
22C |
| A34/15 |
Mobile phone holder |
19C |
| A34/7 |
Bluetooth module |
19C |
| A40/3 |
COMAND control unit |
15E |
| A40/8 |
Audio/COMAND display |
12A |
| A40/9 |
Audio/COMAND control panel |
11J |
| A67b1 |
Hands-free system microphone |
9A |
| CAN A |
Telematics CAN |
11J |
| CAN B |
Interior CAN |
8J |
| CAN E |
Chassis CAN |
5K |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
8E |
| Code 510 |
Audio 20 with CD changer |
8D |
| Code 511 |
Audio 50 APS incl. DVD changer |
3A |
| Code 511 |
Audio 50 APS incl. DVD changer |
11D |
| Code 512 |
COMAND APS with DVD changer |
3A |
| Code 512 |
COMAND APS with DVD changer |
14D |
| Code 522 |
Audio 20 radio |
8E |
| Code 523 |
Audio 20 radio |
8D |
| Code 525 |
Audio 50 APS radio (CD) |
11D |
| Code 526 |
COMAND with single DVD drive (without navigation) |
14D |
| Code 527 |
COMAND APS (with navigation) |
3B |
| Code 527 |
COMAND APS (with navigation) |
14E |
| Code 528 |
COMAND with DVD changer |
14E |
| Code 531 |
COMAND APS |
14E |
| Code 810 |
Sound system |
18E |
| H4/1h1 |
Left door tweeter |
14K |
| H4/1h1 |
Left door tweeter |
22F |
| H4/1h2 |
Left door bass speaker |
14K |
| H4/1h2 |
Left door bass speaker |
22F |
| H4/27 |
Center instrument panel speaker |
22G |
| H4/2h1 |
Right door tweeter |
14K |
| H4/2h1 |
Right door tweeter |
22F |
| H4/2h2 |
Right door bass speaker |
22F |
| H4/2h2 |
Right door bass speaker |
14L |
| LIN E1 |
Steering LIN |
3H |
| LVDS |
Low voltage differential signal |
12C |
| MOST |
Media Oriented System Transport |
17J |
| N135 |
Steering wheel electronics |
3G |
| N40/3 |
Sound system amplifier control unit |
19F |
| N80 |
Steering column module control unit |
3J |
| S110 |
Left multifunction steering wheel button group |
2D |
| S110s1 |
Scroll forward/back button |
2B |
| S110s3 |
System selection button |
2C |
| S111 |
Right multifunction steering wheel button group |
4D |
| S111s3 |
Accept/terminate phone call button |
4C |
| S111s4 |
Voice control system ON button |
4B |

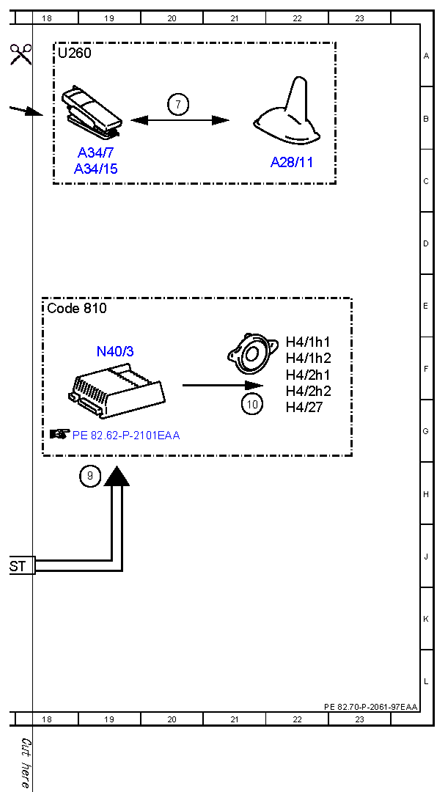

| U260 |
Valid for comfort telephony |
18A |
| U500 |
Not valid for sound system |
13K |
