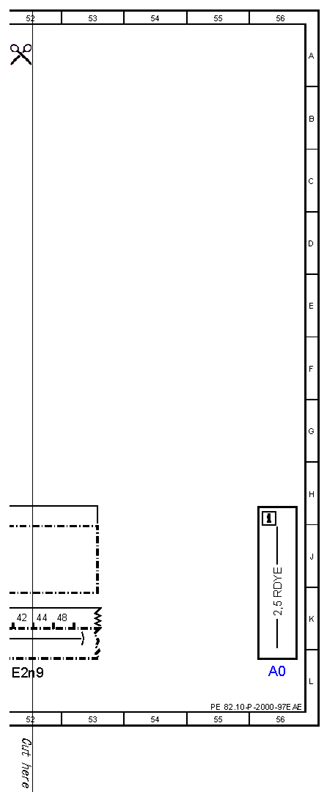

| A0 |
Color code key |
56L |

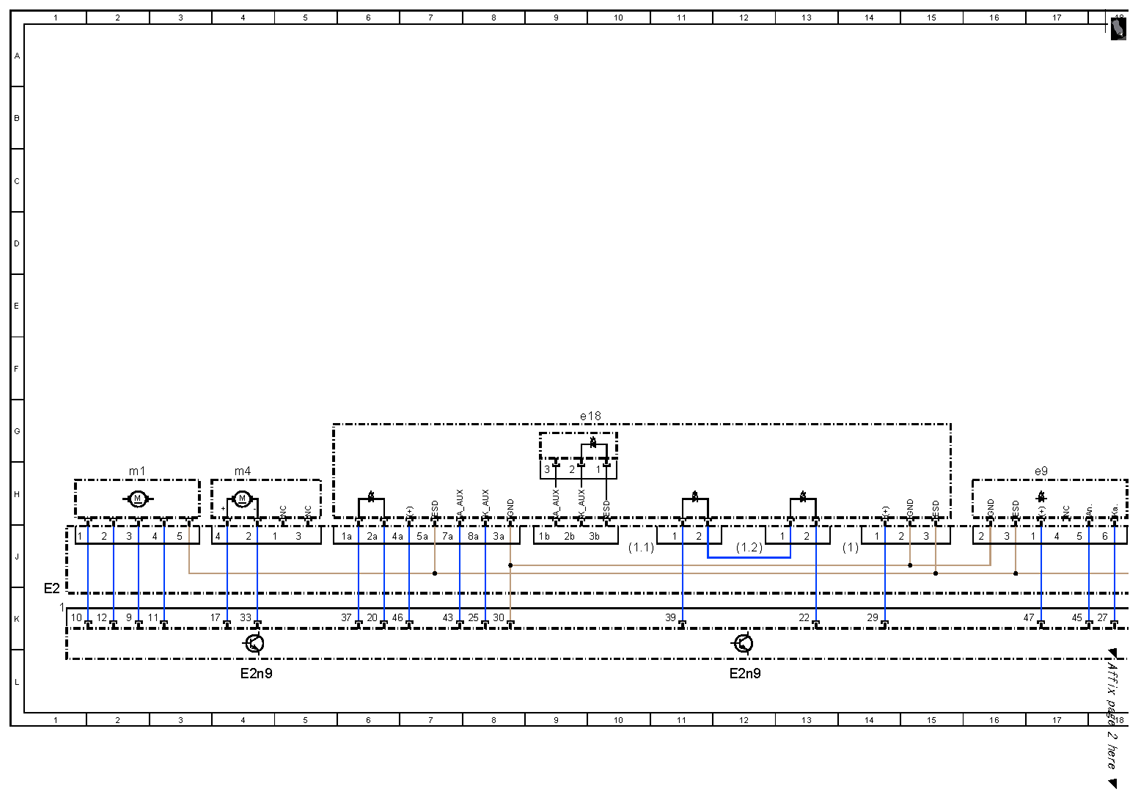

| E1m1 |
Left headlamp range adjustment actuator motor |
2H |
| E2 |
Right front lamp unit |
1K |
| E2b1 |
Right active curve illumination position sensor |
26H |
| E2b2 |
Right light distribution position sensor |
27H |
| E2e18 |
Right turn signal light, parking light, side marker light and daytime running light |
9G |

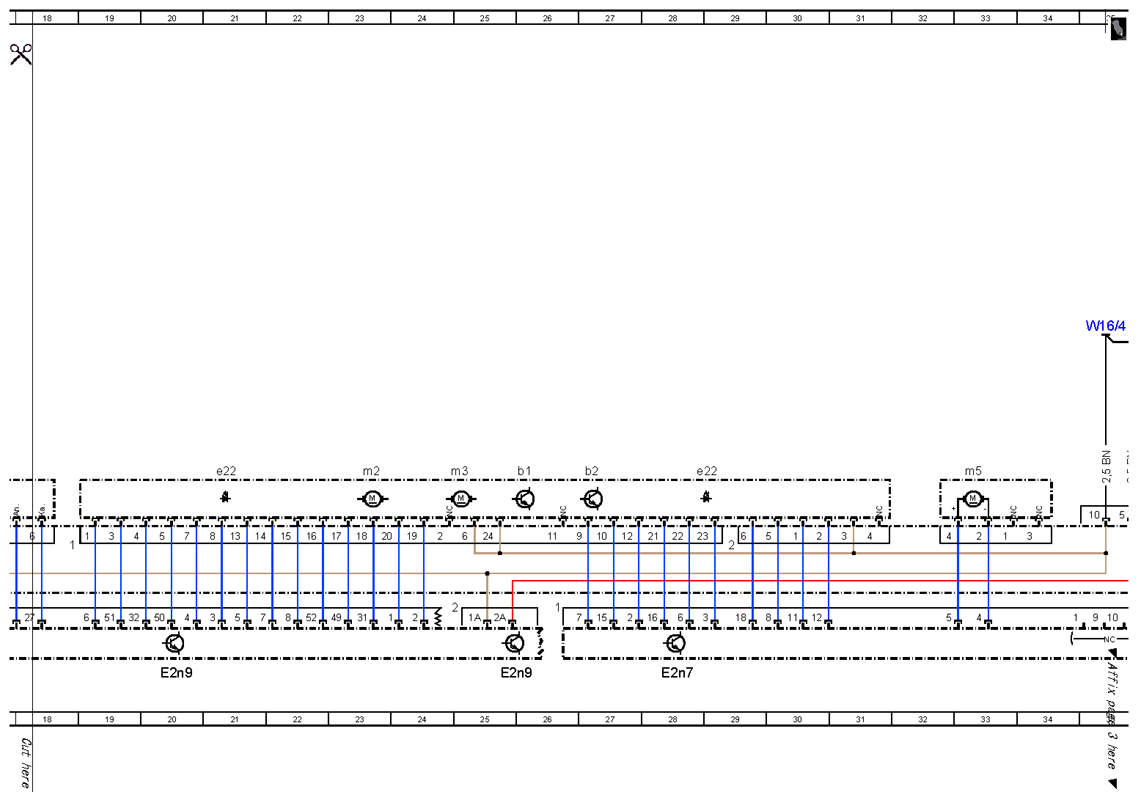

| E2e22 |
Right front Vario-LED lamp unit |
28H |
| E2e22 |
Right front Vario-LED lamp unit |
21H |
| E2e9 |
Right cornering illumination |
17H |
| E2m2 |
Right active curve illumination actuator motor |
23H |
| E2m3 |
Right light distribution actuator motor |
25H |
| E2m4 |
Right LED signaling lights actuation module fan motor |
4H |
| E2m5 |
Right LED driving lights actuation module fan motor |
33H |
| E2n7 |
Actuation module for right front exterior lights LED |
28L |
| E2n7 |
Actuation module for right front exterior lights LED |
36L |
| E2n7 |
Actuation module for right front exterior lights LED |
43L |
| E2n9 |
Right headlamp control unit |
4L |
| E2n9 |
Right headlamp control unit |
12L |
| E2n9 |
Right headlamp control unit |
20L |
| E2n9 |
Right headlamp control unit |
25L |
| E2n9 |
Right headlamp control unit |
45L |
| E2n9 |
Right headlamp control unit |
52L |
| F34 |
Interior fuse box |
38A |
| F34f130 |
Fuse 130 |
37B |
| F34f131 |
Fuse 131 |
36B |

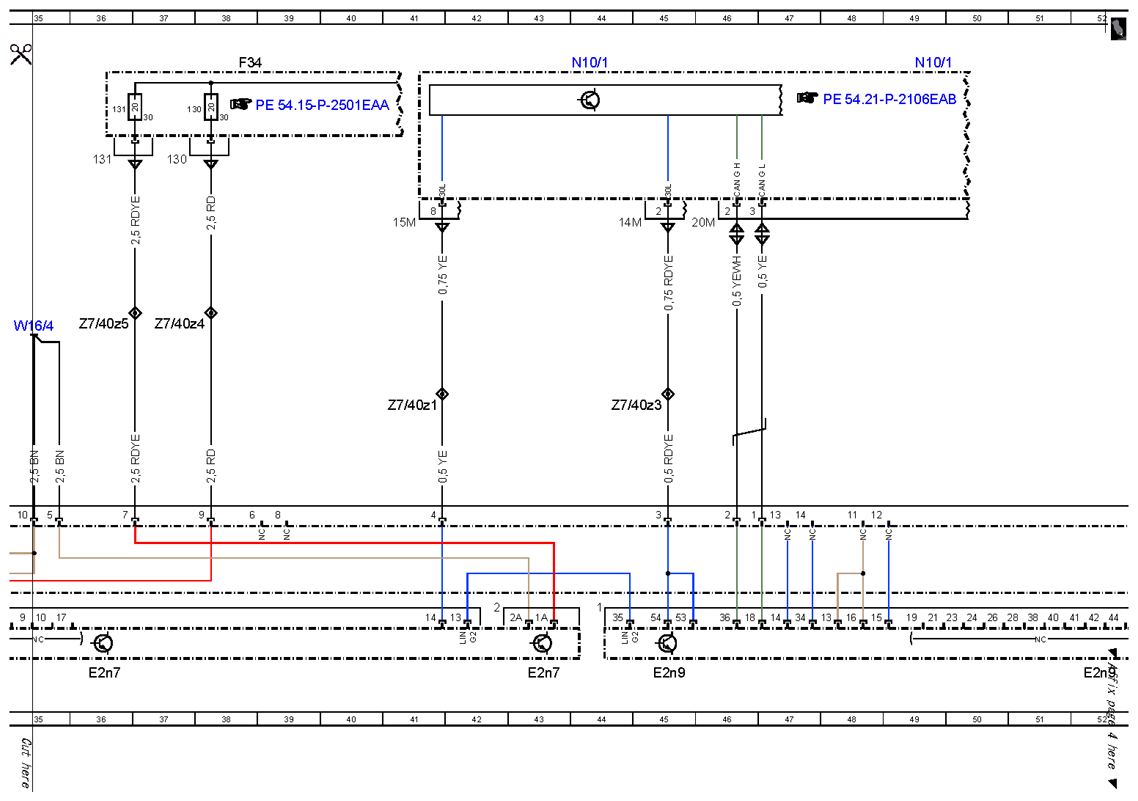

| N10/1 |
Front SAM control unit with fuse and relay module |
44A |
| N10/1 |
Front SAM control unit with fuse and relay module |
49A |
| W16/4 |
Right wheelhouse ground point |
35E |
| Z7/40z1 |
Tml. 30 connector sleeve |
41G |
| Z7/40z3 |
Tml. 30 connector sleeve |
45G |
| Z7/40z4 |
Tml. 30 connector sleeve |
37E |
| Z7/40z5 |
Tml. 30 connector sleeve |
36E |
