Media interface control unit, component description - GF82.60-P-5000CA
MODEL 207 with CODE (518) Media interface up to model year 2013/YoM 12

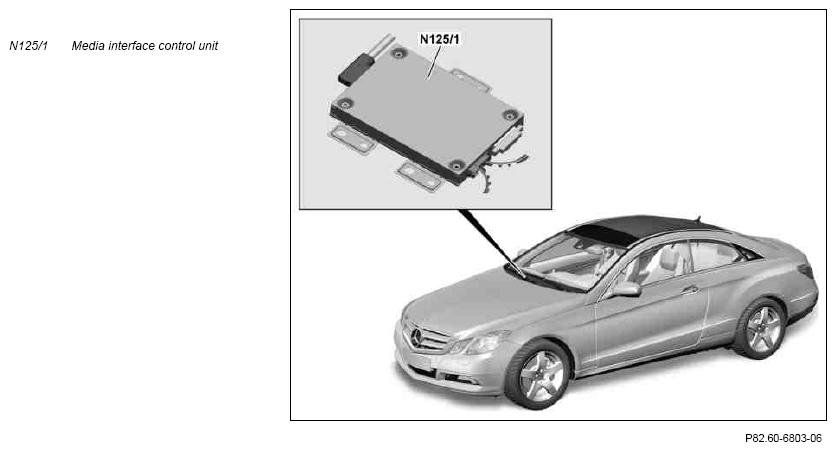

Illustrated on model 207.3
Location
The media interface control unit is located behind the glove compartment.
Task
The media interface control unit is responsible for the following tasks:
- Reading in of signals
- Transmit signals
Reading in of signals
Signals are read in via the following connections:
- Direct lines
- Media Oriented System Transport (MOST)
Direct lines
The following signals are read in via direct lines:
- Audio signals and data via the media interface electrical connector (X18/70) and the "Mitsumi CAM62" connector
- Electronic wake-up for MOST
Media Oriented System Transport (MOST)
The following signals are read in via MOST:
- Control and operating signals from the audio equipment
Transmit signals
The signals are transmitted via the following connections:
- Direct lines
- MOST
Direct line
The media interface control unit transmits the following signals:
- General information on power supply to media interface electrical connector and to universal serial bus (USB) via "Mitsumi CAM62" connector
- Control signals to media interface connector over "Mitsumi CAM62" connector
MOST
The media interface control unit transmits audio signals and data and control signals via MOST to the audio equipment.
| Technical data Designation |
Unit | Values | Tolerance range | Remarks |
|---|---|---|---|---|
| Media interface control unit | ||||
| Power supply | V | 12 | - | Operating voltage UB |
| Voltage limits | V | >9 | - | Minimum UBmin |
| < 16 | - | Maximum UBmax | ||
| Power consumption | mA | 300 | - | Standby IB |
| mA | 300 | - | Typical action IAction | |
| A | 1.5 | - | Maximum IAction | |
| mA | 0.1 | - | Quiescent current | |
| Reverse polarity protection | - | - | - | In range - 9... - 16 V |
| Flash capability/coding capability | - | - | - | DC-compatible/no |
| Wiring diagram for media interface control unit | N125/1 | PE82.60-P-2105EAA |
