Exterior lights function - GF82.10-P-0003CAM

MODEL 207.3/4 as of model year 2014

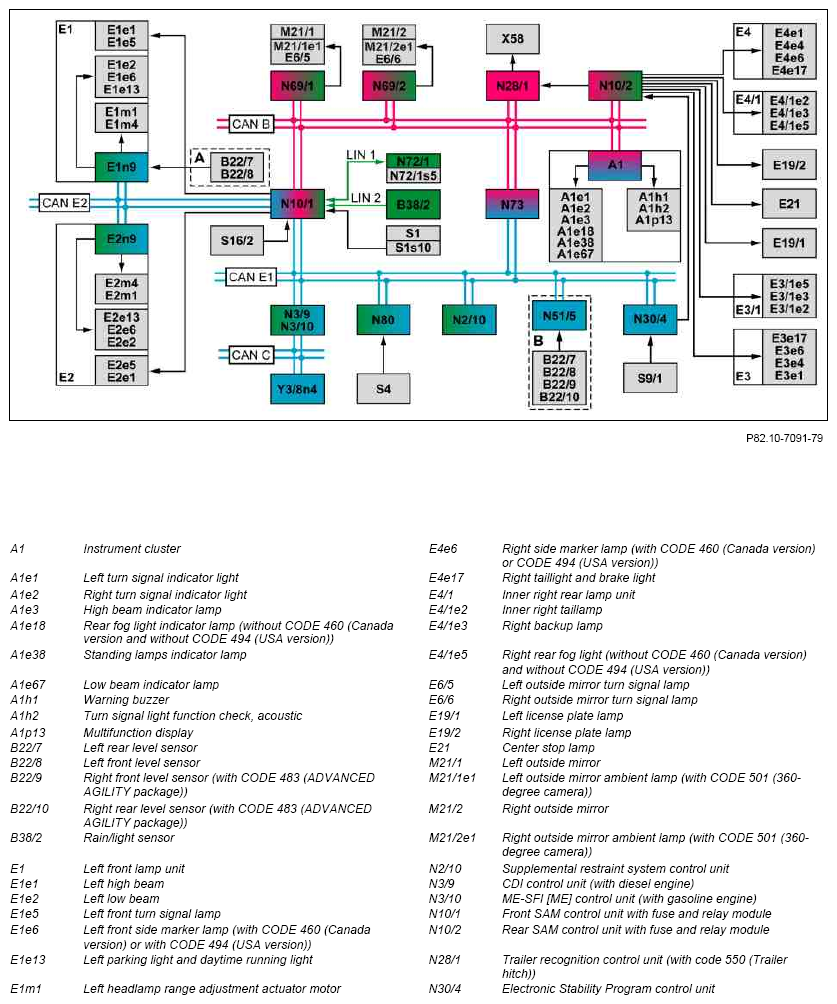

Fig 1: Exterior Lights Block Diagram - Without Code 640 (1 Of 2)
G10081928Courtesy of MERCEDES-BENZ USA

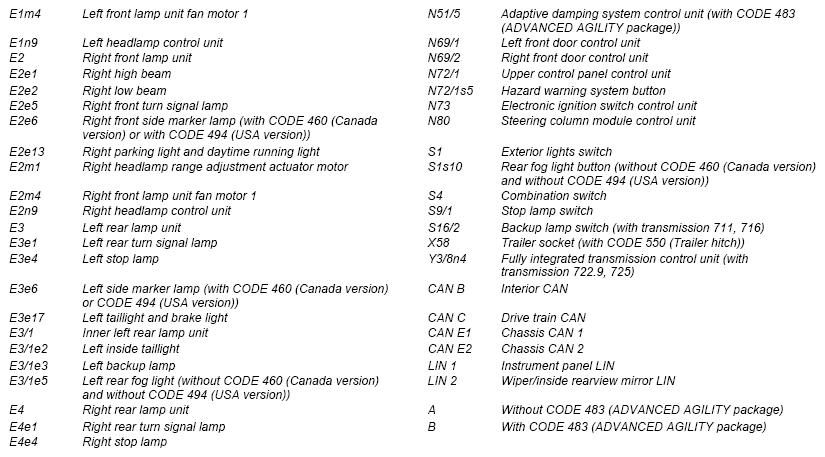

Fig 2: Exterior Lights Block Diagram - Without Code 640 (2 Of 2)
G10081929Courtesy of MERCEDES-BENZ USA

Without code 640 (SAE dynamic LED headlamp for right-hand traffic) and without CODE 641 (Dynamic LED headlamp for left-hand traffic) and without CODE 642 (Dynamic LED headlamp for right-hand traffic)

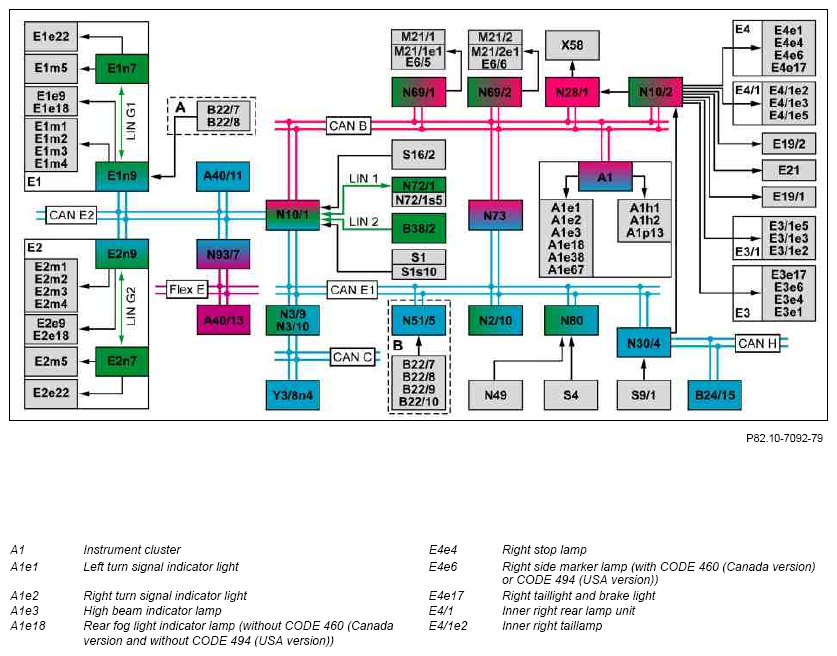

Fig 3: Exterior Lights Block Diagram - With Code 640 (1 Of 2)
G10081930Courtesy of MERCEDES-BENZ USA

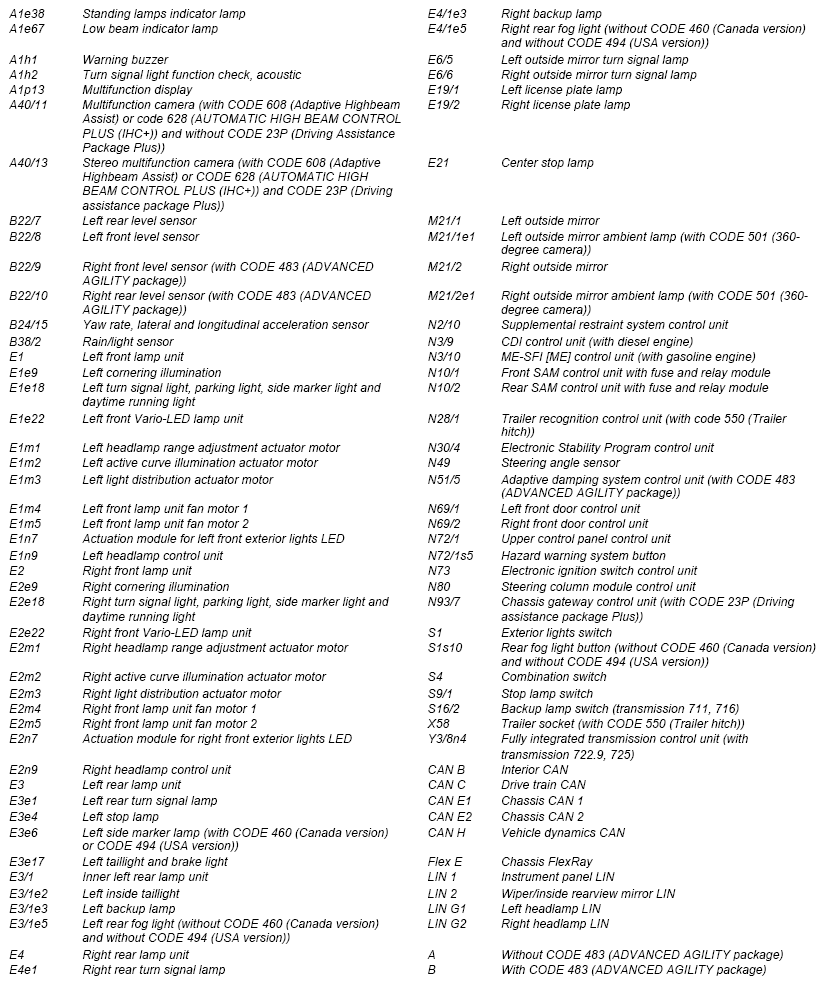

Fig 4: Exterior Lights Block Diagram - With Code 640 (2 Of 2)
G10081931Courtesy of MERCEDES-BENZ USA

With CODE 640 (SAE dynamic LED headlamp for right-hand traffic) or code 641 (Dynamic LED headlamp for left-hand traffic) or code 642 (Dynamic LED headlamp for right-hand traffic)

Function requirements, general

Exterior lights (ABL), general

The exterior lights control all the safety and comfort-relevant functions of the front, side and rear lights of the vehicle.

The exterior lights comprise the following subfunctions:

Further subfunctions are described in separate information:

Function sequence, on-board network increase

When the on-board electrical system voltage is decreased by the energy management below the minimum voltage of a light function during normal driving operation, the front SAM control unit can suppress shutoff of the corresponding light function with the aid of the on-board electrical system increase. For this purpose, the front SAM control unit requests the minimum voltage necessary for the corresponding light function. The lighting functions for which the on-board electrical system increase is to be activated are defined during production.

The following functions can be coded:

Function sequence for switching off the exterior lights

Switching off the exterior lights prevents the on-board electrical system battery (G1) from being discharged by the active low beam and standing light actuation.

The low beams may be switched on due to the auto on/off driving lights, the daytime running lights or manually via the exterior lights switch.

A prerequisite for this is that the status of circuit 15 is On.

If circuit 15 is Off, the low beams are switched off.

The standing lights may be switched on because the low beams have been manually switched on, because of the auto on/off driving lights or manually via the exterior lights switch.

If the standing lights have been activated because of the manually activated low beams, auto on/off driving lights or daytime running lights and the driver door is opened with the status circuit 15C On, the standing lights are switched off.

The standing lights are switched off when the energy management determines that the engine's starting capability is impaired due to discharging of the on-board electrical system battery.

IMPORTANT If the "Ambient illumination" function is activated via the instrument cluster, it automatically switches itself on when the engine is turned off. The standing lights remain switched on for an adjustable time interval of no more than t = 60 s.

The "Ambient illumination" function is described in the "Headlamp switch-off delay (SWA) function" information.

  Standing/parking lights actuation, function   GF82.10-P-3060CAM
  Headlamp control, function MODEL 207.3/4
as of model year 2014
without CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic)
without CODE 641 (Headlamps, LED, dynamic, left-side traffic)
without CODE 642 (Headlamps, LED, dynamic, right-side traffic)		 GF82.10-P-2009CAM
MODEL 207.3/4
as of model year 2014
with CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic)
MODEL 207.3/4
as of model year 2014
with CODE 641 (Headlamps, LED, dynamic, left-side traffic)
MODEL 207.3/4
as of model year 2014
with CODE 642 (Headlamps, LED, dynamic, right-side traffic)		 GF82.10-P-2009CAN
  Function of Intelligent Light System MODEL 207.3/4
as of model year 2014
with CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic)
MODEL 207.3/4
as of model year 2014
with CODE 641 (Headlamps, LED, dynamic, left-side traffic)
MODEL 207.3/4
as of model year 2014
with CODE 642 (Headlamps, LED, dynamic, right-side traffic)		 GF82.10-P-3090CAM
  Function of Adaptive Highbeam Assist MODEL 207.3/4
as of model year 2014
with CODE 608 (Automatic high beam control)
without CODE 628 (INTELLIGENT HEADLAMP CONTROL PLUS (IHC+))
MODEL 207.3/4
as of model year 2014
with CODE 628 (INTELLIGENT HEADLAMP CONTROL PLUS (IHC+))
without CODE 608 (Automatic high beam control)		 GF82.10-P-3091CAM
  Front fog light actuation, function MODEL 207.3/4
as of model year 2014
without CODE 460 (Canada version)
without CODE 494 (US version)		 GF82.10-P-3070CAM
  Turn signal indicator actuation, function   GF82.10-P-3008CAM
  Brake light actuation, function   GF82.10-P-3010CAM
  Backup lamp actuation, function   GF82.10-P-3011CAM
  Headlight switch off delay function   GF82.10-P-2011CAM
  Emergency lamp control, function   GF82.10-P-3013CAM
