Digital TV tuner, component description - GF82.60-P-3118CA
MODEL 207 up to 3/1/15 as of model year 2013 up to model year 2016 with CODE 865 (TV tuner)
Illustrated on model 207.3

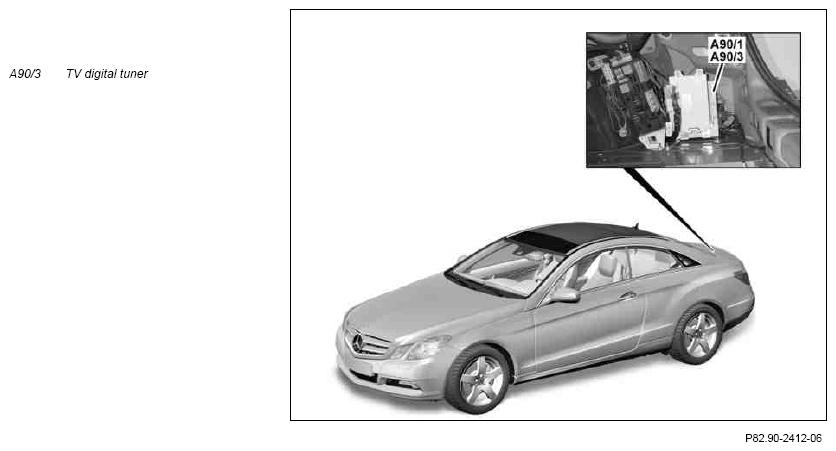

Location
The digital TV tuner is located at the right rear in the trunk behind the paneling on a bracket.
Tasks
- Receive signals
- Demodulating and decoding signals
- Transmitting signals
Receive signals
- Media Oriented System Transport (MOST)
- Direct lines
Media Oriented System Transport (MOST)
The digital TV tuner is a participant of the MOST, via which it communicates with the COMAND controller unit (A40/3).
Direct lines
- Power supply over circuit 31 and circuit 30
- Electronic wake-up for MOST
- TV 1 antenna amplifier (A94/1)
- TV 2 and Keyless-Go antenna amplifier (A94/2)
- TV 3 antenna amplifier (A94/3) (model 207.3)
- TV 3 FM2 and DAB band III antenna amplifier (A2/54) (model 207.4), with CODE 537 (Digital radio) via the TV antenna splitter (A2/89)
Demodulating and decoding signals
The TV signals that are received via the antenna amplifier are evaluated internally and separated into video and audio signals.
Transmitting signals
Signals are sent through the following lines:
- MOST
- Direct line
MOST
The digital TV tuner communicates over MOST with the COMAND controller unit. The audio signals are transmitted to the COMAND controller unit or the sound system amplifier control unit (N40/3) (with CODE (810) Sound system)).
Direct line
- Supply voltage to the following antenna amplifiers:
- TV 2 antenna amplifier
- TV 3 antenna amplifier (model 207.3)
- TV 3 FM2 and DAB band III antenna amplifier (model 207.4), with CODE 537 (Digital radio) via the TV antenna splitter
- Video signals via Y/C lines to COMAND controller unit
Body
With CODE 498 (Japan version) the digital TV tuner is delivered with a "B-CAS card". The "B-CAS card" is designed as a subscriber identification module (SIM) card and inserted in the SIM card reader. The SIM card reader does not have a cover.
| Wiring diagram for TV tuner | A90/3 | PE82.60-P-2220-97EAA |
