Component description for Digital Audio Broadcasting control unit - GF82.62-P-5000CA

MODEL 207 up to 3/1/15 up to model year 2016 with CODE 537 (Digital radio)

Illustrated on model 207.3

Location

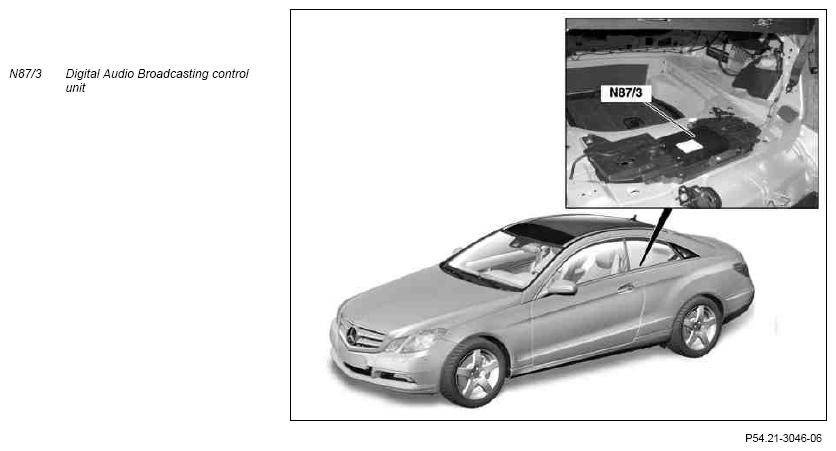

The Digital Audio Broadcasting control unit is located on the crossmember in the trunk beneath the paneling on the trunk floor.

Tasks

• Reading in of signals
• Decoding of signals
• Transmitting signals

Reading in of signals

Signals are read in via the following connection:

• Media Oriented System Transport (MOST)
• Direct lines

Media Oriented System Transport (MOST)

• FM station lists from audio equipment
• FM signals from audio equipment:
  • As of 1.7.11 with CODE 512 (COMAND APS with DVD changer) or with CODE 527 (COMAND APS with single DVD drive (with navigation))
  • As of 1.6.12 with CODE 510 (Audio 20 with CD changer) or with CODE 523 (MB Audio 20 radio)

Direct lines

The following signals are read in via a direct line:

• Wake-up
• Digital radio (DAB) L-band signals from the multifunction antenna (A28/11) (up to 30.11.10)
• DAB band III signals from rear window antenna (A2/32) via the rear window antenna FM antenna amplifier (A2/19) (model 207.3)
• DAB band III signals from the windshield antenna (A2/118) via the TV 3 FM2 and DAB band III (A2/54) antenna amplifier, with CODE 863 (Digital/analog TV tuner) or CODE 865 (TV tuner) via the TV antenna splitter (A2/89) (model 207.4)

Decoding of signals

The Digital Audio Broadcasting control unit decodes the DAB L-band signals (up to 30.11.10) and the DAB band III signals into PCM (Pulse Code Modulation) signals.

Transmitting signals

The Digital Audio Broadcasting control unit sends signals over the MOST:

• DAB status and station lists to the audio equipment
• Audio signals to the following control units:
  • Audio equipment (except CODE 810 (Sound system))
  • Sound system amplifier control unit (N40/3) (with CODE 810 (Sound system))

Body

In vehicles as of 1.7.11 with CODE 512 (COMAND APS with DVD changer) or CODE 527 (COMAND APS with single DVD drive (with navigation)) and in all vehicles as of 1.6.12, the Digital Audio Broadcasting control unit is designed as a twin tuner and supports the extended audio codec DAB+ and Digital Multimedia Broadcasting (DMB) audio.

Wiring diagram for Digital Audio Broadcasting control unit system (DAB)

N87/3

PE82.60-P-2302-97EAA
