Seam sealing following repair, side damage - AR97.10-P-4000-03EW

MODEL 212.0

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-01A	Sealant, white, 310 ml, DB supply specification 6069.20	A 001 989 63 20
BR00.45-Z-1041-01A	Seam sealant, sprayable 310 ml	A 002 989 84 20

Seal spot welds and rivets in repaired area with seam sealant material.
Insert plastic plugs and grommets with sealing compound. Keep sealant out of threads on weld nuts and threaded bolts by masking or covering with cardboard sleeves. Also keep drain openings and contact surfaces for axle attachments, windows and detachable parts free of sealant.

It is necessary to seal accessible spot weld flanges on both sides. If accessible from one side, only seal corresponding surface. Observe standard seals!

Area of A-pillar, sidewall paneling or inner and rocker panel

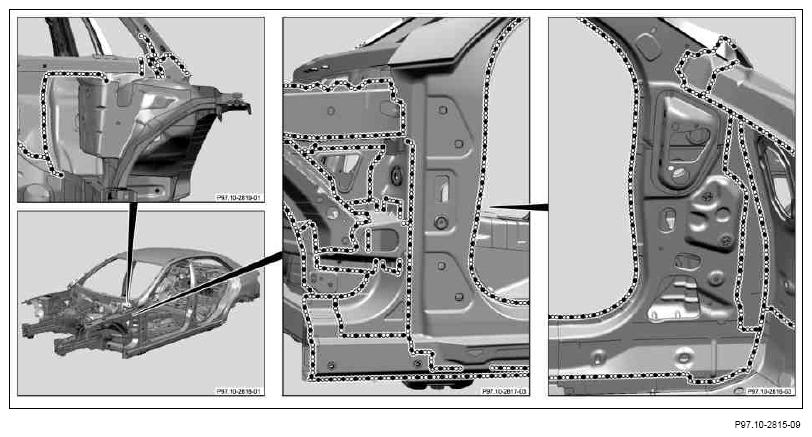

Fig 1: A-Pillar, Sidewall Paneling And Rocker Panel Seam Sealing Areas

Courtesy of MERCEDES-BENZ USA

Area of B-pillar and rocker panel

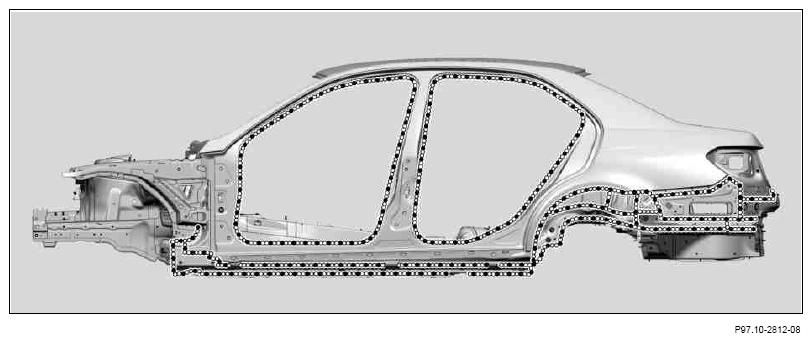

Fig 2: B-Pillar & Rocker Panel Seam Sealing Areas

Courtesy of MERCEDES-BENZ USA

Area of underfloor and inner or outer rear wheel well

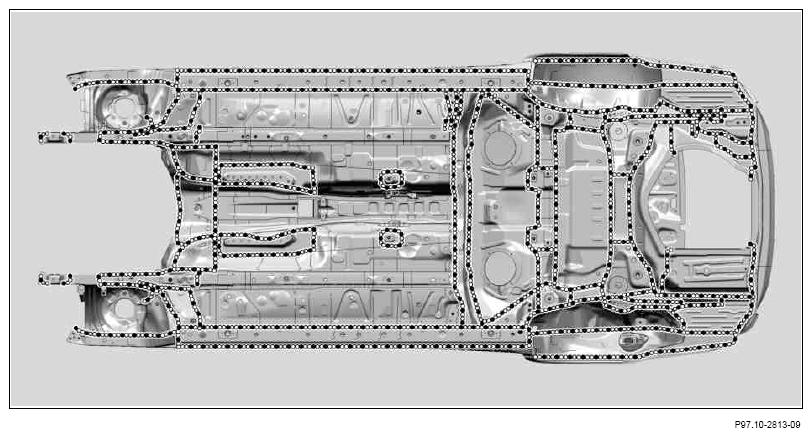

Fig 3: Inner/Outer Rear Wheel Well And Underfloor Seam Sealing Areas

Courtesy of MERCEDES-BENZ USA
