Seam sealing following repair, side damage - AR97.10-P-4000-03ES

MODEL 212.2

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-01A	Sealant, white, 310 ml, DB supply specification 6069.20	A 001 989 63 20
BR00.45-Z-1041-01A	Seam sealant, sprayable 310 ml	A 002 989 84 20

Seal repair connecting flange of repaired area with seam sealant material.
Insert plastic plugs and grommets with sealing compound.

Always seal rivets.

Observe standard seals!

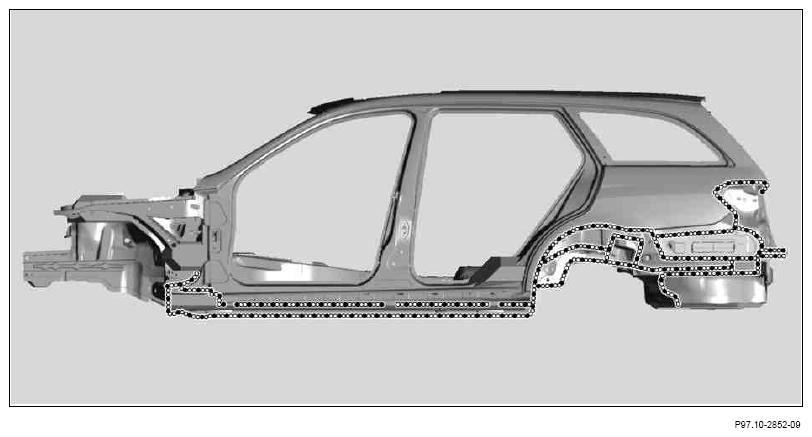

Fig 1: Rear End, Rear Fender And Left Rear Wheel Well Seam Sealing Areas (1 Of 2)
Courtesy of MERCEDES-BENZ USA

Fig 2: Rear End, Rear Fender And Left Rear Wheel Well Seam Sealing Areas (2 Of 2)
Courtesy of MERCEDES-BENZ USA
