Seam sealing following repair, rear end damage - AR97.10-P-4000-02EW
MODEL 212.0
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | Sealant, white, 310 ml, DB supply specification 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
- Seal spot welds and rivets in repaired area with seam sealant material.
Insert plastic plugs and grommets with sealing compound. Keep sealant out of threads on weld nuts and threaded bolts by masking or covering with cardboard sleeves. Also keep drain openings and contact surfaces for axle attachments, windows and detachable parts free of sealant.
It is necessary to seal accessible spot weld flanges on both sides. If accessible from one side, only seal corresponding surface. Observe standard seals!

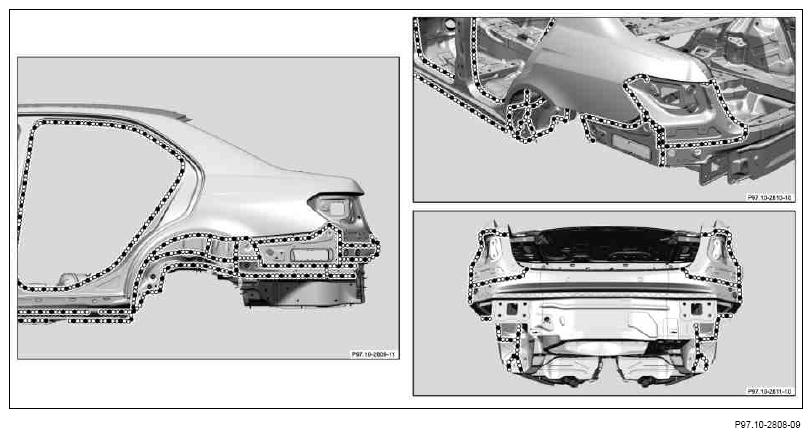

Area of rear end, rear fender and left rear wheel well
