Sealing seam after repairing roof - AR97.10-P-4000-05EW

MODEL 212, 218

1. Seal spot welds and rivets in repaired area with seam sealant material.

   It is necessary to seal accessible spot weld flanges on both sides. If accessible from one side, only seal corresponding surface. Observe standard seals!

   Install plastic stoppers and grommets with sealant. Keep sealant out of threads on weld nuts and threaded bolts by masking or covering with cardboard sleeves. Also keep drain openings and contact surfaces for axle attachments, windows and detachable parts free of sealant.

   When sealing seams we differentiate between:

   1. Remove/wipe off
   2. Seal/smooth

Fig 1: Identifying Sealing Seams Marks

Courtesy of MERCEDES-BENZ USA

Shown on model 212.0

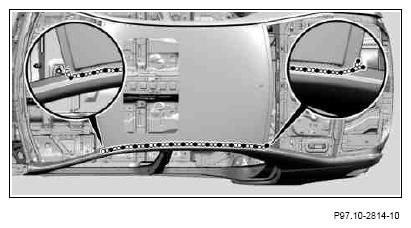

Fig 2: Roof Seam Sealing Areas - Shown On Model 212.0

Courtesy of MERCEDES-BENZ USA

Shown on model 212.2

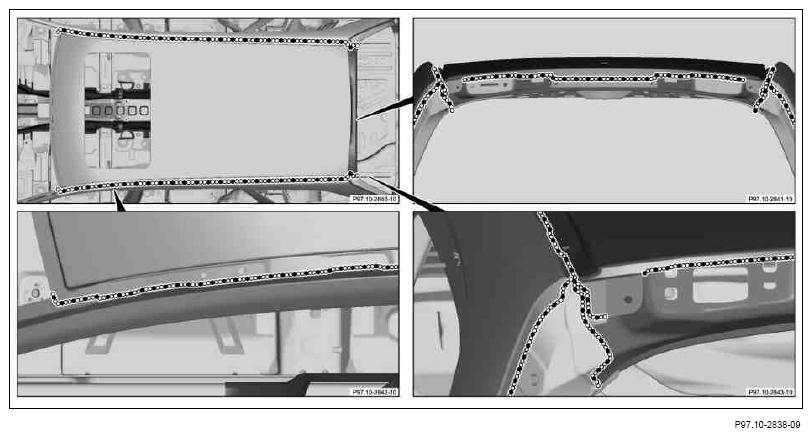

Fig 3: Roof Seam Sealing Areas - Shown On Model 212.2

Courtesy of MERCEDES-BENZ USA
