Sealing seam after repairing roof - AR97.10-P-4000-05ES
MODEL 212.2
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | Sealant, white, 310 ml, DB supply specification 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
- Seal repair connecting flange of repaired area with seam sealant material.
Insert plastic plugs and grommets with sealing compound.

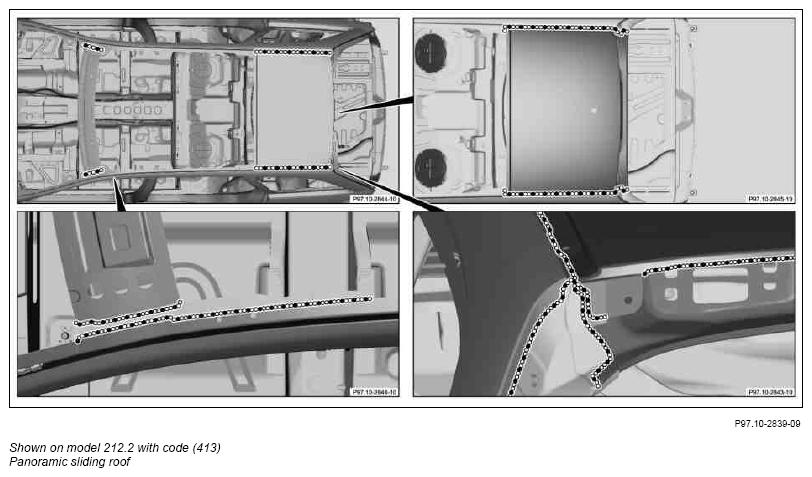

Shown on model 212.2 with code (413) Panoramic sliding roof

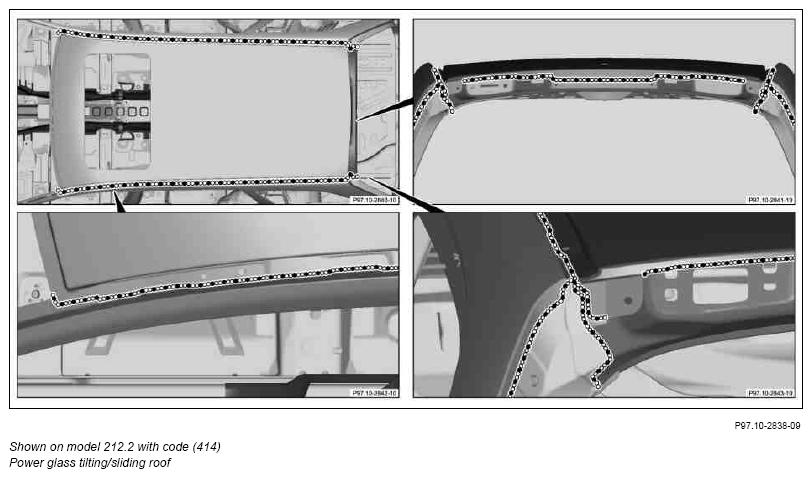

Shown on model 212.2 with code (414) Power glass tilting/sliding roof
