Prepare new rear fender part - AR63.50-P-1400-03EW

MODEL 212.0 /1

1. Scribe separation point on rear fender (1) (area O).

   When replacing inner C-pillar, separation point in area O is not required.

   Transfer dimensions from vehicle.

2. Cut rear fender (1) at separation point (area O).
3. Remove section from rear fender (1).

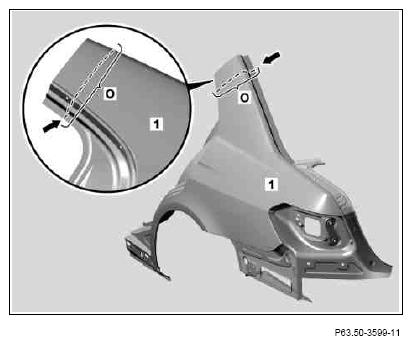

   Fig 1: Rear Fender Separation Point

   Courtesy of MERCEDES-BENZ USA

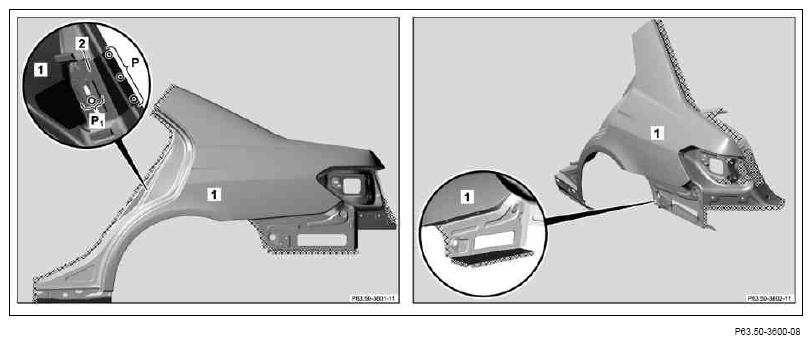

   Fig 2: Rear Fender Crosshatched Areas

   Courtesy of MERCEDES-BENZ USA
4. Grind mating surfaces on rear fender (1) down to bare metal in the crosshatched areas.

   Grind spot weld flanges down to bare metal on both sides.

5. Coat insides of spot welding flange on rear fender (1) with zinc dust paint.

   Following steps 6,  7,  8 are not required when replacing C-pillar.

6. Cut out spot welds on lock striker bracket (2) (area P).
7. Drill through spot welds on lock striker bracket (2) (area P₁ ).
8. Remove locking eye bracket (2).
