Install and weld in center roof paneling - AR65.10-P-1000-04EWB

MODEL 212.0 except CODE (413) Panoramic glass roof with top sliding roof except CODE (414) Power glass tilting/sliding roof

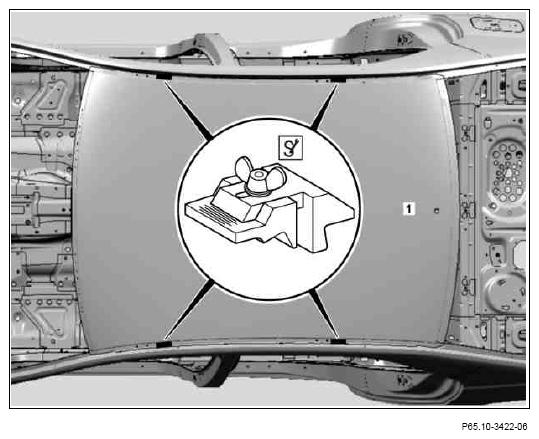

Fig 1: Identifying Set Of Spacer Blocks (216 589 02 23 00)

Courtesy of MERCEDES-BENZ USA

1. Install center roof paneling (1). Fit with set of spacer blocks and fix in place.

   When removing, observe specified dimensions and position of set of spacer blocks.

2. Drill Ø 5.0 mm rivet holes in center roof paneling (1).

   Drill rivet holes from bottom through spot welds predrilled during removal.

3. Remove center roof paneling (1) and set of spacer blocks.
4. Deburr rivet holes on center roof paneling (1) from both sides.

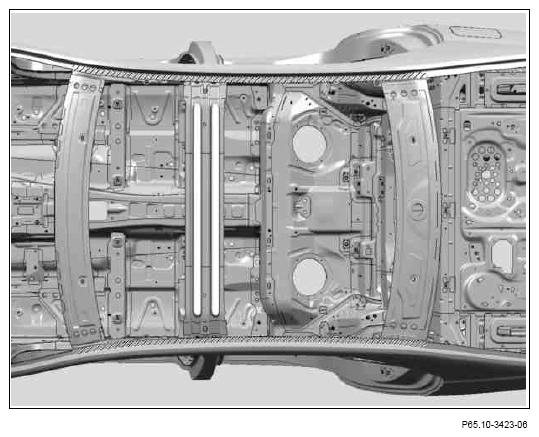

   Fig 2: Center Roof Paneling Spacer Blocks

   Courtesy of MERCEDES-BENZ USA
5. Apply 2-component adhesive in crosshatched areas.

   Observe pretreatment of bonding surfaces.

   Refer to the manufacturer's information for the curing and working times of 2-component adhesive.

6. Apply sealant to center roof bow.
   Fig 3: Center Roof Bow Sealant Applying Area

   Courtesy of MERCEDES-BENZ USA
7. Install center roof paneling (1), fit with set of spacer blocks and fix in place.
8. Rivet center roof paneling (1) with 4.8 8 steel/steel blind rivets (areas D and E).
9. Center roof paneling (1) (areas F and G).
10. Clean weld joints.
11. Remove drill shavings.

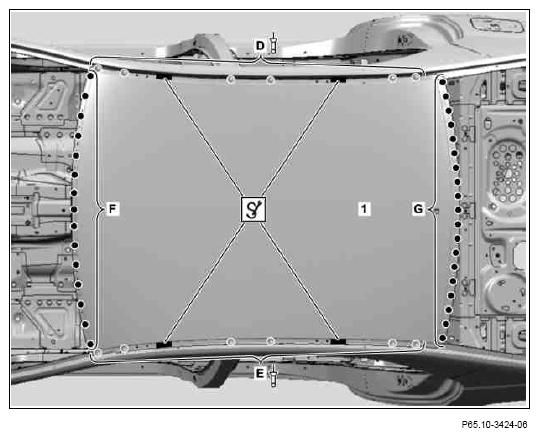

    Fig 4: Center Roof Paneling Blind Rivet Punch Area

    Courtesy of MERCEDES-BENZ USA
