Install and weld in center roof paneling - AR65.10-P-1000-04EWA

MODEL 212.0 /1 with CODE (414) Power glass tilting/sliding roof

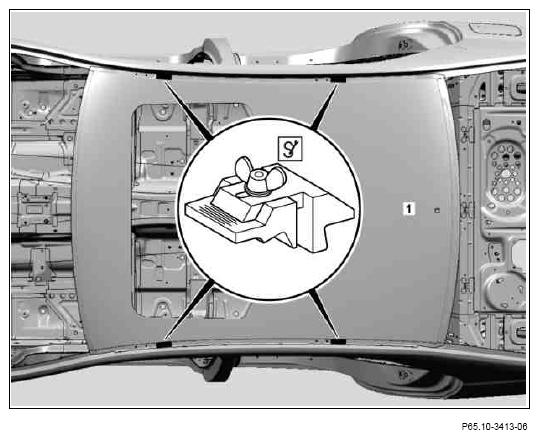

Fig 1: Identifying Set Of Spacer Blocks (216 589 02 23 00)

Courtesy of MERCEDES-BENZ USA

1. Install center roof paneling (1), fit with set of spacer blocks and fix in place. Observe dimensions and position of spacer blocks from set of spacer blocks determined during removal.
2. Drill Ø 5.0 mm rivet holes in center roof paneling (1).

   Drill rivet holes from bottom through spot welds predrilled during removal.

3. Remove center roof paneling (1) and set of spacer blocks.
4. Deburr rivet holes on center roof paneling (1) from both sides.
   Fig 2: Center Roof Paneling Spacer Blocks

   Courtesy of MERCEDES-BENZ USA
5. Apply 2-component adhesive in cross-hatched areas.

   Observe pretreatment of bonding surfaces.

   Refer to the manufacturer's information for the curing and working times of 2-component adhesive.

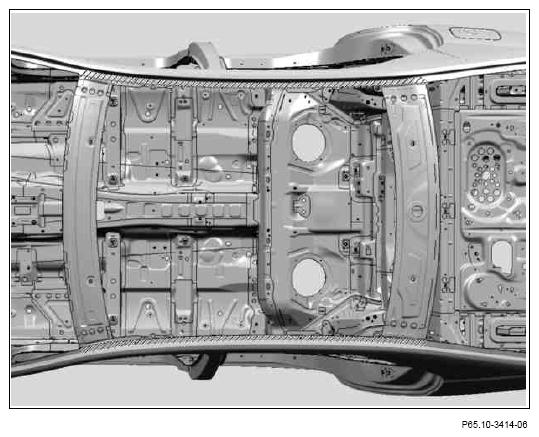

   Fig 3: Center Roof Paneling Adhesive Applying Area

   Courtesy of MERCEDES-BENZ USA
6. Install center roof paneling (1), fit with set of spacer blocks and fix in place.
7. Rivet center roof paneling (1) 4.8X8 steel/steel blind rivets (areas E and F).
8. Center roof paneling (1) (areas G and H).
9. Clean weld joints.
10. Remove shavings and drill chips.

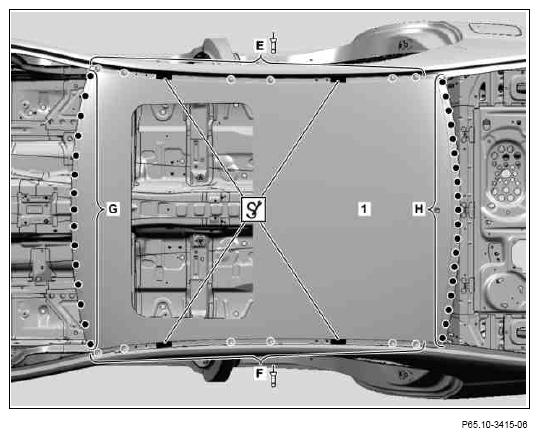

    Fig 4: Center Roof Paneling Blind Rivet Punch Area
