Gap dimensions on hoods, doors and lids - AR60.00-P-0700-01EW
MODEL 212
| 11.3.13 | Changing gap dimensions on MODEL 212 as of model year 2014 | BE60.00-P-1006-01U |
| Number | Designation | MODEL 212.0/1 | MODEL 212.2 | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1001-01U | Gap dimension | Engine hood to fender | Dimension "A" | mm | 4 (±1) | 4 (±1) |
| Engine hood to headlamp | Dimension "B" | mm | 4 (±1) | 4 (±1) | ||
| Engine hood to radiator grille | Dimension "C" | mm | - | - | ||
| Engine hood to bumper | Dimension "D" | mm | 4, 5 (±1, 5) | 4, 5 (±1, 5) | ||
| Engine hood to A-pillar | Dimension "E" | mm | 4, 5 (±1, 5) | 4, 5 (±1, 5) | ||
| Bumper to headlamp | Dimension "F" | mm | 3, 5 (±1, 5) | 3, 5 (±1, 5) | ||
| Picture | AR60.00-P-0700-01EW | AR60.00-P-0700-01EW | ||||
| Number | Designation | MODEL 212.0/1 | MODEL 212.2 | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1002-01U | Gap dimension | Front door to fender | Dimension "G" | mm | 4 (+1/-0, 5) | 4 (+1/-0, 5) |
| Front door to rear door | Dimension "H" | mm | 4, 5 (+1/-0, 5) | 4, 5 (+1/-0, 5) | ||
| Front door to roof frame | Dimension "I" | mm | 14 (±1, 5) | 14 (±1, 5) | ||
| Rear door to roof frame | Dimension "J" | mm | 13 (±1, 5) | 13 (±1, 5) | ||
| Rear door to side piece, bottom | Dimension "K" | mm | 4 (+1/-0, 5) | 4 (+1/-0, 5) | ||
| Driver door cover to rear door cover | Dimension "W" | mm | 4 (±1) | 4 (±1) | ||
| Picture | AR60.00-P-0700-01EW | AR60.00-P-0700-01EW | ||||
| Number | Designation | MODEL 212.0/1 | MODEL 212.2 | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1003-01U | Gap dimension | Trunk lid to rear fender, top | Dimension "L" | mm | 4 (±1) | - |
| Trunk lid to taillamp | Dimension "M" | mm | - | - | ||
| Trunk lid to bumper | Dimension "N" | mm | 6, 5 (±1) | - | ||
| Rear fender to taillamp | Dimension "O" | mm | 2 (+1, 5/-1) | 2 (+1, 5/-1) | ||
| Taillamp to bumper | Dimension "P" | mm | 2 (±1) | 2 (±1) | ||
| Trunk lid taillamp to taillamp | Dimension "M1" | mm | 4 (±1, 5) | - | ||
| Picture | AR60.00-P-0700-01EW | AR60.00-P-0700-01EW | ||||
| Number | Designation | MODEL 212.0/1 | MODEL 212.2 | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1004-01U | Gap dimension | Fuel filler flap (circumference) | Dimension "Q" | mm | 3 (+1/-0, 5) | 3 (+1/-0, 5) |
| Picture | AR60.00-P-0700-01EW | AR60.00-P-0700-01EW | ||||
| Number | Designation | MODEL 212.0/1 | MODEL 212.2 | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1006-01U | Gap dimension | Engine hood to headlamp | Dimension "B1" | mm | 3, 5 (±1) | 3, 5 (±1) |
| Engine hood to radiator grille/bumper | Dimension "C1" | mm | 3, 5 (±1) | 3, 5 (±1) | ||
| Offset: Engine hood to radiator grille/bumper | Dimension "C2" | mm | 1 (-0, 5/+1) | 1 (-0, 5/+1) | ||
| Bumper to headlamp, outside | Dimension "F1" | mm | 2, 5 (±1, 5) | 2, 5 (±1, 5) | ||
| Bumper to headlamp, bottom/inside | Dimension "F2" | mm | 2 (-1/+1, 5) | 2 (-1/+1, 5) | ||
| Picture | AR60.00-P-0700-01EW | AR60.00-P-0700-01EW | ||||

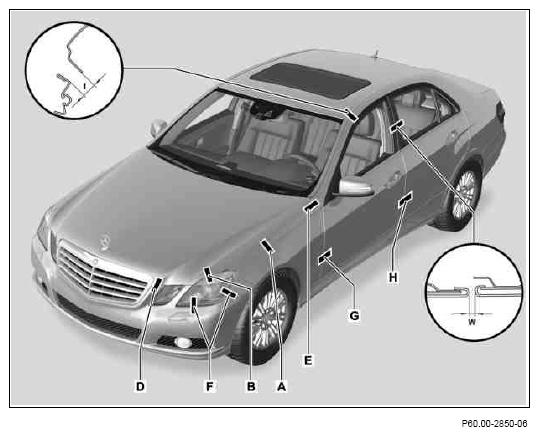

Shown on model 212.0 up to model year 2014
Adjust hoods, doors and cover according to drawings with
feeler gauge. The gap should not run wedge-shaped or be too narrow at points. Deviations from parallel gap should be max. 1 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly. The reference measurements apply only for repair work on vehicles damaged in accidents.
Front door to roof (dimension "I") is not a circumferential reference dimension, therefore it is necessary to maintain the approval position according to the drawing.

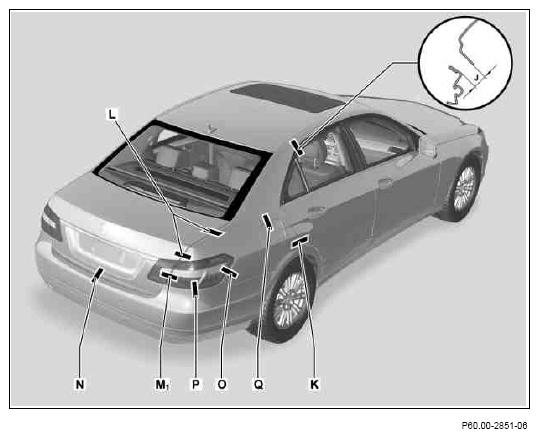

Shown on model 212.0 up to model year 2014
Rear door to roof frame (dimension "J") is not a circumferential reference dimension, therefore it is necessary to maintain the approval position according to the drawing.

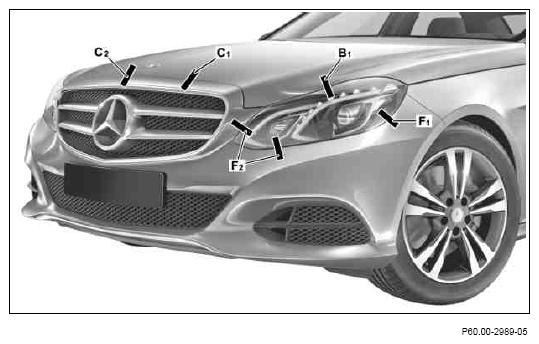

Shown on model 212.0 as of model year 2014
