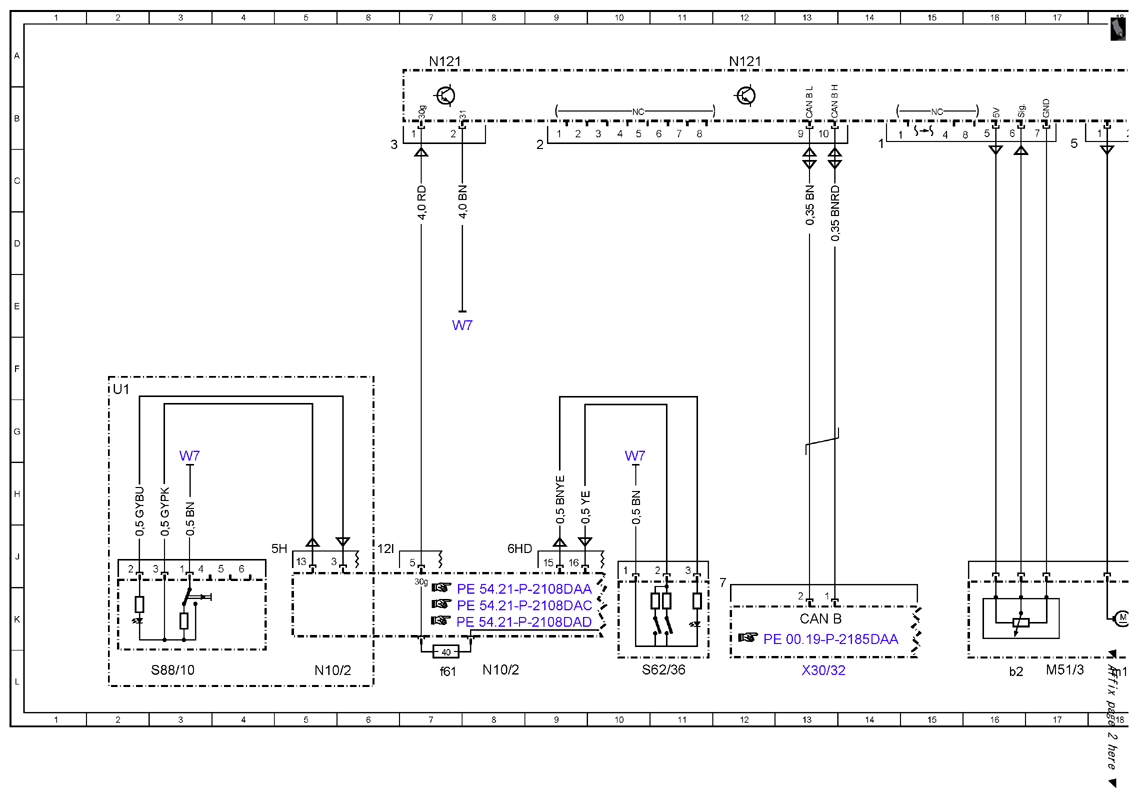

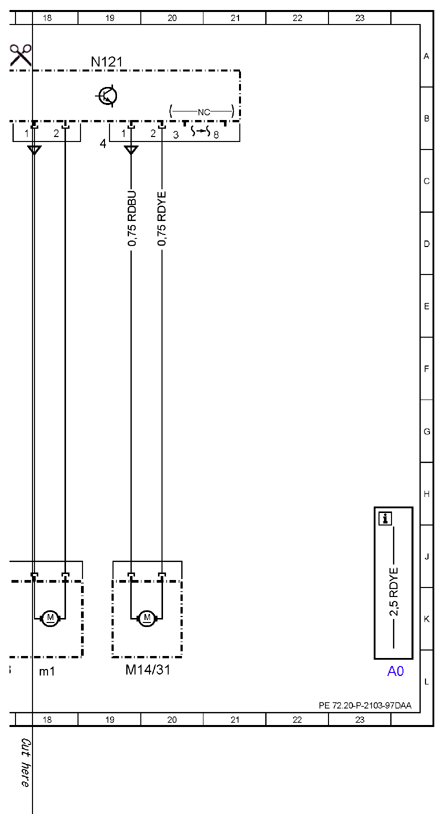

Wiring diagram for trunk lid control unit - PE72.20-P-2103-97DAA
MODEL 212.0 with CODE (881) Remote trunk closing (RTC [HDFS]) control unit N121
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 24L |
| CAN B | Interior CAN | 13K |
| M14/31 | Trunk lid locking element | 19L |
| M51/3 | Trunk lid control drive unit | 17L |
| M51/3b2 | Trunk lid control position sensor | 16L |
| M51/3m1 | Trunk lid control electric motor | 18L |
| N10/2 | Rear SAM control unit with fuse and relay module | 5L |
| N10/2 | Rear SAM control unit with fuse and relay module | 8L |
| N10/2f61 | Fuse 61 | 7L |
| N121 | Trunk lid control unit | 7A |
| N121 | Trunk lid control unit | 12A |
| N121 | Trunk lid control unit | 19A |
| S62/36 | Trunk lid control button | 11L |
| S88/10 | Trunk lid emergency opening switch | 3L |
| U1 | Valid for USA | 2F |
| W7 | Right rear wheel well ground point | 3G |
| W7 | Right rear wheel well ground point | 10G |
| W7 | Right rear wheel well ground point | 7E |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 13L |
