Remove/install crank window in front door - AR72.10-P-1900CW

MODEL 204

MODEL 212 except CODE (Z04) Light armoring

Illustrated on model 204.0

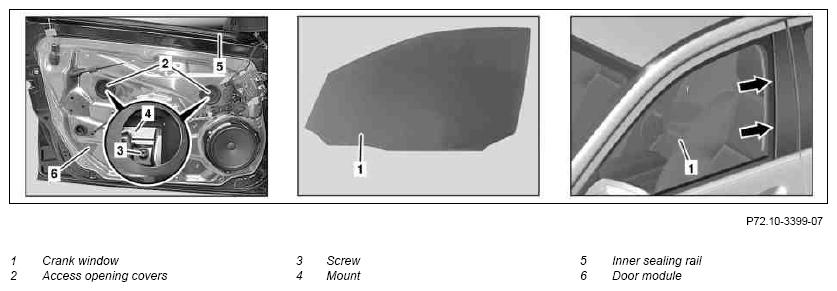

Fig 1: Crank Window In Front Door Remove/Install Components - Shown On Model 204.0

Courtesy of MERCEDES-BENZ USA

	Removing
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Risk of injury  due to hands being crushed when window glass is not secure	Secure window to prevent it from falling down.	AS67.00-Z-0002-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove door lining from left or right front door		AR72.10-P-1000CW
2	Remove inner sealing rail (5)
3	Remove both assembly opening covers (2) from door module (6)
4	Connect electrical wiring harness on removed door lining to left front door control unit and right front door control unit.
5	Open crank window (1) until bolts (3) are accessible through assembly openings in door module (6)
6	Disconnect electrical wiring harness on removed door lining from left front door control unit or right front door control unit
7	Loosen bolts (3)	Do not unscrew bolts (3).
8	Tilt crank window (1) toward rear upward and remove upward from window channel on front door
	Install
9	Slide crank window (1) down until it makes contact in mounts (4) Simultaneously slide crank window (1) in rear window guide seal (arrows) to stop.
10	Tighten screws (3)
11	Install both assembly opening covers (2) in door module (6)
12	Connect electrical wiring harness on removed door lining to left front door control unit and right front door control unit.
13	Roll down crank window (1)
14	Disconnect electrical wiring harness on removed door lining from left front door control unit or right front door control unit
15	Install inner sealing rail (5) with aid of lubricant	Antifriction agent	*BR00.45-Z-1010-06A
16	Install door lining		AR72.10-P-1000CW
