Remove, install inner door lining on rear door window frame - AR72.20-P-6616ES

MODEL 212.2

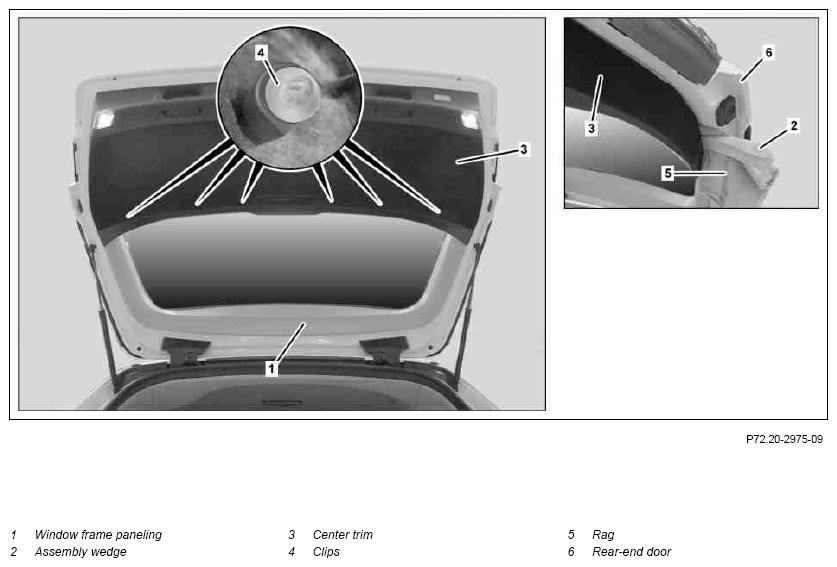

Fig 1: Inner Door Lining On Rear Door Window Frame Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

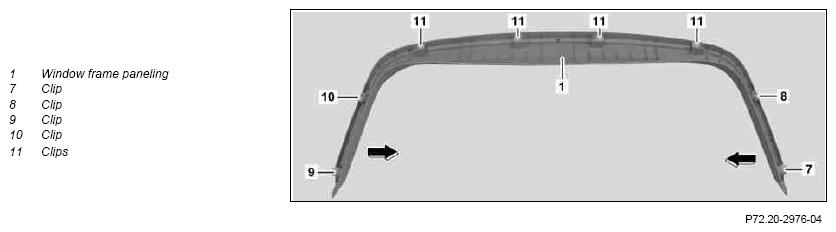

Fig 2: Inner Door Lining On Rear Door Window Frame Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove/install
1	Unclip center paneling (3) from rear-end door (6) with assembly wedge (2)	Lay rag (5) over assembly wedge (2). Otherwise the paint on the rear-end door (6) can be damaged. Ensure that clips (4) are seated correctly in center paneling (3).
		Mounting wedge	Figure
2	Unclip clip (7) with window frame paneling (1) from window frame in direction of arrow	Maintain sequence for unclipping window frame paneling (1). Otherwise the mounting elements of the window frame paneling (1) can be damaged.
		Mounting wedge	Figure
3	Unclip clip (8) with window frame paneling (1) from window frame in direction of arrow	Mounting wedge	Figure
4	Unclip clip (9) with window frame paneling (1) from window frame in direction of arrow	Mounting wedge	Figure
5	Unclip clip (10) with window frame paneling (1) from window frame in direction of arrow	Mounting wedge	Figure
6	Unclip clips (11) with window frame paneling (1) from window frame and remove	Mounting wedge	Figure
7	Install in the reverse order	Always maintain sequence for clipping in window frame paneling (1). Otherwise the mounting elements of the window frame paneling (1) can be damaged.

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
