Remove/install Parktronic system (PTS) sensors in front bumper - AR54.65-P-0001EC
MODEL 207 with CODE (220) PARKTRONIC with CODE (230) Advanced Parking Guidance
Courtesy of MERCEDES-BENZ USA
| Figure item, etc. |
Work instructions |
|
|
 |

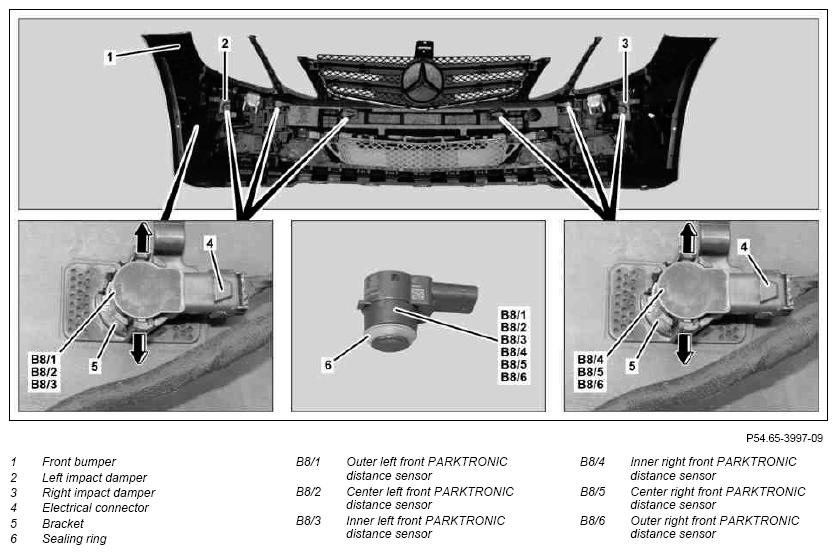

Remove front bumper (1) with radiator grille attached |
|
AR88.20-P-2000EW |
| B8/1, B8/6 |
Outer left front PARKTRONIC distance sensor, outer right front PARKTRONIC distance sensor |
Remove left impact absorber (2) and right impact absorber (3) from front bumper (1). Unlock locks of bracket (5) (arrows) and remove outer left front PARKTRONIC distance sensor (B8/1) or outer right front PARKTRONIC distance sensor (B8/6) from bracket (5), then disconnect electrical connector (4).
Check sealing ring (6), replace if damaged. |
|
| B8/2, B8/5 |
Center left front PARKTRONIC distance sensor, center right front PARKTRONIC distance sensor |
Unlock locks of bracket (5) (arrows) and remove center left front PARKTRONIC distance sensor (B8/2) or center right front PARKTRONIC distance sensor (B8/5) from bracket (5), then disconnect electrical connector (4).
Check sealing ring (6), replace if damaged. |
|
| B8/3, B8/4 |
Inner left front PARKTRONIC distance sensor, inner right front PARKTRONIC distance sensor |
Unlock locks of bracket (5) (arrows) and remove inner left front PARKTRONIC distance sensor (B8/3) or inner right front PARKTRONIC distance sensor (B8/4) from bracket (5), then disconnect electrical connector (4).
Check sealing ring (6), replace if damaged. |
|
