| A0 |
Color code key |
80L |

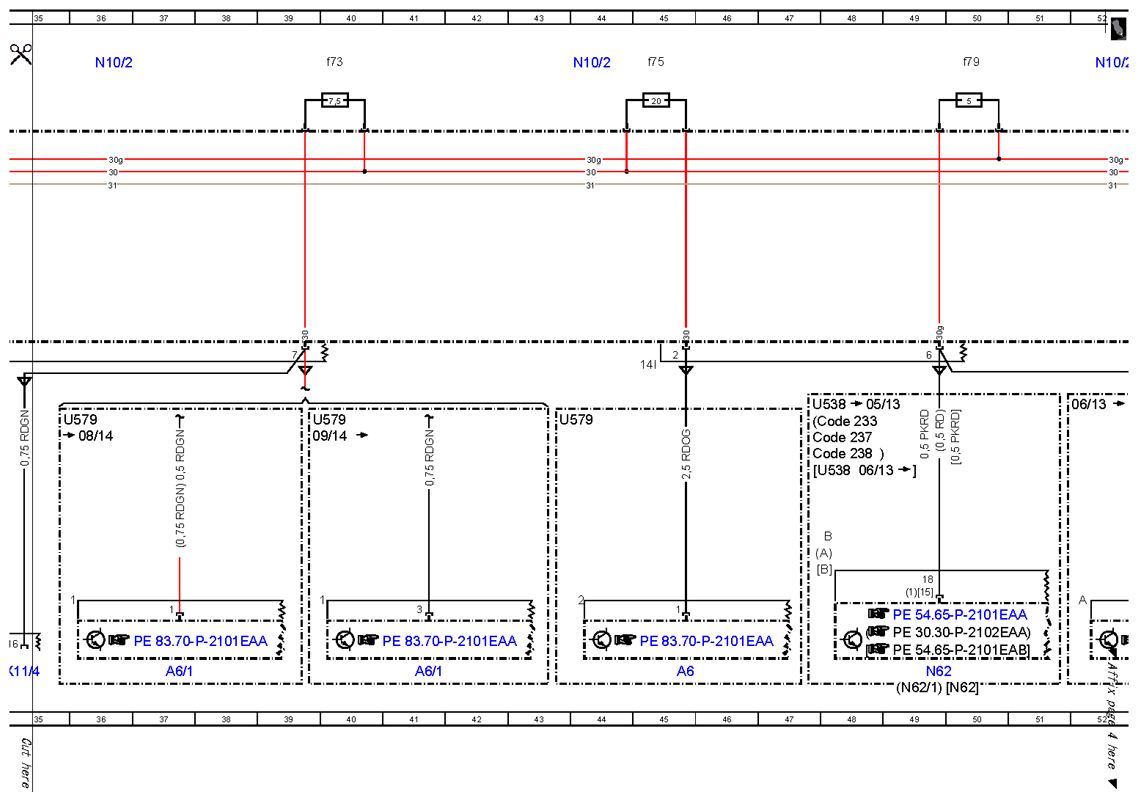

| A6 |
Stationary heater unit |
45L |
| A6/1 |
Stationary heater radio remote control receiver |
37L |
| A6/1 |
Stationary heater radio remote control receiver |
41L |

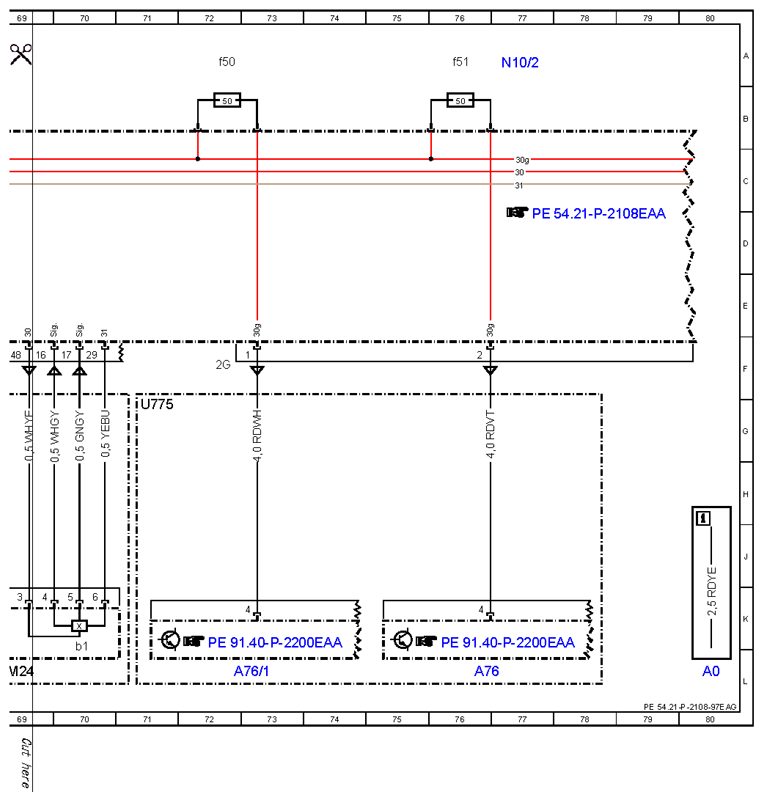

| A76 |
Left front reversible emergency tensioning retractor |
76L |
| A76/1 |
Right front reversible emergency tensioning retractor |
73L |

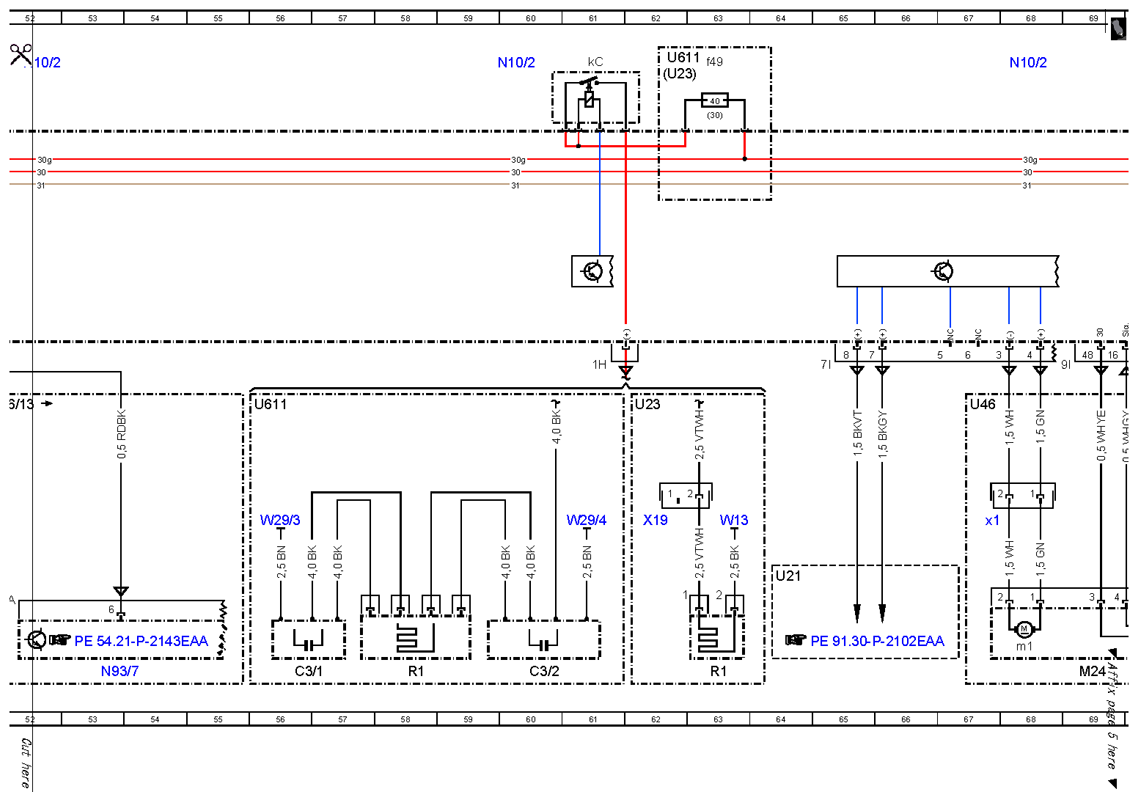

| C3/1 |
Rear window interference suppression capacitor 1 |
56L |
| C3/2 |
Rear window interference suppression capacitor 2 |
60L |
| Code 233 |
DISTRONIC PLUS |
47G |
| Code 237 |
Active Blind Spot Assist |
47G |
| Code 238 |
Active Lane Keeping Assist |
47G |
| Code B03 |
ECO start/stop function |
2K |
| Code B03 |
ECO start/stop function |
7H |
| Code B03 |
ECO start/stop function |
12H |
| Code U77 |
BLUETEC (SCR) diesel exhaust treatment |
30G |

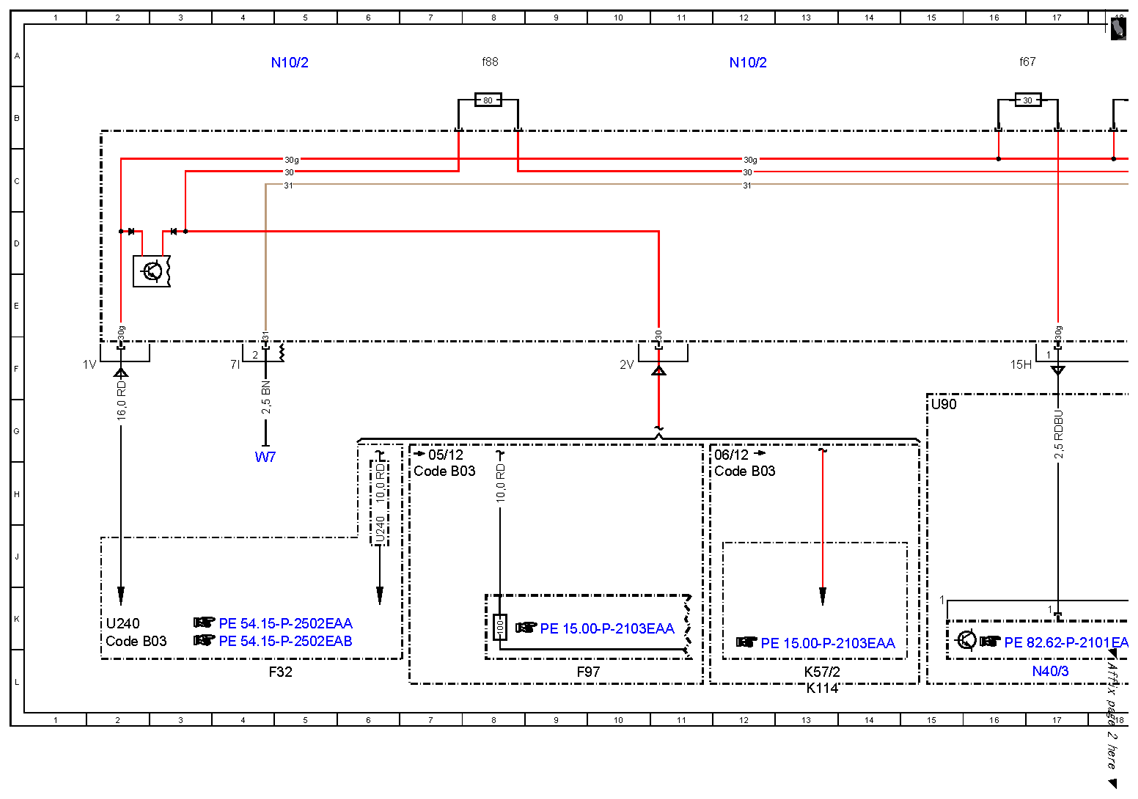

| F32 |
Front electrical prefuse box |
5L |
| F97 |
Rear SAM control unit with fuse and relay module circuit 30 fuse |
9L |
| K114 |
ECO start/stop function additional battery relay |
13L |
| K57/2 |
Additional battery relay |
13L |
| M24 |
Rear window roller sun blind motor |
69L |
| M24b1 |
Hall sensor/rear window roller sun blind motor |
70L |
| M24m1 |
Motor/rear window roller sun blind motor |
68L |
| M24x1 |
Rear window roller sun blind motor electrical connector |
67J |
| N10/2 |
Rear SAM control unit with fuse and relay module |
5A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
12A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
20A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
28A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
36A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
44A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
52A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
60A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
68A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
77A |
| N10/2f49 |
Fuse 49 |
63A |
| N10/2f50 |
Fuse 50 |
72A |
| N10/2f51 |
Fuse 51 |
76A |
| N10/2f67 |
Fuse 67 |
16A |
| N10/2f69 |
Fuse 69 |
18A |
| N10/2f70 |
Fuse 70 |
26A |
| N10/2f73 |
Fuse 73 |
40A |
| N10/2f75 |
Fuse 75 |
45A |
| N10/2f79 |
Fuse 79 |
50A |
| N10/2f88 |
Fuse 88 |
8A |
| N10/2kC |
Heated rear window relay |
61A |
| N40/3 |
Sound system amplifier control unit |
17L |
| N62 |
Parking system control unit |
49L |
| N62 |
Parking system control unit |
50L |
| N62/1 |
Radar sensors control unit |
49L |

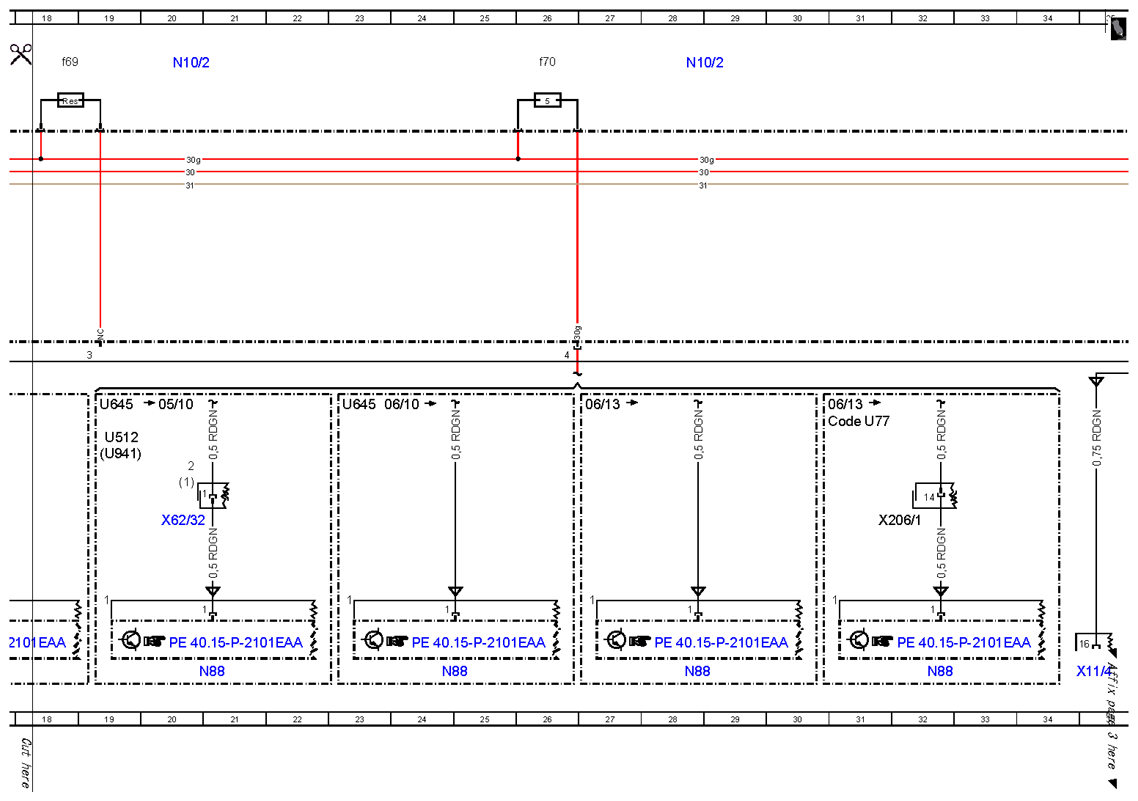

| N88 |
Tire pressure monitor control unit |
21L |
| N88 |
Tire pressure monitor control unit |
24L |
| N88 |
Tire pressure monitor control unit |
32L |
| N88 |
Tire pressure monitor control unit |
28L |
| N93/7 |
Chassis gateway control unit |
53L |
| R1 |
Rear window heater |
63L |
| R1 |
Rear window heater |
58L |
| U21 |
Valid for heated seats |
64J |
| U23 |
Valid for convertibles |
62G |
| U23 |
Valid for convertibles |
62A |
| U240 |
Valid for all except ECO start/stop function |
2K |
| U240 |
Valid for all except ECO start/stop function |
6J |
| U46 |
Valid for rear window roller sun blind |
67G |
| U512 |
Valid for electronic level control |
19G |
| U538 |
Valid for PARKTRONIC |
47H |
| U538 |
Valid for PARKTRONIC |
47G |
| U579 |
Valid for stationary heater |
35G |
| U579 |
Valid for stationary heater |
39G |
| U579 |
Valid for stationary heater |
43G |
| U611 |
Valid for Coupe |
56G |
| U611 |
Valid for Coupe |
62A |
| U645 |
Valid for tire pressure monitor |
19G |
| U645 |
Valid for tire pressure monitor |
23G |
| U775 |
Valid for emergency tensioning retractor |
71G |
| U90 |
Valid for sound system |
15G |
| U941 |
Valid without electronic level control |
19G |
| W13 |
Heated rear window ground point |
63J |
| W29/3 |
Left C-pillar ground point |
56J |
| W29/4 |
Ground point/right C-pillar |
61J |
| W7 |
Right wheelhouse trunk ground point |
4H |
| X11/4 |
Diagnostic connector |
35L |
| X19 |
Rear window heater electrical connector |
62J |
| X206/1 |
AdBlue® tank module electrical connector |
32J |
| X62/32 |
Rear axle electrical connector, left distributor |
20J |
