| A0 |
Color code key |
72L |
| A38/1 |
Pedestrian protection Hall sensor + engine hood ATA [EDW] switch |
24L |
| B4/1 |
Left fuel level indicator sensor |
30L |
| B4/2 |
Right fuel level indicator sensor |
27L |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
19G |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
23G |
| Code B03 |
ECO start/stop function |
19G |
| Code B03 |
ECO start/stop function |
31G |
| Code B03 |
ECO start/stop function |
67G |
| Code B03 |
ECO start/stop function |
2K |
| Code B03 |
ECO start/stop function |
7H |
| Code B03 |
ECO start/stop function |
12H |
| Code U60 |
Pedestrian protection |
23G |
| F32 |
Front electrical prefuse box |
32L |
| F32 |
Front electrical prefuse box |
5L |
| F97 |
Rear SAM control unit with fuse and relay module circuit 30 fuse |
9L |
| K114 |
ECO start/stop function additional battery relay |
13L |
| K57/2 |
Additional battery relay |
13L |
| M3 |
Fuel pump (FP) |
54L |
| N10/1 |
Front SAM control unit with fuse and relay module |
17L |
| N10/1 |
Front SAM control unit with fuse and relay module |
57L |
| N10/1 |
Front SAM control unit with fuse and relay module |
69L |
| N10/1f23 |
Fuse 23 |
16L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
20A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
28A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
39A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
43A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
52A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
60A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
68A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
5A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
12A |
| N10/2f39 |
Fuse 39 |
41A |
| N10/2f40 |
Fuse 40 |
50A |
| N10/2f41 |
Fuse 41 |
44A |
| N10/2f42 |
Fuse 42 |
46A |
| N10/2f43 |
Fuse 43 |
61A |

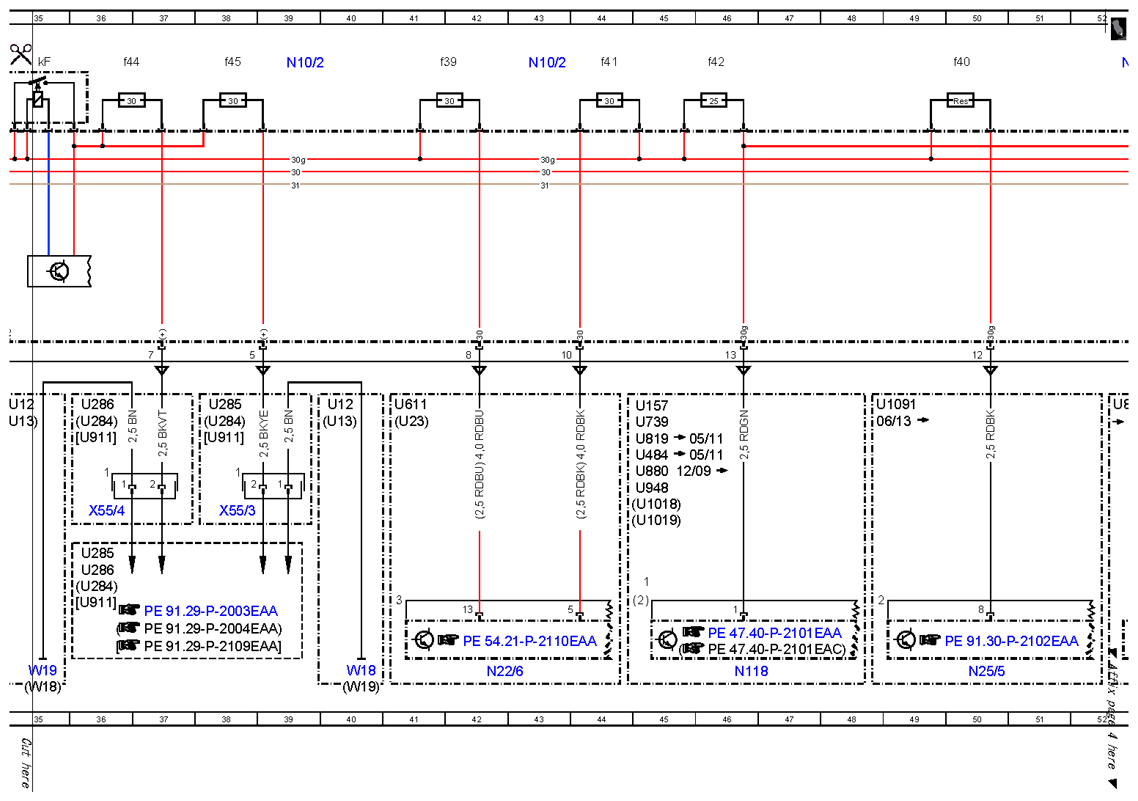

| N10/2f44 |
Fuse 44 |
36A |
| N10/2f45 |
Fuse 45 |
38A |
| N10/2f48 |
Fuse 48 |
34A |

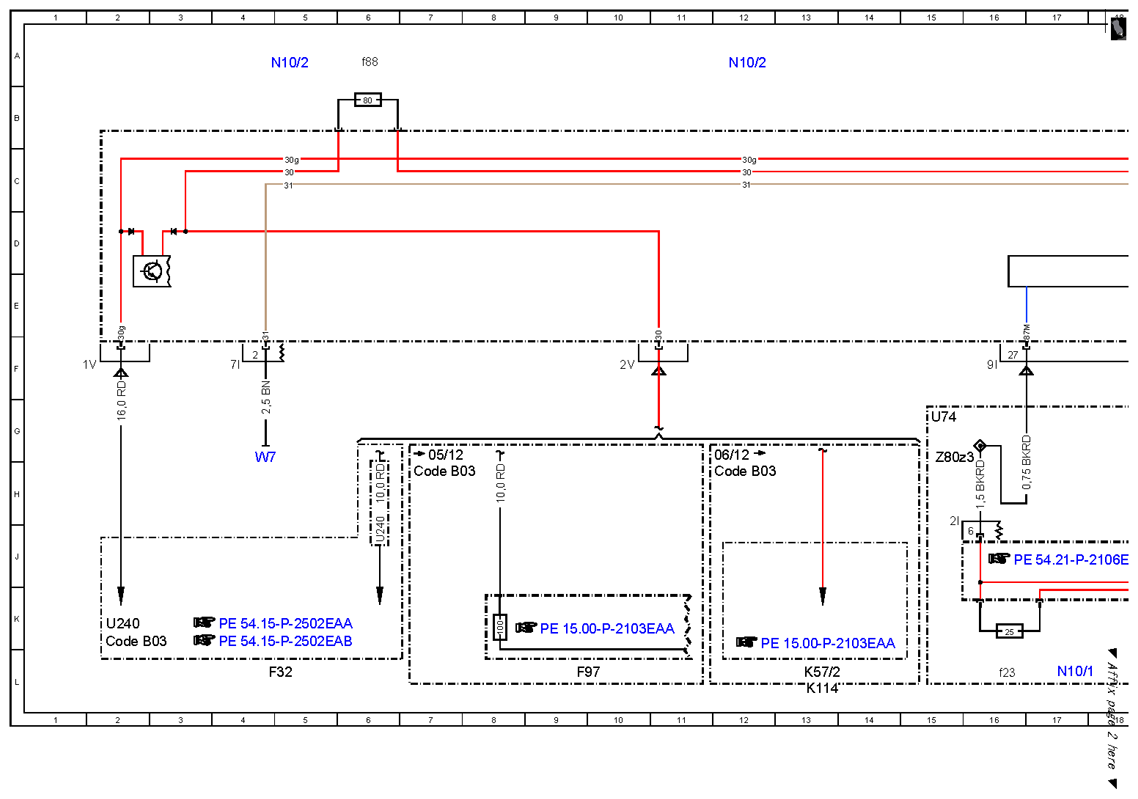

| N10/2f88 |
Fuse 88 |
6A |

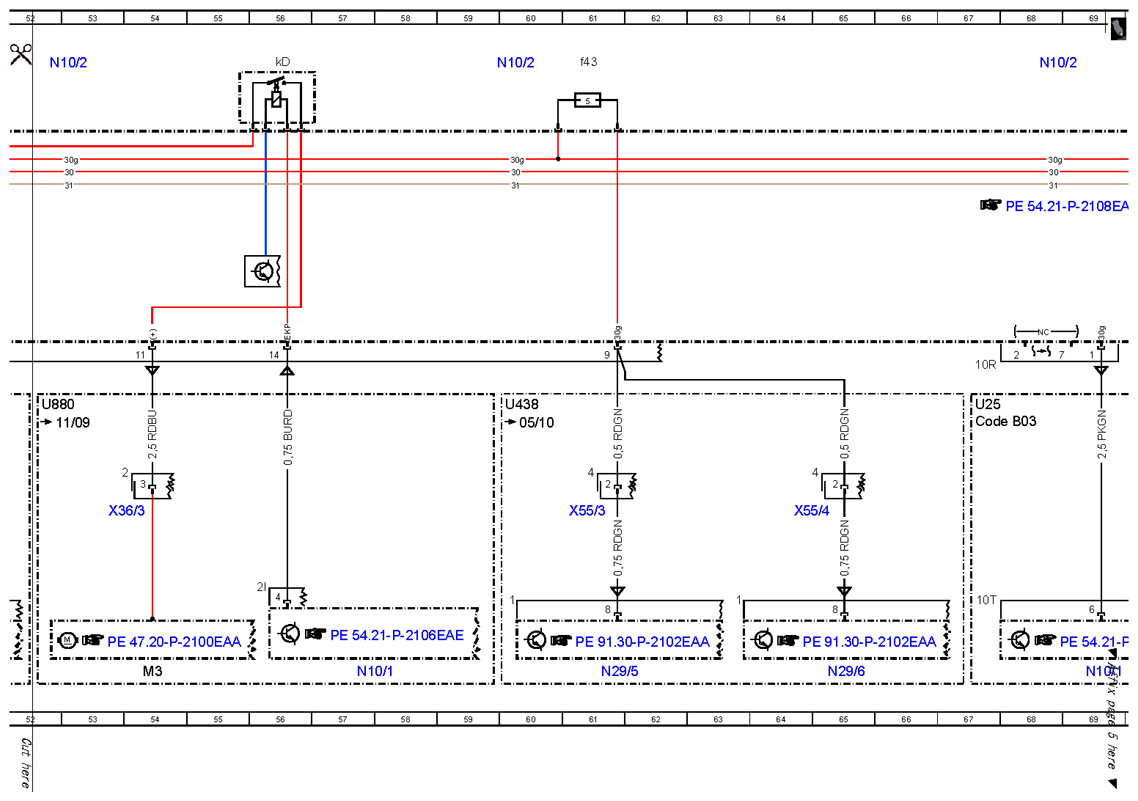

| N10/2kD |
Fuel pump relay |
56A |
| N10/2kF |
Seat adjustment relay |
35A |

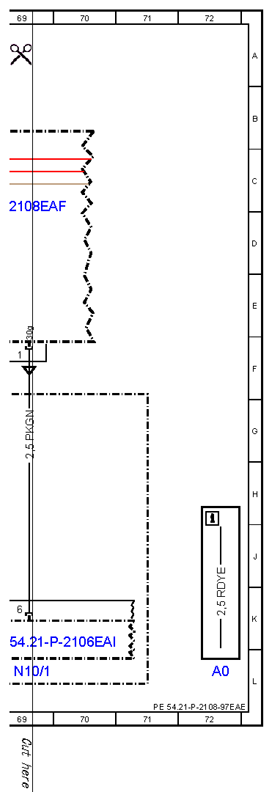

| N118 |
Fuel pump control unit |
46L |
| N22/6 |
Rear control unit |
42L |
| N25/5 |
Driver seat heater control unit |
50L |
| N29/5 |
Left front seat ventilation blower regulator |
61L |
| N29/6 |
Right front seat ventilation blower regulator |
65L |

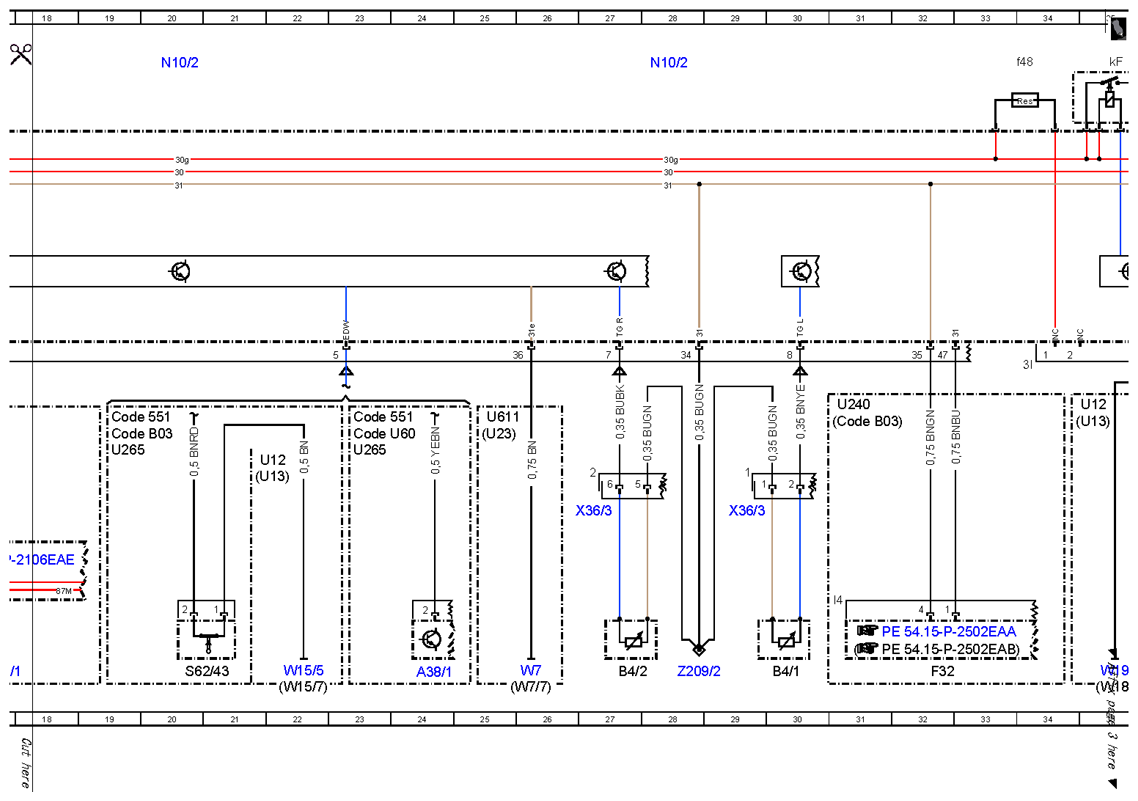

| S62/43 |
Left engine hood contact switch |
20L |
| U1018 |
Valid for gasoline engine 276 |
44H |
| U1019 |
Valid for gasoline engine 278 |
44J |
| U1091 |
Valid for balance control seat heater |
48G |
| U12 |
Valid for left-hand drive vehicles |
21H |
| U12 |
Valid for left-hand drive vehicles |
35G |
| U12 |
Valid for left-hand drive vehicles |
40G |
| U13 |
Valid for right-hand drive vehicles |
21H |
| U13 |
Valid for right-hand drive vehicles |
34G |
| U13 |
Valid for right-hand drive vehicles |
40G |
| U157 |
Valid for combustion engine 272 DE |
45G |
| U23 |
Valid for convertibles |
25G |
| U23 |
Valid for convertibles |
41G |
| U240 |
Valid for all except ECO start/stop function |
31G |
| U240 |
Valid for all except ECO start/stop function |
2K |
| U240 |
Valid for all except ECO start/stop function |
6J |
| U25 |
Valid for automatic transmission |
67G |
| U265 |
Not valid for pedestrian protection |
19G |
| U265 |
Not valid for pedestrian protection |
23G |
| U284 |
Valid for fully electric seat adjustment |
36K |
| U284 |
Valid for fully electric seat adjustment |
36G |
| U284 |
Valid for fully electric seat adjustment |
38G |
| U285 |
Valid for partially electric driver seat adjustment |
36J |
| U285 |
Valid for partially electric driver seat adjustment |
38G |
| U286 |
Valid for partially electric front passenger seat adjustment |
36J |
| U286 |
Valid for partially electric front passenger seat adjustment |
36G |
| U438 |
Valid for seat ventilation |
60G |
| U484 |
Valid for gasoline engine 273 |
45G |
| U611 |
Valid for Coupe |
25G |
| U611 |
Valid for Coupe |
41G |
| U739 |
Valid for gasoline engine 271 DE |
45G |
| U74 |
Valid for diesel engines |
15G |
| U819 |
Valid for gasoline engine 272 |
45G |
| U880 |
Valid for diesel engine 642 |
45H |
| U880 |
Valid for diesel engine 642 |
52G |
| U911 |
Valid for lumbar support |
36K |
| U911 |
Valid for lumbar support |
36G |
| U911 |
Valid for lumbar support |
38G |
| U948 |
Valid for diesel engine 651 |
45H |
| W15/5 |
Left front footwell ground point |
22L |
| W15/7 |
Right front footwell ground point |
22L |
| W18 |
Left front seat crossmember ground point |
35L |
| W18 |
Left front seat crossmember ground point |
40L |
| W19 |
Right front seat crossmember ground point |
35L |
| W19 |
Right front seat crossmember ground point |
40L |
| W7 |
Right wheelhouse trunk ground point |
26L |
| W7 |
Right wheelhouse trunk ground point |
4H |
| W7/7 |
Right spare wheel well ground point |
26L |
| X36/3 |
Fuel pump harness electrical connector |
27H |
| X36/3 |
Fuel pump harness electrical connector |
29H |
| X36/3 |
Fuel pump harness electrical connector |
54H |
| X55/3 |
Driver seat connector block |
38H |
| X55/3 |
Driver seat connector block |
61H |
| X55/4 |
Front passenger seat connector block |
36H |
| X55/4 |
Front passenger seat connector block |
64H |
| Z209/2 |
Fuel pump control unit connector sleeve |
28L |
| Z80z3 |
Cross section reduction connector sleeve |
15G |
