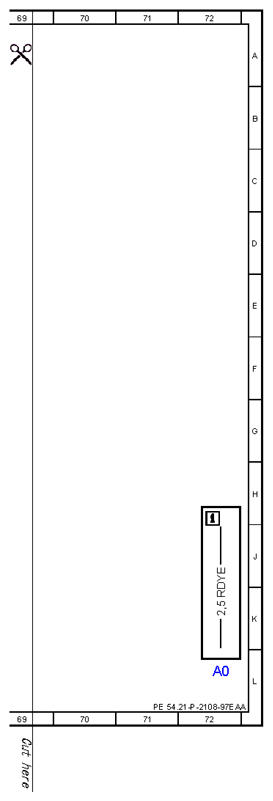

| A0 |
Color code key |
72L |
| B95 |
Battery sensor |
19L |
| B95 |
Battery sensor |
16L |
| Code 218 |
Backup camera |
62J |
| Code 494 |
USA version |
27H |
| Code 494 |
USA version |
37H |
| Code B03 |
ECO start/stop function |
2K |
| Code B03 |
ECO start/stop function |
7H |
| Code B03 |
ECO start/stop function |
12H |
| E18/4 |
Right luggage compartment lamp |
23L |
| E18/5 |
Left luggage compartment lamp |
26L |

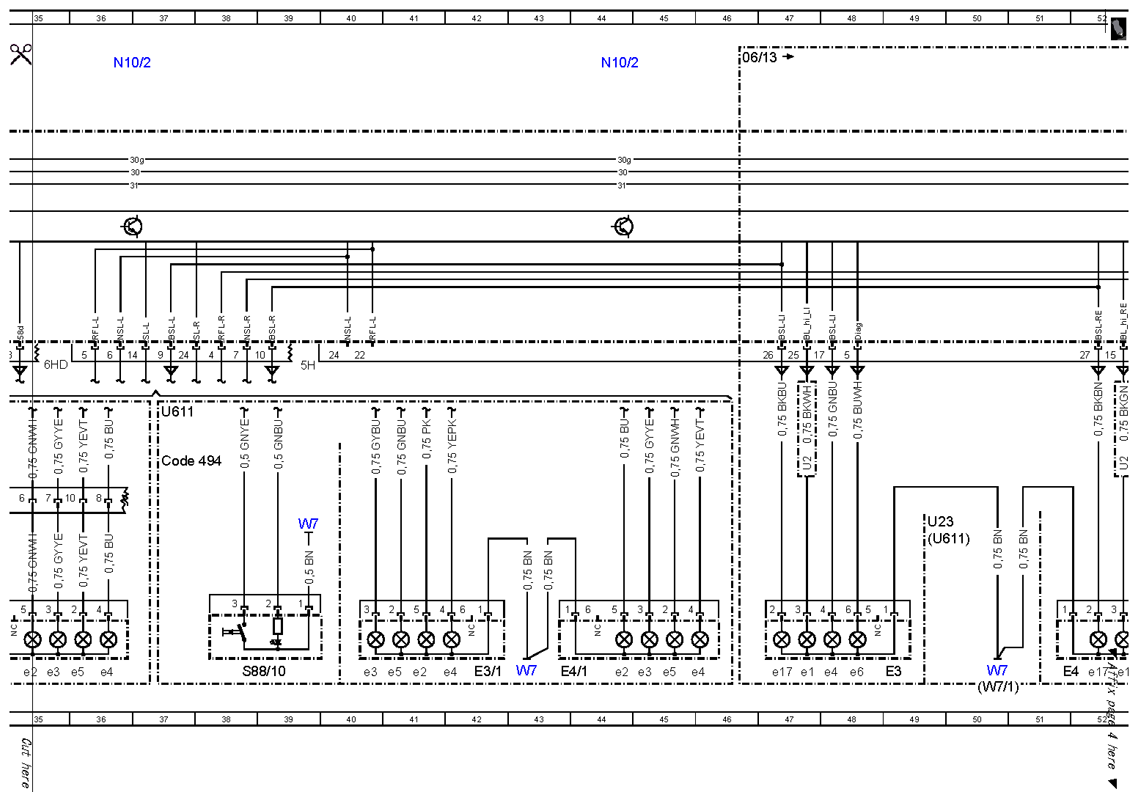

| E3 |
Left rear lamp unit |
49L |
| E3 |
Left rear lamp unit |
56L |
| E3/1 |
Inner left rear lamp unit |
33L |
| E3/1 |
Inner left rear lamp unit |
42L |
| E3/1e2 |
Left inside taillight |
32L |
| E3/1e2 |
Left inside taillight |
41L |
| E3/1e3 |
Left backup lamp |
31L |
| E3/1e3 |
Left backup lamp |
40L |
| E3/1e4 |
Inner left stop lamp and taillamp |
32L |
| E3/1e4 |
Inner left stop lamp and taillamp |
42L |
| E3/1e5 |
Left rear fog lamp |
31L |
| E3/1e5 |
Left rear fog lamp |
41L |
| E3e1 |
Left rear turn signal lamp |
47L |
| E3e1 |
Left rear turn signal lamp |
56L |
| E3e17 |
Left taillight and brake light |
47L |
| E3e4 |
Left stop lamp |
48L |
| E3e6 |
Left side-marker lamp |
48L |
| E3e9 |
Left stop lamp and taillamp and parking lamp |
54L |
| E4 |
Right rear lamp unit |
51L |
| E4 |
Right rear lamp unit |
60L |
| E4/1 |
Inner right rear lamp unit |
34L |
| E4/1 |
Inner right rear lamp unit |
43L |
| E4/1e2 |
Right inside taillight |
35L |
| E4/1e2 |
Right inside taillight |
44L |
| E4/1e3 |
Right backup lamp |
35L |
| E4/1e3 |
Right backup lamp |
45L |
| E4/1e4 |
Inner right brake light and taillight |
36L |
| E4/1e4 |
Inner right brake light and taillight |
45L |
| E4/1e5 |
Right rear fog lamp |
36L |
| E4/1e5 |
Right rear fog lamp |
45L |
| E4e1 |
Right rear turn signal lamp |
52L |
| E4e1 |
Right rear turn signal lamp |
60L |
| E4e17 |
Right taillight and brake light |
52L |
| E4e4 |
Right stop lamp |
53L |
| E4e6 |
Right side-marker lamp |
53L |
| E4e9 |
Right stop lamp and taillamp and parking lamp |
61L |

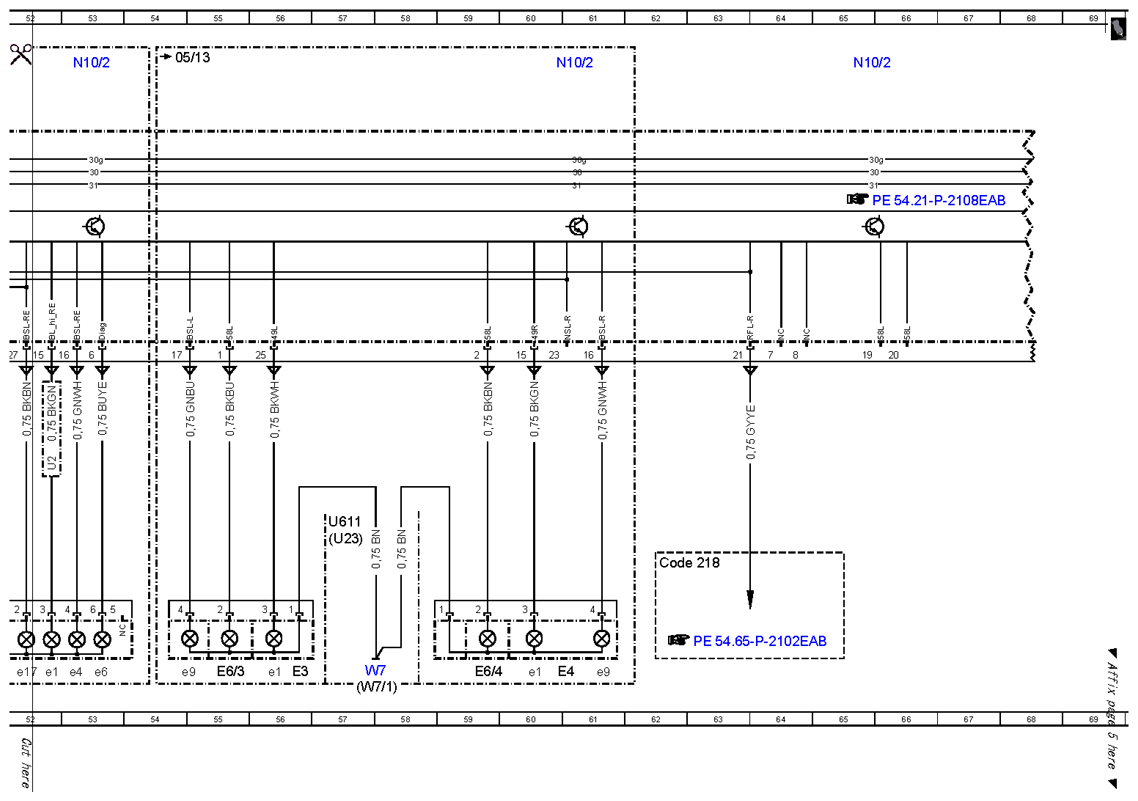

| E6/3 |
Left rear side-marker lamp |
55L |
| E6/4 |
Right rear side-marker lamp |
59L |

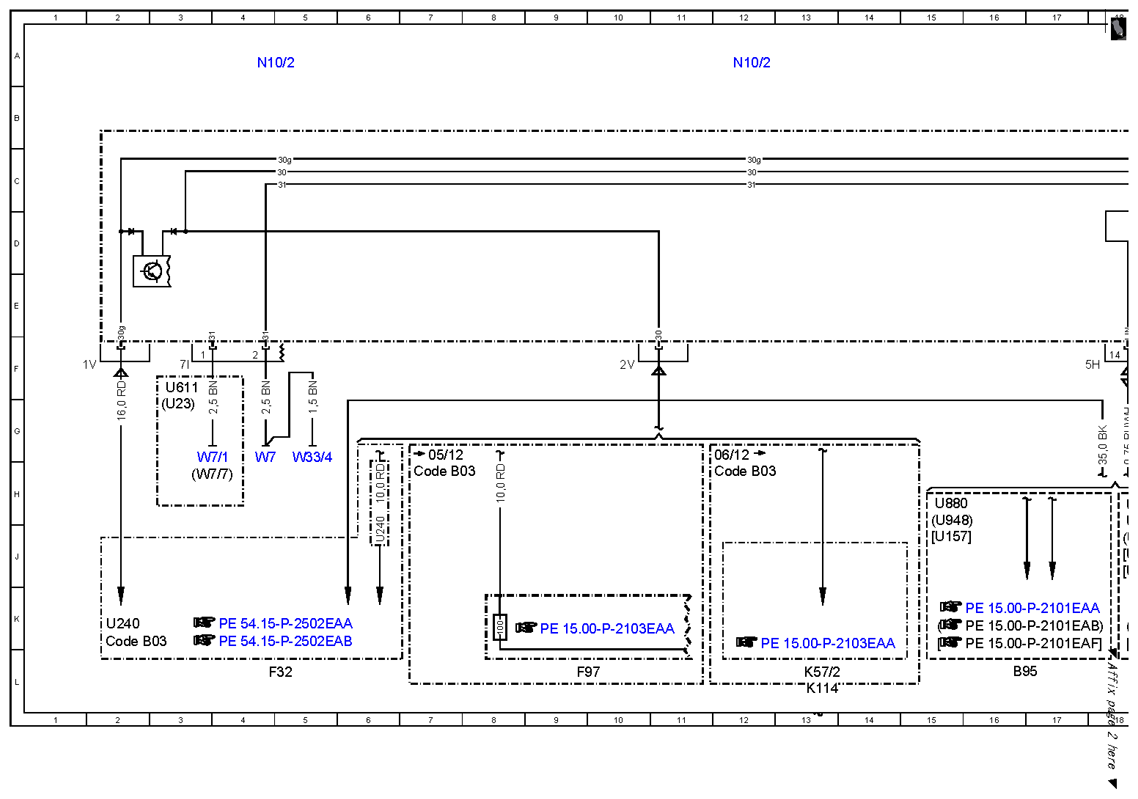

| F32 |
Front electrical prefuse box |
5L |
| F97 |
Rear SAM control unit with fuse and relay module circuit 30 fuse |
9L |
| K114 |
ECO start/stop function additional battery relay |
13L |
| K57/2 |
Additional battery relay |
13L |

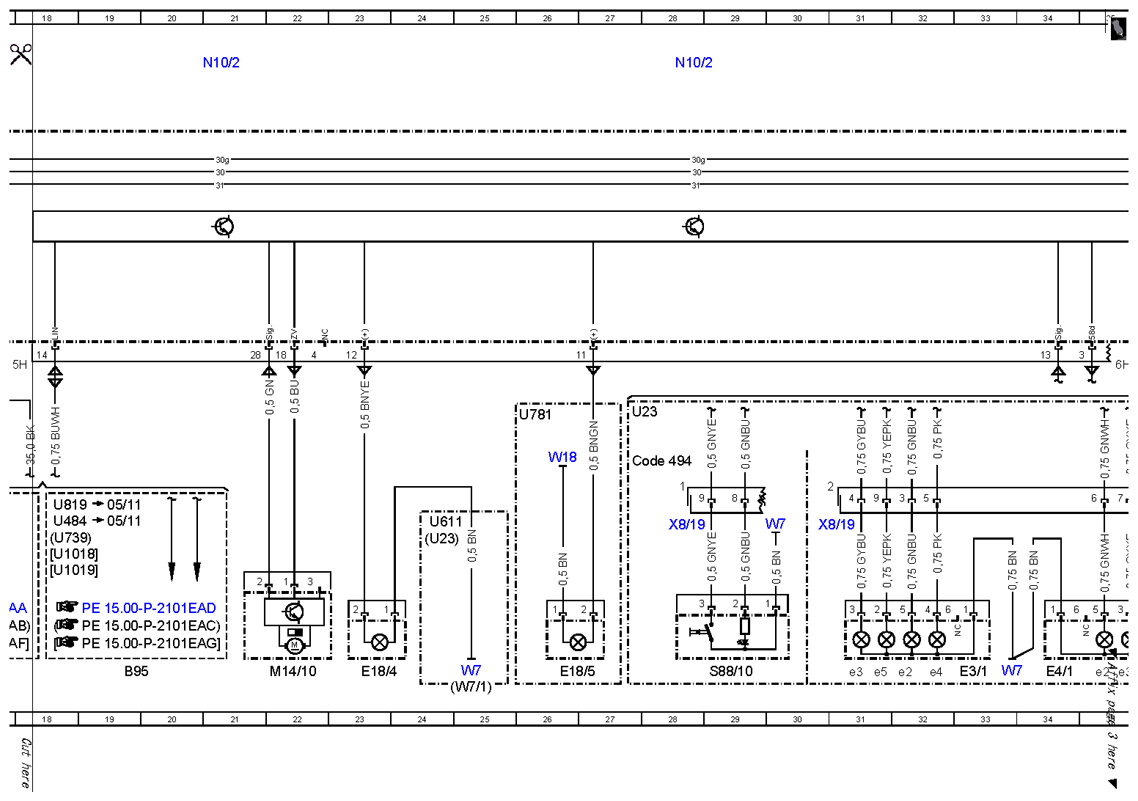

| M14/10 |
Tank cap central locking motor |
22L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
12A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
4A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
21A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
28A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
36A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
44A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
53A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
65A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
61A |
| S88/10 |
Trunk lid emergency opening switch |
29L |
| S88/10 |
Trunk lid emergency opening switch |
38L |
| U1018 |
Valid for gasoline engine 276 |
18J |
| U1019 |
Valid for gasoline engine 278 |
18J |
| U157 |
Valid for combustion engine 272 DE |
15J |
| U2 |
Valid for all except USA |
47G |
| U2 |
Valid for all except USA |
52G |
| U23 |
Valid for convertibles |
3G |
| U23 |
Valid for convertibles |
24J |
| U23 |
Valid for convertibles |
27G |
| U23 |
Valid for convertibles |
49J |
| U23 |
Valid for convertibles |
57J |
| U240 |
Valid for all except ECO start/stop function |
2K |
| U240 |
Valid for all except ECO start/stop function |
6J |
| U484 |
Valid for gasoline engine 273 |
18J |
| U611 |
Valid for Coupe |
3F |
| U611 |
Valid for Coupe |
24J |
| U611 |
Valid for Coupe |
37G |
| U611 |
Valid for Coupe |
49J |
| U611 |
Valid for Coupe |
57J |
| U739 |
Valid for gasoline engine 271 DE |
18J |
| U781 |
Valid for left trunk lamp |
26G |
| U819 |
Valid for gasoline engine 272 |
18H |
| U880 |
Valid for diesel engine 642 |
15H |
| U948 |
Valid for diesel engine 651 |
15J |
| W18 |
Left front seat crossmember ground point |
26H |
| W33/4 |
Fuel tank filler neck ground point |
5H |
| W7 |
Right wheelhouse trunk ground point |
4H |
| W7 |
Right wheelhouse trunk ground point |
25L |
| W7 |
Right wheelhouse trunk ground point |
33L |
| W7 |
Right wheelhouse trunk ground point |
30J |
| W7 |
Right wheelhouse trunk ground point |
43L |
| W7 |
Right wheelhouse trunk ground point |
50L |
| W7 |
Right wheelhouse trunk ground point |
39J |
| W7 |
Right wheelhouse trunk ground point |
57L |
| W7/1 |
Right taillamp trunk ground point |
3H |
| W7/1 |
Right taillamp trunk ground point |
25L |
| W7/1 |
Right taillamp trunk ground point |
50L |
| W7/1 |
Right taillamp trunk ground point |
57L |
| W7/7 |
Right spare wheel well ground point |
3H |
| X8/19 |
Trunk lid electrical connector |
28J |
| X8/19 |
Trunk lid electrical connector |
31J |
