Wiring diagram of reversing camera - PE54.65-P-2103-97EAA

Code:	Designation:	Position:
A0	Color code key	32L
A40/3	COMAND control unit	10L
A40/3	COMAND control unit	22L
B84/3	Backup camera	4A
B84/3	Backup camera	10A
N10/2	Rear SAM control unit with fuse and relay module	3L
N10/2	Rear SAM control unit with fuse and relay module	15L
N10/2f84	Fuse 83	2L
N10/2f84	Fuse 83	14L
U23	Valid for convertibles	1A
U611	Valid for Coupe	12A
W18/3	Left front seat crossmember ground point 2	2H
W7	Right wheelhouse trunk ground point	-
X169	Backup camera electrical connector	1E
X169	Backup camera electrical connector	10E

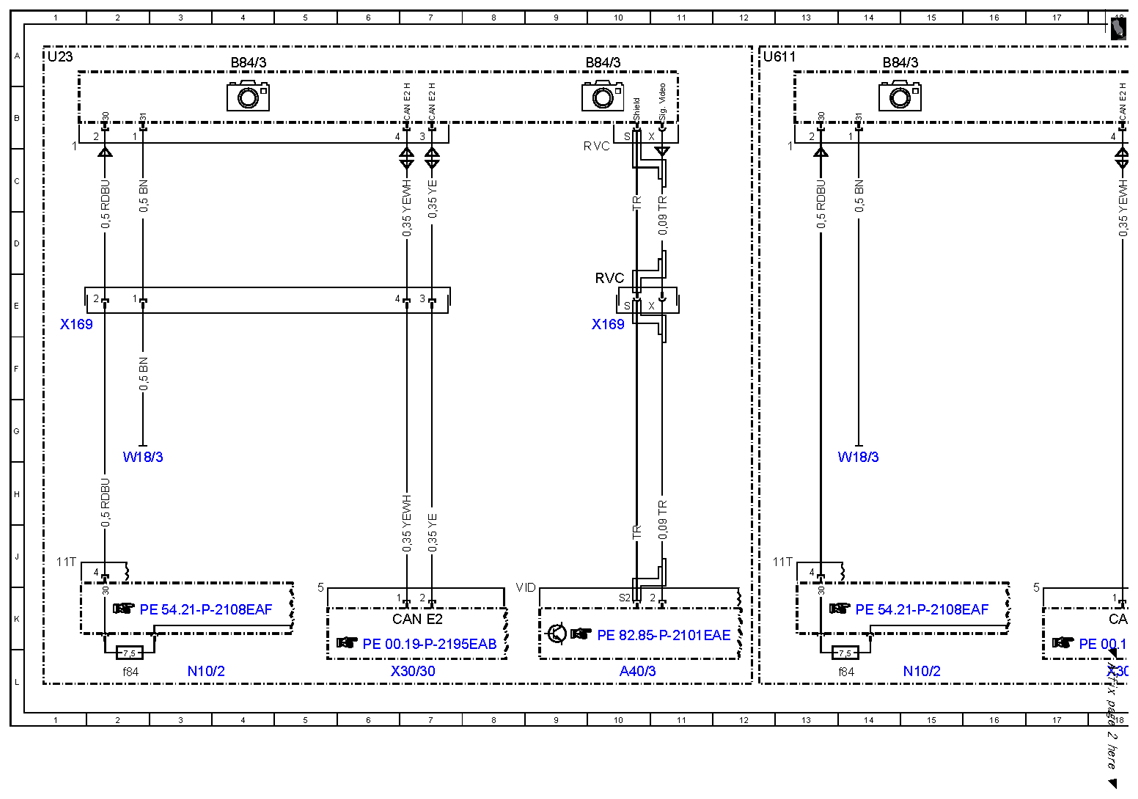

Fig 1: Reversing Camera Wiring Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

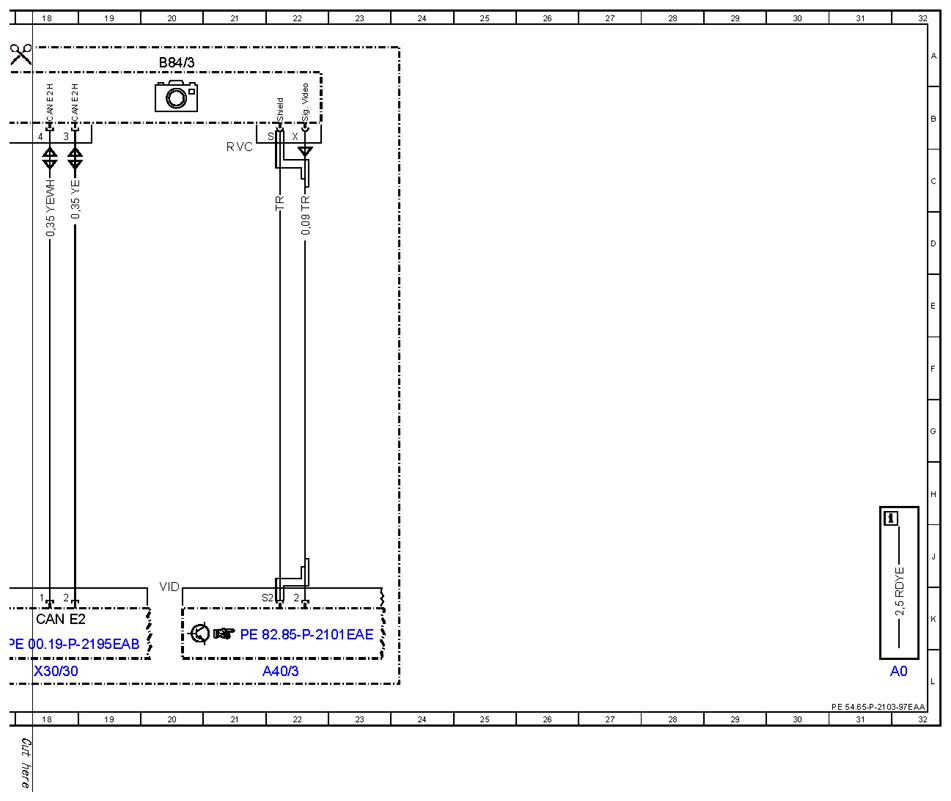

Fig 2: Reversing Camera Wiring Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA
