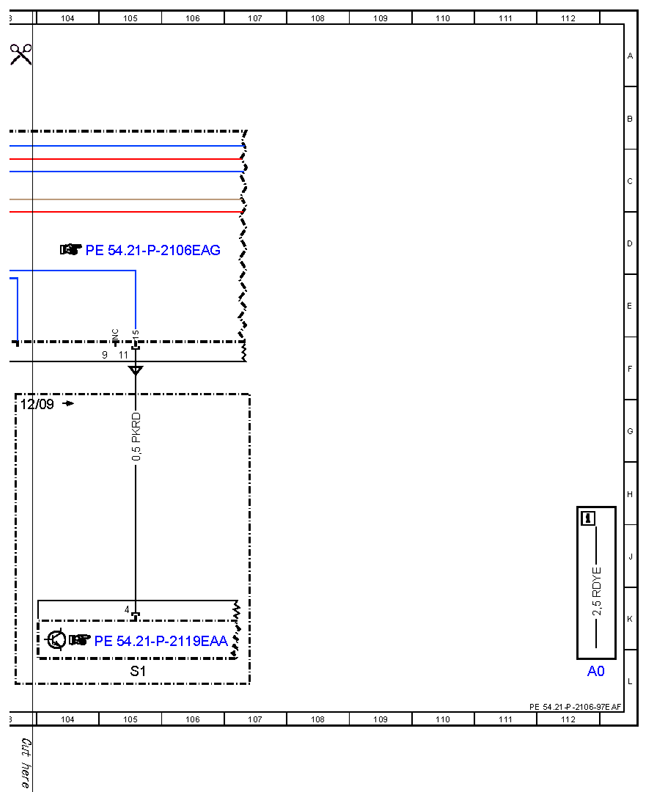

| A0 |
Color code key |
112L |

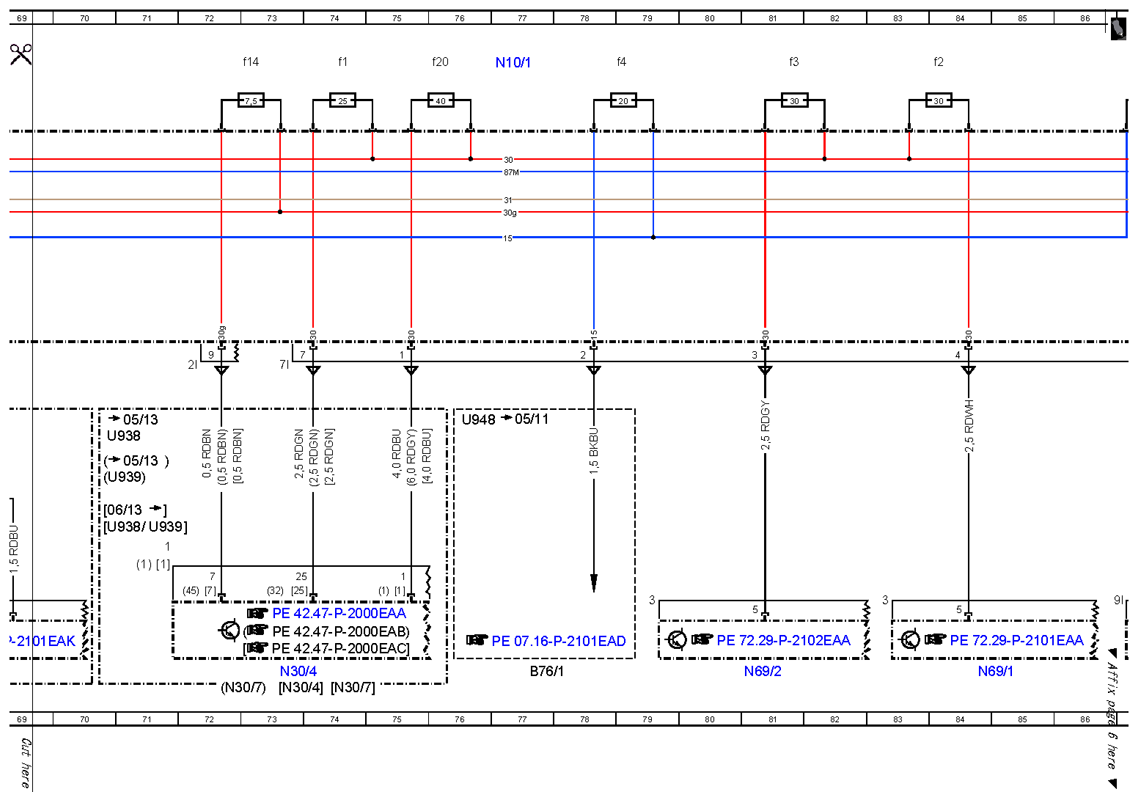

| B76/1 |
Condensation sensor for fuel filter with heating element |
77L |

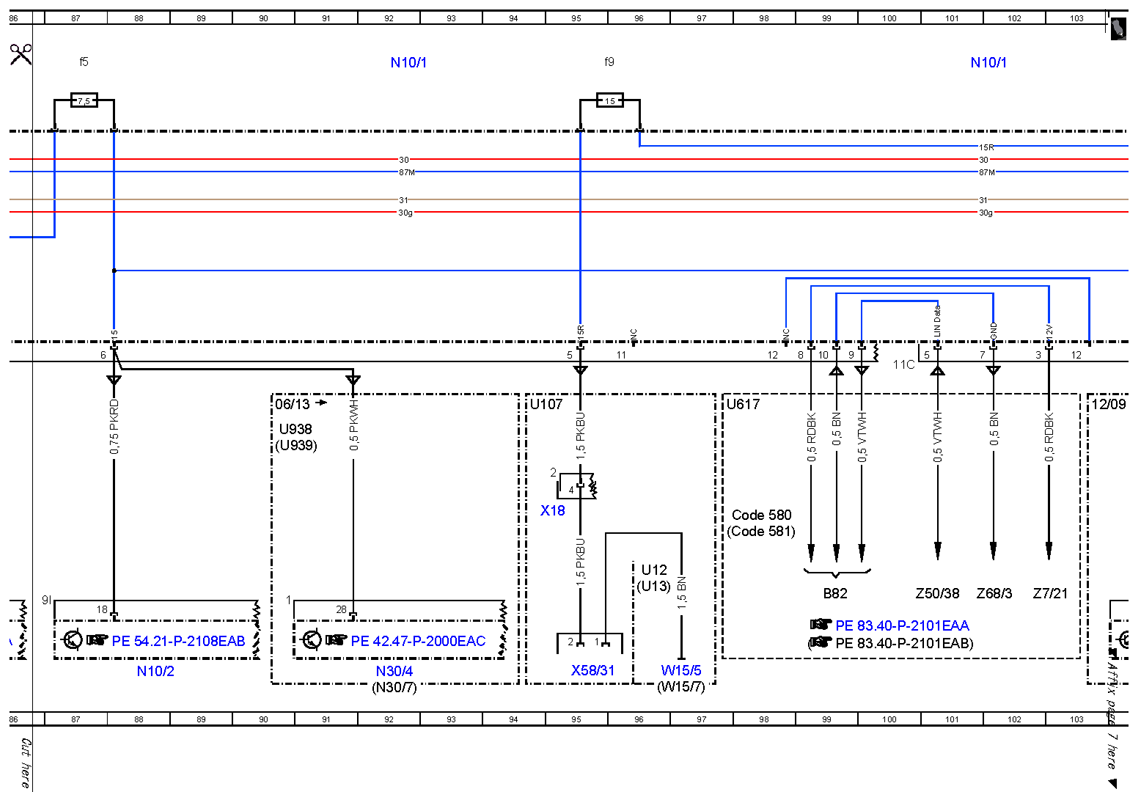

| B82 |
Interior humidity/temperature sensor |
99K |
| Code 580 |
Automatic air conditioning |
97H |
| Code 581 |
Comfort automatic air conditioning |
97J |

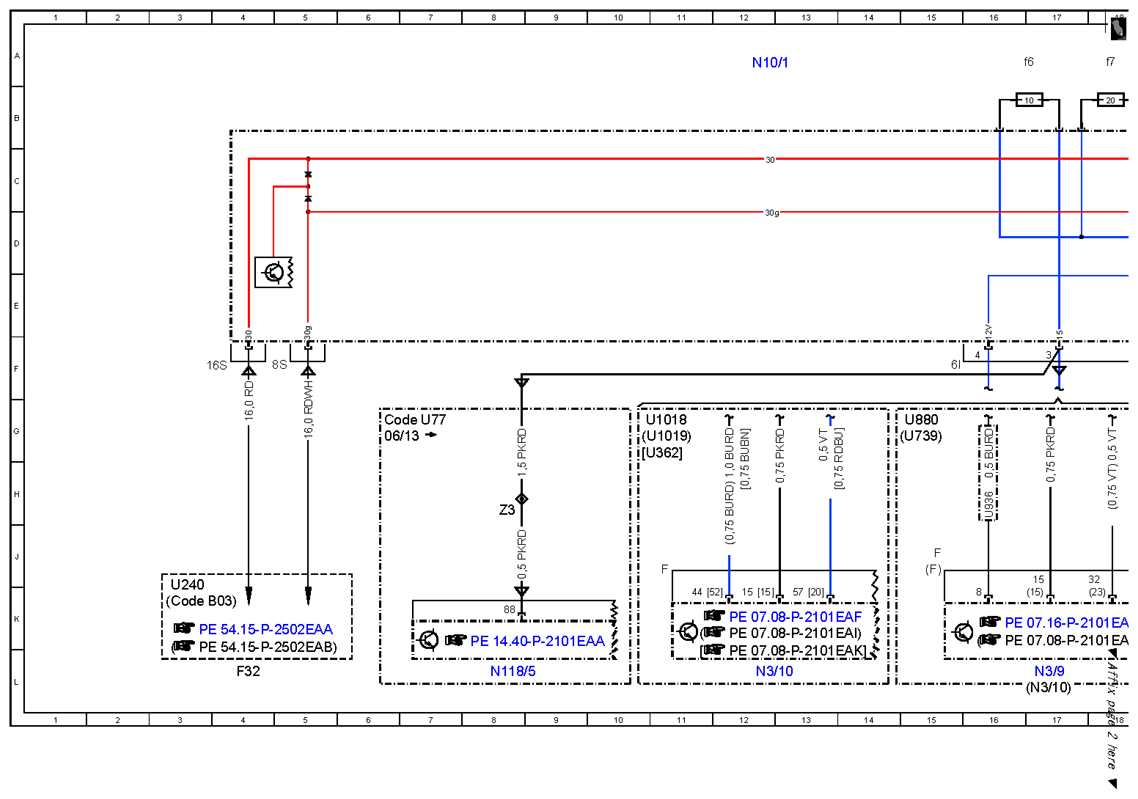

| Code B03 |
ECO start/stop function |
3K |
| Code U77 |
BLUETEC (SCR) diesel exhaust treatment |
60G |
| Code U77 |
BLUETEC (SCR) diesel exhaust treatment |
6G |
| F32 |
Front electrical prefuse box |
4L |

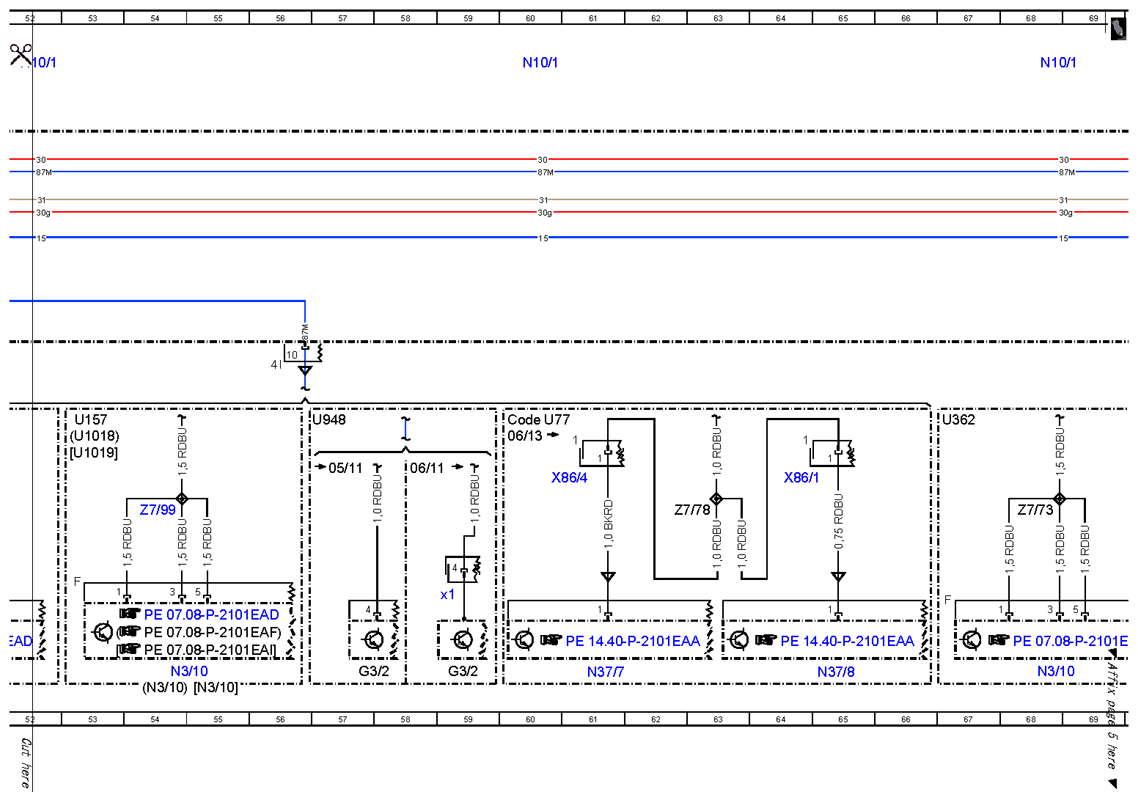

| G3/2 |
Oxygen sensor upstream of catalytic converter |
59L |
| G3/2 |
Oxygen sensor upstream of catalytic converter |
57L |
| G3/2x1 |
Electrical connector for oxygen sensor upstream of catalytic converter |
59K |

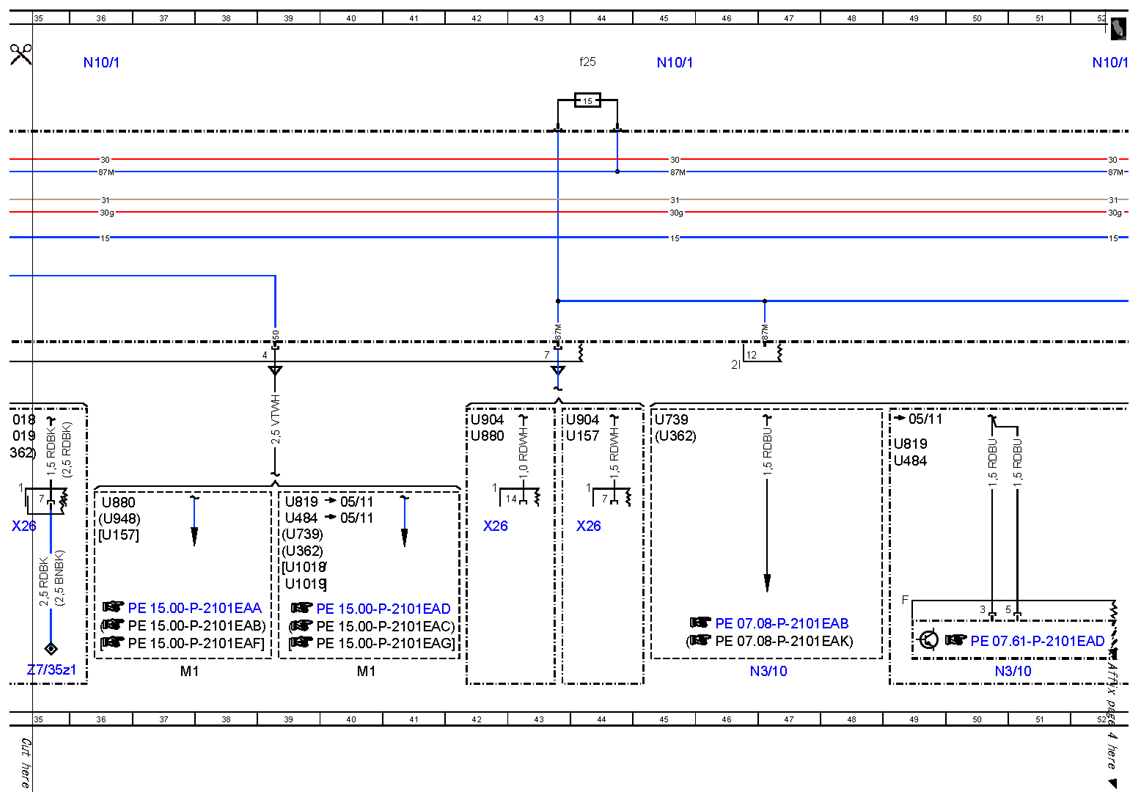

| M1 |
Starter |
37L |
| M1 |
Starter |
40L |
| N10/1 |
Front SAM control unit with fuse and relay module |
12A |

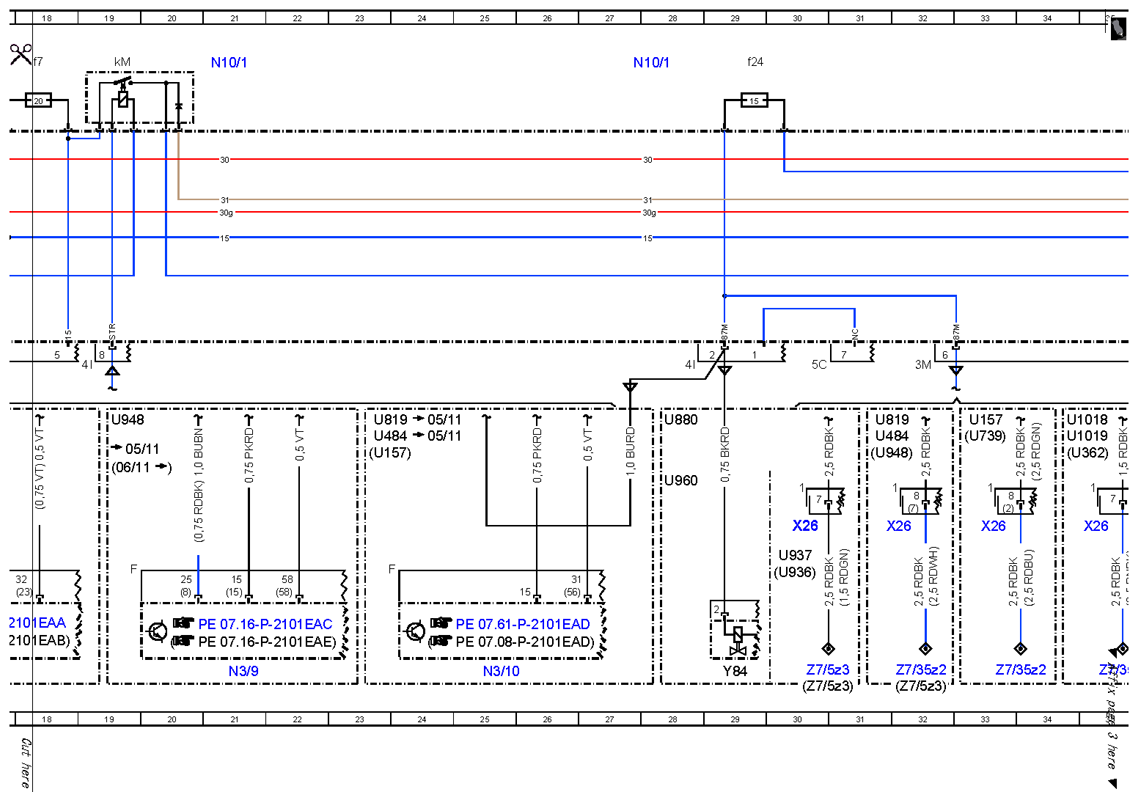

| N10/1 |
Front SAM control unit with fuse and relay module |
21A |
| N10/1 |
Front SAM control unit with fuse and relay module |
36A |
| N10/1 |
Front SAM control unit with fuse and relay module |
45A |
| N10/1 |
Front SAM control unit with fuse and relay module |
52A |
| N10/1 |
Front SAM control unit with fuse and relay module |
60A |
| N10/1 |
Front SAM control unit with fuse and relay module |
68A |
| N10/1 |
Front SAM control unit with fuse and relay module |
77A |
| N10/1 |
Front SAM control unit with fuse and relay module |
92A |
| N10/1 |
Front SAM control unit with fuse and relay module |
101A |
| N10/1 |
Front SAM control unit with fuse and relay module |
28A |
| N10/1f1 |
Fuse 1 |
74A |
| N10/1f14 |
Fuse 14 |
73A |
| N10/1f2 |
Fuse 2 |
84A |
| N10/1f20 |
Fuse 20 |
76A |
| N10/1f24 |
Fuse 24 |
29A |
| N10/1f25 |
Fuse 25 |
44A |
| N10/1f3 |
Fuse 3 |
81A |
| N10/1f4 |
Fuse 4 |
79A |
| N10/1f5 |
Fuse 5 |
87A |
| N10/1f6 |
Fuse 6 |
16A |
| N10/1f7 |
Fuse 7 |
18A |
| N10/1f9 |
Fuse 9 |
95A |
| N10/1kM |
Starter circuit 50 relay |
19A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
88L |
| N118/5 |
AdBlue® control unit |
8L |
| N3/10 |
ME-SFI [ME] control unit |
17L |
| N3/10 |
ME-SFI [ME] control unit |
12L |
| N3/10 |
ME-SFI [ME] control unit |
25L |
| N3/10 |
ME-SFI [ME] control unit |
50L |
| N3/10 |
ME-SFI [ME] control unit |
54L |
| N3/10 |
ME-SFI [ME] control unit |
54L |
| N3/10 |
ME-SFI [ME] control unit |
55L |
| N3/10 |
ME-SFI [ME] control unit |
68L |
| N3/10 |
ME-SFI [ME] control unit |
47L |
| N3/9 |
CDI control unit |
17L |
| N3/9 |
CDI control unit |
21L |
| N30/4 |
Electronic Stability Program control unit |
73L |
| N30/4 |
Electronic Stability Program control unit |
73L |
| N30/4 |
Electronic Stability Program control unit |
92L |
| N30/7 |
Premium Electronic Stability Program control unit |
72L |
| N30/7 |
Premium Electronic Stability Program control unit |
74L |
| N30/7 |
Premium Electronic Stability Program control unit |
92L |
| N37/7 |
NOx sensor control unit downstream of diesel particulate filter |
61L |
| N37/8 |
Control unit of NOx sensor downstream of SCR catalytic converter |
65L |
| N69/1 |
Left front door control unit |
84L |
| N69/2 |
Right front door control unit |
81L |
| S1 |
Exterior lights switch |
105L |
| U1018 |
Valid for gasoline engine 276 |
10G |
| U1018 |
Valid for gasoline engine 276 |
39J |
| U1018 |
Valid for gasoline engine 276 |
53G |
| U1018 |
Valid for gasoline engine 276 |
34G |
| U1019 |
Valid for gasoline engine 278 |
10G |
| U1019 |
Valid for gasoline engine 278 |
39K |
| U1019 |
Valid for gasoline engine 278 |
53G |
| U1019 |
Valid for gasoline engine 278 |
34G |
| U107 |
Valid for socket in glove compartment |
94G |
| U12 |
Valid for left-hand drive vehicles |
96J |
| U13 |
Valid for right-hand drive vehicles |
96K |
| U157 |
Valid for combustion engine 272 DE |
23G |
| U157 |
Valid for combustion engine 272 DE |
36J |
| U157 |
Valid for combustion engine 272 DE |
43G |
| U157 |
Valid for combustion engine 272 DE |
53G |
| U157 |
Valid for combustion engine 272 DE |
33G |
| U240 |
Valid for all except ECO start/stop function |
3K |
| U362 |
Valid for gasoline engine 274 |
10G |
| U362 |
Valid for gasoline engine 274 |
39J |
| U362 |
Valid for gasoline engine 274 |
45G |
| U362 |
Valid for gasoline engine 274 |
67G |
| U362 |
Valid for gasoline engine 274 |
34G |
| U484 |
Valid for gasoline engine 273 |
23G |
| U484 |
Valid for gasoline engine 273 |
39H |
| U484 |
Valid for gasoline engine 273 |
49H |
| U484 |
Valid for gasoline engine 273 |
31G |
| U617 |
Interior humidity/temperature sensor |
97G |
| U739 |
Valid for gasoline engine 271 DE |
14G |
| U739 |
Valid for gasoline engine 271 DE |
39J |
| U739 |
Valid for gasoline engine 271 DE |
45G |
| U739 |
Valid for gasoline engine 271 DE |
33G |
| U819 |
Valid for gasoline engine 272 |
23G |
| U819 |
Valid for gasoline engine 272 |
39H |
| U819 |
Valid for gasoline engine 272 |
49G |
| U819 |
Valid for gasoline engine 272 |
31G |
| U880 |
Valid for diesel engine 642 |
15G |
| U880 |
Valid for diesel engine 642 |
36H |
| U880 |
Valid for diesel engine 642 |
42G |
| U880 |
Valid for diesel engine 642 |
28G |
| U904 |
Wiring harness installed but nonfunctional |
42G |
| U904 |
Wiring harness installed but nonfunctional |
43G |
| U936 |
Valid for increased engine power |
16H |
| U936 |
Valid for increased engine power |
30J |
| U937 |
Valid for all except increased engine power |
30J |
| U938 |
Valid for ESP Basic |
70J |
| U938 |
Valid for ESP Basic |
70G |
| U938 |
Valid for ESP Basic |
90G |
| U939 |
Valid for ESP Premium |
71J |
| U939 |
Valid for ESP Premium |
70H |
| U939 |
Valid for ESP Premium |
90G |
| U948 |
Valid for diesel engine 651 |
19G |
| U948 |
Valid for diesel engine 651 |
36H |
| U948 |
Valid for diesel engine 651 |
57G |
| U948 |
Valid for diesel engine 651 |
76G |
| U948 |
Valid for diesel engine 651 |
31G |
| U960 |
Valid for radiator shutters |
28H |
| W15/5 |
Left front footwell ground point |
97L |
| W15/7 |
Right front footwell ground point |
96L |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
95H |
| X26 |
Interior and engine wiring harness electrical connector |
42J |
| X26 |
Interior and engine wiring harness electrical connector |
44J |
| X26 |
Interior and engine wiring harness electrical connector |
30J |
| X26 |
Interior and engine wiring harness electrical connector |
33J |
| X26 |
Interior and engine wiring harness electrical connector |
32J |
| X26 |
Interior and engine wiring harness electrical connector |
35J |
| X58/31 |
Glove box socket |
95L |
| X86/1 |
Nitrogen oxides control unit electrical connector |
64H |
| X86/4 |
Right nitrogen oxides control unit electrical connector |
61H |
| Y84 |
Radiator shutters actuator |
29L |
| Z3 |
Tml. 15 connector sleeve |
8H |
| Z50/38 |
Connector sleeve/cockpit LIN bus |
101K |
| Z68/3 |
Vehicle interior LIN bus ground line connector sleeve |
102K |
| Z7/21 |
Air conditioning circuit 30 connector sleeve |
102K |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
35L |
| Z7/35z2 |
Circuit 87 M1e connector sleeve |
33L |
| Z7/35z2 |
Circuit 87 M1e connector sleeve |
32L |
| Z7/5z3 |
Circuit 87 connector sleeve |
30L |
| Z7/5z3 |
Circuit 87 connector sleeve |
30L |
| Z7/5z3 |
Circuit 87 connector sleeve |
32L |
| Z7/73 |
Circuit 87 connector sleeve |
68H |
| Z7/78 |
Vehicle interior circuit 87/4 connector sleeve |
63H |
| Z7/99 |
Circuit 87 connector sleeve M4e |
54H |
